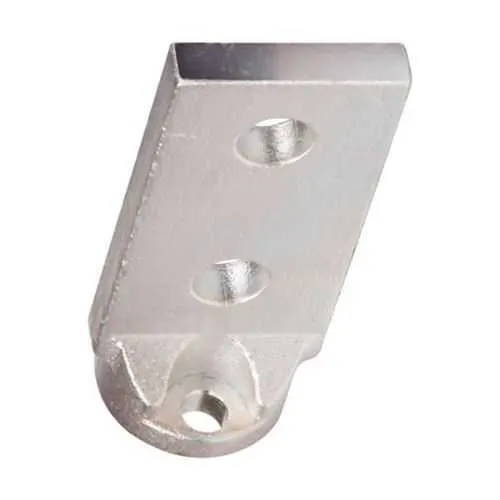

Eaton RFADP3PV40 Adapter Kit - UL Listed, 4000 A RF Frame
Part Number: RFADP3PV40
Quick Summary
Eaton RFADP3PV40 Adapter Kit provides a high-capacity NRX frame interface for modular power protection in medium to large switchgear. This kit simplifies upgrades by delivering a compatible interface between the RF frame and protection devices, reducing commissioning time and field wiring complexity. Designed for reliability, it carries UL Listed certification and supports up to 4000 A uninterrupted current, ensuring safe operation in demanding protection environments. By enabling fixed-mount or cassette installations, it supports flexible layouts and scalable protection schemes. For engineers and procurement teams, this translates to lower total cost of ownership, faster downtime recovery, and consistent performance across Eaton NRX configurations.
Product Information
Extended Description
RFADP3PV40 Eaton: Eaton Series NRX adapter kit, Power Defense ICCB adapter kit, 4000A, Universal interrupt, Three-pole, Power Defense ICCB, RF Frame, Up to 4000A, RFADP3PV40
Product Name
Eaton Series NRX adapter kit
Catalog Number
RFADP3PV40
UPC
786685523415
Product Length/Depth
13.5 in
Product Height
6 in
Product Width
9 in
Product Weight
12.2 lb
Warranty
1 year
Certifications
UL Listed
Catalog Notes
RF frame only. Fixed mount or cassette.
Amperage Rating
4000 A
Frame
RF
Rated uninterrupted current (Iu)
4000 A
Accessories
Adapter kit
Interrupt rating
Universal
Series
Series NRX
Number of poles
Three-pole
Feature: High current capability up to 4000 A Iu. Business Impact: Enables large-scale protection without derating, reducing design constraints and enabling future expansion. Application: Ideal for power defense and switchgear assemblies that demand reliability under peak loads. Feature: RF frame compatibility with Series NRX. Business Impact: Streamlines retrofits and new builds by providing a standard interface, cutting integration time. Application: Suitable for retrofit projects in motor control centers and distribution panels. Feature: Universal interrupt rating. Business Impact: Maintains broad device compatibility, reducing spare-part inventory while ensuring safety margins. Application: Supports diverse protection schemes in critical infrastructure. Feature: Three-pole configuration. Business Impact: Delivers balanced protection across phases, improving fault isolation and system stability. Application: Large three-phase systems in industrial plants. Feature: Adapter kit with fixed mount or cassette options. Business Impact: Installation flexibility lowers field wiring and enables compact layouts, cutting installation time by days in complex panels. Application: New builds and upgrades in compact switchgear rooms. Feature: UL Listed certification. Business Impact: Enhances regulatory compliance and buyer confidence, simplifying procurement audits. Application: Industrial environments requiring certified components in power protection assemblies.
Get a Quick Quote for a Eaton RFADP3PV40
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RFADP3PV40?
Enquire Now
FAQs
The RFADP3PV40 is designed for flexible installation with both fixed-mount and cassette configurations. This versatility supports compact panel layouts and retrofit projects, allowing you to optimize space without sacrificing protection performance. Installation steps align with Eaton RF frame interfaces to minimize wiring complexity and commissioning time.
RFADP3PV40 provides an amperage rating up to 4000 A with a rated uninterrupted current (Iu) of 4000 A. It uses a universal interrupt rating and a three-pole design to support robust protection across large, high-load systems, ensuring safe fault isolation and reliable operation in demanding environments.
Yes. The adapter kit is intended for Eaton Series NRX RF frames used in large switchgear, motor control centers, and power distribution assemblies. It benefits industries with high-current protection needs such as manufacturing, facilities, data centers, and process industries, where uptime and safety are critical.
RFADP3PV40 is UL Listed, confirming adherence to safety standards for electrical protection components. UL Listing provides assurance for industrial procurement, reduces qualification time for compliance audits, and supports safer integration within Eaton NRX protection schemes.
The adapter kit reduces commissioning time through a standardized interface with the RF frame, and its cassette/mount options simplify future upgrades or relocations. These capabilities lower downtime during upgrades, minimize field wiring, and extend equipment life, delivering measurable total cost of ownership savings in large-scale power protection projects.
