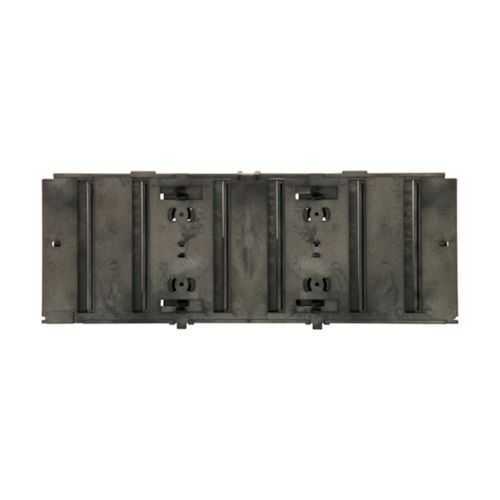

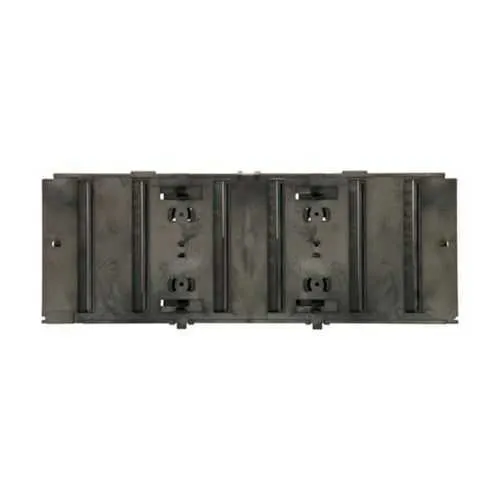

Eaton RFSHTR3P Three-pole RF Frame - UL Listed
Part Number: RFSHTR3P
Quick Summary
RFSHTR3P is a three-pole RF frame accessory from Eaton, designed to integrate with NRX protection and circuit-control assemblies in industrial control panels. Engineers often struggle with mounting RF frame components that fit securely while preserving safe clearances and easy service access. This UL Listed accessory offers a compact, rugged frame that travels with the NRX family, reducing installation steps and part sprawl. It delivers reliable mechanical alignment and compatibility with standard RF frame hardware, helping maintain protection coordination. By streamlining assembly and minimizing downtime, it delivers measurable business value through faster commissioning, lower inventory complexity, and consistent safety performance across panels and machines.
Product Information
Extended Description
RFSHTR3P Eaton: Eaton Power Defense ICCB other accessories, Three-pole, RF Frame
Product Name
Eaton Series NRX other accessories
Catalog Number
RFSHTR3P
UPC
786685522197
Product Length/Depth
18 in
Product Height
8 in
Product Width
6 in
Product Weight
2 lb
Warranty
1 year
Certifications
UL Listed
Catalog Notes
RF frame only.
Frame
RF
Accessories
Other accessories
Series
Series NRX
Number of poles
Three-pole
Feature: Three-pole RF frame design. Business impact: Improves protection coordination and reliability across multi-pole circuits, reducing fault propagation risk. Application: Ideal for NRX-based protection schemes in manufacturing panels. Feature: Standardized dimensions of 18 in length, 8 in height, 6 in width. Business impact: Predictable mounting and enclosure fit minimizes rework and stock diversity. Application: Used in new builds and retrofits for control panels. Feature: Lightweight construction at 2 lb. Business impact: Easier handling and faster installation, lowering labor time in field service and on-site upgrades. Application: Common in medium-to-large control panels where servicing frequent updates is required. Feature: Catalog Notes specify RF frame only. Business impact: Prevents misapplication and ensures correct assembly with RF frame components. Application: Clear integration path within the NRX ecosystem. Feature: UL Listed certification and 1-year warranty. Business impact: Enhances safety compliance and vendor support, reducing risk in regulated environments. Application: Suitable for industrial facilities prioritizing safety and reliability. Feature: Compatibility with NRX series and RF frame accessories. Business impact: Streamlined procurement and consistent installation practices across multiple panels. Application: NRX protection schemes in energy, processing, and manufacturing settings.
Get a Quick Quote for a Eaton RFSHTR3P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RFSHTR3P?
Enquire Now
FAQs
Yes. RFSHTR3P is designed as a Three-pole RF frame accessory specifically for the Eaton NRX protection and circuit-control assemblies, ensuring straightforward integration within NRX-based control panels.
The accessory features a three-pole RF frame with dimensions of 18 inches in length, 8 inches in height, and 6 inches in width, weighing 2 pounds, and carries UL Listed certification for safety compliance.
It is intended for industrial control panels and power distribution assemblies that rely on NRX protection schemes, providing secure mounting, reliable alignment, and compatible RF frame interoperability.
The RFSHTR3P is UL Listed, indicating compliance with recognized electrical safety standards, which helps ensure safer installation, easier regulatory approval, and safer maintenance in industrial environments.
Its 1 year warranty and UL Listed status reduce risk during procurement and maintenance. The standardized RF frame design also cuts spare-part variety, speeds up commissioning, and simplifies panel upgrades, delivering measurable ROI through reduced downtime.
