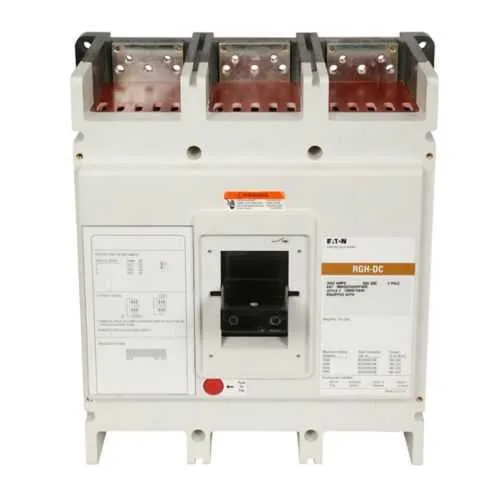

Eaton RGHDC3160FFWE PV Guard MC CB - 1600A, 600 Vac, 3-Pole
Part Number: RGHDC3160FFWE
Quick Summary
The Eaton RGHDC3160FFWE PV Guard molded case circuit breaker protects PV power systems with fixed thermal and magnetic trips. Engineers often struggle with protection coordination, accurate amperage sizing, and reliable DC/AC interface protection in solar installations. These devices typically align with UL/CSA listings and CE marking, with IEC/DC performance standards supporting PV safety. For project teams, this translates to faster compliance, reduced wiring errors, and improved uptime across utility-scale or commercial PV deployments while delivering robust, long-term protection for PV arrays and inverters.
Product Information
Extended Description
RGHDC3160FFWE Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, RG-frame, RG, Fixed thermal and magnetic trips, Three-pole, 1600A, 600 Vac, 250 Vdc, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line/load, Imperial, Vdc, 50/60 Hz
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
RGHDC3160FFWE
UPC
786685931944
Product Length/Depth
9.75 in
Product Height
15.5 in
Product Width
15.5 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Catalog Notes
INCLUDE (6) REAR CONNECTORS
Amperage Rating
1600 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
RG
Protection
100% protected neutral pole
Series
Series G
Terminals
Line and load
Frame
RG
Frequency rating
50 to 60 Hz
Class
Vdc
Mounting hardware
Imperial
Interrupt rating
65 kAIC at 480 Vac 125 kAIC at 240 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - RGHDC3160FFWE
Eaton Specification Sheet - RGHDC3160FFWE
Feature: Fixed thermal and magnetic trips with a three-pole RG frame provide precise overcurrent protection; Business Impact: minimizes nuisance trips and protects critical PV infrastructure, reducing unplanned downtime; Application: ideal for PV arrays and DC bus protection where stable trip characteristics are essential. Feature: 1600 A amperage rating and 600 Vac / 250 Vdc voltage ratings deliver scalable protection for high-current PV feeders; Business Impact: enables single-device protection for large solar installations, reducing panel count and simplifying wiring; Application: main protection for commercial and utility-scale PV systems. Feature: 65 kAIC at 480 Vac and 125 kAIC at 240 Vac interrupt ratings; Business Impact: superior fault-current handling improves system resilience and safety; Application: heavy-duty protection for inverters and combiner boxes in high fault-current environments. Feature: Line and load terminals with imperial mounting hardware; includes rear connectors (catalog note: INCLUDE 6 rear connectors); Business Impact: simplifies field installation and retrofit into existing panels; Application: retrofit and new-build PV protection schemes with quick integration. Feature: Series G, RG frame, three-pole design; Business Impact: standardized, modular protection that aligns with Eaton’s ecosystem, reducing spare parts and training needs; Application: scalable protection across multiple PV subsystem enclosures and service panels.
