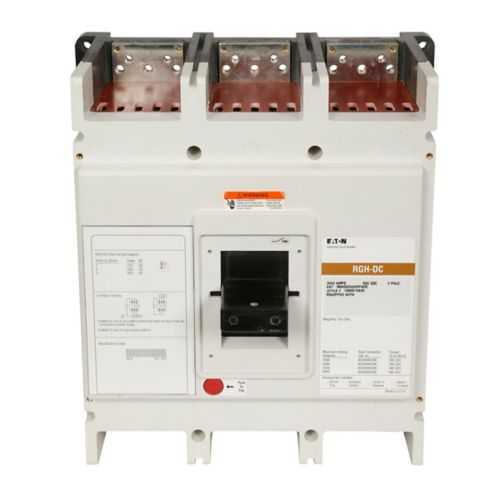

Eaton RGHDC3160FFWM PV Guard MCCB - 125 kAIC @240 Vac
Part Number: RGHDC3160FFWM
Quick Summary
PV Guard molded case circuit breaker by Eaton protects solar DC circuits in PV installations. Engineers managing large solar projects face nuisance tripping and slow fault isolation in high-current arrays. The RG frame unit features a fixed thermal/magnetic trip (T186) and carries 1600 A, 600 Vac and 250 Vdc ratings, with 125 kAIC at 240 Vac and 65 kAIC at 480 Vac. Catalog notes specify six rear connectors for easier installation. With metric mounting and a compact footprint, it supports flexible integration and faster commissioning for utility-scale, commercial, and industrial PV applications.
Product Information
Extended Description
RGHDC3160FFWM Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, RG-frame, RG, Fixed thermal, fixed magnetic trip, Three-pole, 1600A, 600 Vac, 250 Vdc, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, No terminals, Metric, Vdc, 50/60 Hz
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
RGHDC3160FFWM
UPC
786685931876
Product Length/Depth
9.75 in
Product Height
15.5 in
Product Width
15.5 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Catalog Notes
INCLUDE (6) REAR CONNECTORS
Amperage Rating
1600 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
RG
Series
Series G
Terminals
Without terminals
Frame
RG
Frequency rating
50 to 60 Hz
Class
Vdc
Mounting hardware
Metric
Interrupt rating
65 kAIC at 480 Vac 125 kAIC at 240 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - RGHDC3160FFWM
Eaton Specification Sheet - RGHDC3160FFWM
Feature → Business Impact → Application: The PV Guard RG frame delivers a 1600 A amperage rating and voltage robustness up to 600 Vac and 250 Vdc, enabling protection for large solar arrays and mixed AC/DC infrastructure with fewer components and simplified coordination. This translates to improved system availability and reduced downtime during fault events in utility-scale PV farms and commercial rooftops. Feature → Business Impact → Application: The fixed thermal/magnetic trip (T186) provides reliable and predictable fault response, improving safety, minimizing arc risks, and ensuring rapid isolation of faults in high-current environments, essential for grid-tied PV inverters and DC string protection. Feature → Business Impact → Application: High interrupt ratings—65 kAIC at 480 Vac and 125 kAIC at 240 Vac—support strong fault-current withstand in interconnection points, aiding compliance with utility requirements and minimizing damage. Feature → Business Impact → Application: RG frame, three-pole design with metric mounting and six rear connectors simplifies installation in existing enclosures, reduces field modification needs, and accelerates project timelines in new or retrofit PV installations. Feature → Business Impact → Application: Catalog notes specifying rear connectors and a no-terminal default layout reduce wiring errors and installation time, lowering total cost of ownership for maintenance teams and enhancing long-term reliability. Feature → Business Impact → Application: Durable, purpose-built for solar protection, the PV Guard MCCB integrates with Series G hardware and standard MCCB ecosystems, supporting scalable protection strategies across campuses, factories, and solar farms.
Get a Quick Quote for a Eaton RGHDC3160FFWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RGHDC3160FFWM?
Enquire Now
FAQs
The Eaton PV Guard RG-series MCCB is designed for solar PV protection in utility-scale, commercial, and industrial installations. Its 1600 A rating and 600 Vac/250 Vdc capabilities suit both AC distribution and DC protection needs, while its metric mounting and rear connectors simplify integration into standard enclosures and PV inverter rooms.
Key specs include 1600 A amperage rating, 600 Vac/250 Vdc voltage ratings, fixed thermal/magnetic trip (T186), and interrupt ratings of 65 kAIC at 480 Vac and 125 kAIC at 240 Vac. It is a three-pole RG frame device, designed for reliable protection in mixed AC/DC PV systems.
Yes. The device supports 480 Vac operations with 65 kAIC interruption, and it also protects 240 Vdc PV strings, offering 125 kAIC interruption at 240 Vac, making it suitable for common PV system interconnections and grid-tied configurations.
Compliance details are typically region-specific and may include CE, UL/CSA, and applicable PV protection standards. Always verify current certification status with Eaton or your local distributor to ensure alignment with regional electrical codes and project requirements.
The rugged RG frame with high interrupt ratings reduces the risk of overcurrent damage, lowering downtime and replacement costs. Its six rear connectors and metric mounting streamline installation and service, shortening commissioning time and improving overall system availability, which translates to a shorter payback period for PV projects.
