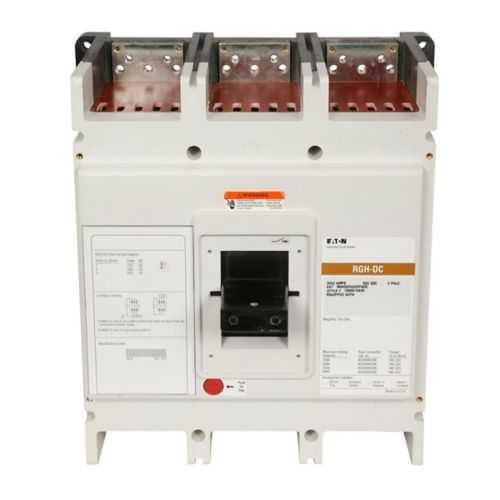

Eaton RGHDC3200FFWE PVGuard Solar MCB - 125 kAIC at 240 Vac
Part Number: RGHDC3200FFWE
Quick Summary
PVGuard solar molded case circuit breaker protects PV arrays and electrical systems in utility-scale and commercial solar installations. Engineers often wrestle with DC protection, wide voltage ratings, and reliable trip performance under PV conditions. Certifications and compliance play a critical role in project acceptance; typical PV protection equipment relies on industry standards such as SIL, CE, and IP ratings to validate safety and reliability. This product aligns with high-current, DC/AC PV protection needs, while offering compatibility and installation advantages to support solar program timelines and total cost of ownership.
Product Information
Extended Description
RGHDC3200FFWE Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, RG-frame, RG, Fixed thermal and magnetic trips, Three-pole, 2000A, 600 Vac, 250 Vdc, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line/load, Imperial, Vdc, 50/60 Hz
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
RGHDC3200FFWE
UPC
786685931883
Product Length/Depth
9.75 in
Product Height
15.5 in
Product Width
15.5 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Catalog Notes
INCLUDE (6) REAR CONNECTORS
Type
Fixed thermal, fixed magnetic trip unit
Amperage Rating
2000 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
RG
Circuit breaker frame type
Complete breaker
Protection
100% protected neutral pole
Terminals
Line and load
Class
Vdc
Interrupt rating
65 kAIC at 480 Vac 125 kAIC at 240 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - RGHDC3200FFWE
Eaton Specification Sheet - RGHDC3200FFWE
Feature → Business Impact → Application. High amperage rating and wide voltage coverage: with a 2000 A rating and voltage options of 600 Vac / 250 Vdc, this MCCB supports large PV inverters and bus bars, reducing the risk of nuisance trips during peak irradiance and enabling safer, scalable solar installations. Application: utility-scale PV integrators and commercial solar projects benefit from fewer protective devices in parallel and simplified protection schemes. DC/AC protection and fixed trip units: the fixed thermal and magnetic trip ensures rapid fault clearance with predictable coordination, delivering improved system reliability and easier UL/NEC compliance for PV systems. Application: string combiner boxes and PV arrays where stable DC protection is essential. Three-pole RG frame with line/load terminals: robust, field-friendly connections and a compact footprint enable faster installation, lower wiring errors, and straightforward retrofit into existing protection schemes. Application: greenfield and brownfield solar facilities seeking reliable protection architecture. 100% protected neutral pole: enhanced fault isolation and safer operation, particularly in multi-string PV configurations. Application: PV farms requiring strict neutral integrity for downstream inverters and protection devices. Includes rear connectors: catalog notes specify six rear connectors to streamline wiring during panel assembly and reduce field labor. Application: installers targeting faster, error-free commissioning. Warranty and support: standard Eaton warranty and policy support help protect long-term ROI and maintenance planning for solar projects.
