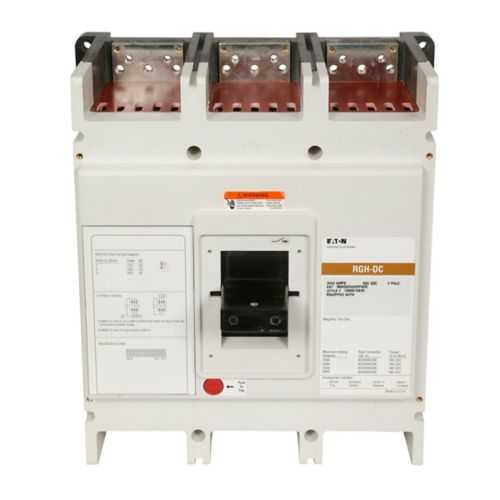

Eaton PVGard RGHDC3200FFWM - PV Solar MCCB 125 kAIC
Part Number: RGHDC3200FFWM
Quick Summary
PVGard PVGuard complete molded case circuit breaker protects solar PV systems with reliable DC and AC protection. Design and procurement teams often contend with nuisance tripping, rapid fault isolation, and mounting in outdoor or harsh environments. For this unit, validate CE marking and IP ratings in your region and check UL/CSA listings via Eaton datasheets to ensure compliance. The 2000 A rating, three-pole frame, and 125 kAIC interrupt capability at 240 Vac deliver robust protection while minimizing downtime. The solution also aligns with installation efficiencies, offering a fixed thermal/magnetic trip and rear-connector compatibility to speed field wiring and reduce total installed cost.
Product Information
Extended Description
RGHDC3200FFWM Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, RG-frame, RG, Fixed thermal, fixed magnetic trip, Three-pole, 2000A, 600 Vac, 250 Vdc, 125 kAIC at 240 Vac, 65 kAIC at 480 Vac, No terminals, Metric, Vdc, 50/60 Hz
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
RGHDC3200FFWM
UPC
786685931890
Product Length/Depth
9.75 in
Product Height
15.5 in
Product Width
15.5 in
Product Weight
0.001 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Catalog Notes
INCLUDE (6) REAR CONNECTORS
Type
Fixed thermal, fixed magnetic trip unit
Amperage Rating
2000 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T186
Circuit breaker type
RG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Class
Vdc
Interrupt rating
125 kAIC at 240 Vac 65 kAIC at 480 Vac
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
PVGard solar circuit breakers technical data sheet
PVGard solar circuit breakers technical data sheet
Feature: DC/AC protection for PV networks with PVGard is proven to isolate faults quickly, reducing arc flash exposure for technicians. Business Impact: Safer field work and fewer costly outages. Application: Solar PV arrays and inverter protection in utility-scale and commercial installations.Feature: 2000 A amperage rating with 125 kAIC interrupt capability at 240 Vac delivers robust protection for large PV strings. Business Impact: Higher fault-current tolerance minimizes system downtime and equipment damage. Application: Large commercial and utility-scale PV systems seeking dependable protection at the DC/AC interface.Feature: 600 Vac / 250 Vdc voltage rating enables dual-use protection for both AC mains and DC PV circuits. Business Impact: Reduces the need for multiple devices and simplifies panel design. Application: Hybrid and grid-ted PV installations requiring consolidated protection.Feature: Without terminals, with catalog notes INCLUDE (6) REAR CONNECTORS, simplifies field wiring and reduces installation time. Business Impact: Lower labor costs and faster commissioning. Application: Retrofit and new construction where rear-connectors are standard.Feature: RG frame, fixed thermal/magnetic trip (T186) supports reliable, deterministic tripping; 3-pole design ensures balanced protection across phases. Business Impact: Enhanced system safety and predictable coordination with upstream protection. Application: PV arrays, combiner boxes, and inverter protection in demanding environments.
Get a Quick Quote for a Eaton RGHDC3200FFWM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RGHDC3200FFWM?
Enquire Now
FAQs
Start by verifying the RG frame fits your enclosure and confirm rear connector availability as noted in the catalog. Mount the breaker with proper mechanical support, connect conductors per the without-terminals specification, and wire the PV DC side and AC side according to the system diagram. Ensure the trip unit is set to the correct protection level (T186) and perform functional tests after installation.
The device is a 3-pole complete molded case circuit breaker rated at 2000 A with a 125 kAIC interrupt rating at 240 Vac and 65 kAIC at 480 Vac. It is rated for 600 Vac and 250 Vdc, uses a fixed thermal/magnetic trip unit (T186), and is listed as RG frame with no terminals (rear connectors are included as catalog notes).
Yes. The breaker is designed for PV applications, offering DC ratings up to 250 Vdc and a high interrupt capability suitable for PV DC bus protection. Its fixed magnetic trip and robust rating help manage fault currents in PV arrays and protect downstream equipment.
Consult the PVGard product aids and technical data sheets from Eaton, including the PVGard solar circuit breakers product aid and the MCCB technical data sheet. These documents provide wiring diagrams, application notes, and compliance guidance for CE/UL/CSA listings where applicable.
PVGard assemblies offer high interrupt ratings, reliable fault isolation, and compatibility with rear connectors that simplify wiring. This reduces downtime, shortens commissioning times, and lowers total installed cost by consolidating protection needs into a single, robust MCCB suitable for diverse PV environments.
