Eaton RGHDCW3300WM PV Guard - UL Listed
Part Number: RGHDCW3300WM
Quick Summary
The Eaton RGHDCW3300WM PV Guard provides solar DC protection for PV installations. Engineers often struggle to find a single device that meets high DC ratings while simplifying installation and maintenance. This unit carries UL Listed, IEC Rated, and CSA Certified marks, ensuring regulatory compliance and field acceptance across North America and international markets. Its 1000 V DC rating and 3000 A capacity address large-scale PV portfolios, while seamless integration with Eaton’s PVGuard ecosystem reduces installation complexity. By combining robust protection with streamlined sourcing and spare-part alignment, it supports lower lifecycle costs and faster project delivery.
Product Information
Extended Description
RGHDCW3300WM Eaton: Eaton Seires R RGHDC 3000A RG-DC 1000VDC CCC Only
Product Name

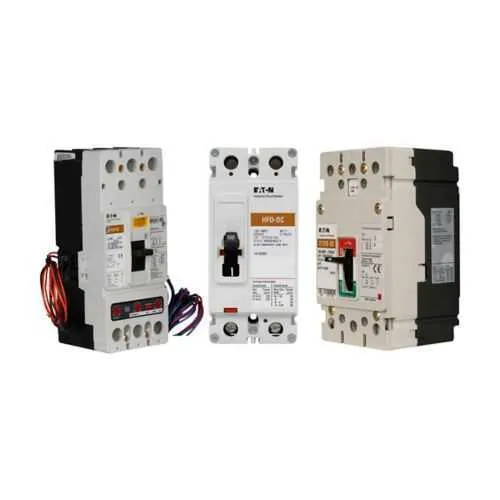

Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
RGHDCW3300WM
UPC
786689023263
Product Length/Depth
9.75 in
Product Height
16 in
Product Width
15.5 in
Product Weight
135 lb
Certifications
UL Listed IEC Rated CSA Certified
Type
PV Guard and Solar
Amperage Rating
3000A
Voltage rating
1000 V
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - RGHDCW3300WM
Eaton Specification Sheet - RGHDCW3300WM
Feature: High amperage rating at 3000 A enables direct protection for large PV arrays, reducing the need for cascading devices. Business Impact: Simplified protection schemes, lower cabinet complexity, and fewer wiring connections. Application: Utility-scale and commercial solar DC bus protection where large current interruption is required. Feature: 1000 V DC voltage rating allows longer DC strings and fewer devices in series, saving space and cost. Business Impact: Improved system efficiency and safer, more compact DC infrastructure. Application: PV string protection in utility-scale PV projects and rooftop solar with high-voltage DC circuits. Feature: Certifications UL Listed, IEC Rated, CSA Certified provide multi-region regulatory compliance. Business Impact: Accelerated permitting, reduced certification effort, and broader market acceptance. Application: Global solar installations needing recognized safety standards. Feature: Durable enclosure with defined dimensions (9.75 in depth, 16 in height, 15.5 in width) supports straightforward integration into standard MCCB panels. Business Impact: Faster installation, predictable retrofit outcomes, and inventory compatibility. Application: New builds and panel upgrades in industrial and commercial electrical rooms. Feature: PVGuard and Solar-oriented design ensures compatibility with Eaton’s protection ecosystem. Business Impact: Streamlined procurement, easier maintenance, and unified fault diagnostics. Application: PVGuard-enabled solar DC protection schemes in mixed electrical systems.
Get a Quick Quote for a Eaton RGHDCW3300WM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RGHDCW3300WM?
Enquire Now
FAQs
The RGHDCW3300WM is a high-capacity PV Guard MCCB designed for up to 1000 V DC and 3000 A. It requires standard MCCB mounting provisions and compatible bus connections within a protective enclosure. Ensure proper derating for ambient temperature and secure cable terminations using manufacturer-recommended torque specs. The unit’s size and weight necessitate appropriate support within a dedicated electrical cabinet.
Key specs are the amperage rating (3000 A) and voltage rating (1000 V DC), along with certifications (UL Listed, IEC Rated, CSA Certified). These determine fault interruption capabilities, system compatibility, and regulatory compliance. For PV plants, confirm inverter and string protection alignment, ensure adequate clearances, and verify compatibility with PVGuard-related protection schemes.
Yes. The RGHDCW3300WM is engineered for large DC protection tasks, offering a 3000 A interrupting capacity and 1000 V DC rating. Its PVGuard orientation supports PV system protection, and its certifications meet utility procurement requirements. When deploying at scale, coordinate with Eaton components for cohesive protection coordination and simplified spares management.
The unit is UL Listed, IEC Rated, and CSA Certified. These certifications validate safety, performance, and reliability across multiple jurisdictions, ease regulatory approvals, and provide assurance to utilities and end users. For projects with cross-border installation or multi-site compliance, these marks help standardize protection practices and reduce certification overhead.
The RGHDCW3300WM’s robust construction and standardized Eaton PVGuard integration support longer service intervals and easier fault diagnostics. By consolidating protection into a single high-capacity device, maintenance costs decline, spare parts converge with existing inventory, and project timelines shorten, delivering a favorable total cost of ownership for solar installations.
