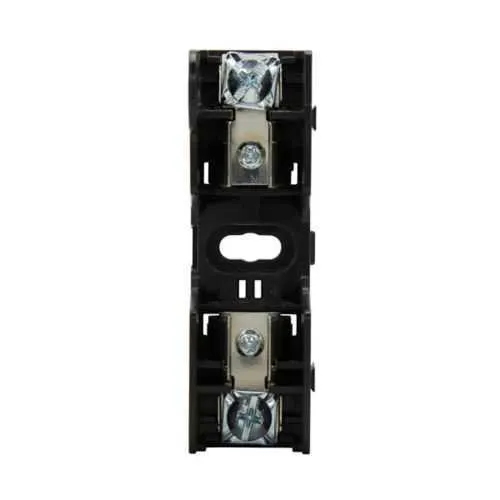

Eaton RM25030-1PR RM Modular Fuse Block - UL Listed
Part Number: RM25030-1PR
Quick Summary
RM25030-1PR is an Eaton modular fuse block for protecting control circuits in industrial panels. Engineers often struggle with dense wiring, limited panel space, and compliance hurdles, making installation lengthy and error-prone. It carries UL Listed, CSA Certified, and CE Marked certifications with RoHS compliance to support safe, regulatory-ready deployments. The unit's compact footprint, 0-30A rating, and 250 V capability enable reliable protection in tight enclosures, while its screw with pressure plate terminals speed wiring and maintenance. By standardizing on the RM25030-1PR, you gain consistent performance across machines, simplified stocking, and easy cross-reference with Eaton's Bussmann RM fuse family.
Product Information
Extended Description
RM25030-1PR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Single-pole, Class R, Screw with pressure plate, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-1PR
UPC
051712511247
Product Length/Depth
3.15 in
Product Height
1.85 in
Product Width
0.95 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
250 V
Number of Poles
Single-pole
Class
Class R
Connection
Screw with pressure plate
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-1PR
Feature: 0-30A amperage rating, 250V voltage rating, single-pole Class R design with screw and pressure plate termination. Business Impact: Provides precise protection while minimizing wiring looseness and installation time, reducing field service calls. Application: Ideal for industrial control panels and power distribution in machine enclosures. Feature: RoHS Compliant and CE Marked with UL Listed and CSA Certified status. Business Impact: Ensures regulatory compliance across global markets, simplifying audits and end-user acceptance. Application: Suitable for equipment destined for global deployments and controlled environments. Feature: Compact footprint—3.15 in length, 1.85 in height, 0.95 in width—weight 0.8 lb. Business Impact: Saves valuable panel space, enables higher pack density, and lowers cabinet enclosure costs. Application: Useful in compact control panels and modular assemblies. Feature: Screw with pressure plate termination. Business Impact: Delivers reliable terminal connections with reduced risk of loosening under vibration, cutting maintenance time. Application: Critical in vibration-prone machinery and robotic systems. Feature: Compatibility with Bussmann RM series and Eaton documentation. Business Impact: Streamlines sourcing and cross-referencing with existing components, speeding procurement and design validation. Application: Facilitates rapid design wins and consistent field replacements.
Get a Quick Quote for a Eaton RM25030-1PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-1PR?
Enquire Now
FAQs
The RM25030-1PR supports a 0–30 A amperage rating and a 250 V voltage rating, configured as a single-pole Class R fuse block with a screw and pressure plate termination for secure connections.
Yes. The RM25030-1PR is designed to work with Eaton Bussmann RM modular fuse blocks and uses the Class R protection scheme, with screw-termination for reliable field wiring.
Ideal for industrial control panels, motor starters, and compact power-distribution assemblies where space is limited and regulatory compliance is required.
The unit is RoHS Compliant and CE Marked, with UL Listed and CSA Certified status, supporting regulatory compliance across multiple regions.
Its compact footprint and secure screw-with-pressure-plate terminals reduce wiring faults and maintenance time, while compatibility with the RM series streamlines sourcing and reduces panel downtime.
