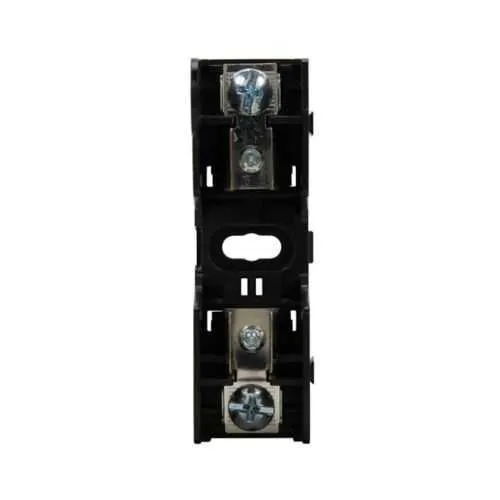

Eaton RM25030-1SR Modular Fuse Block - Class R UL Listed
Part Number: RM25030-1SR
Quick Summary
RM25030-1SR modular fuse block delivers reliable, field-ready protection for control panels and small-power feeders. Engineers often struggle with mounting space, wiring complexity, and keeping pace with evolving safety standards in modern controls. This unit offers RoHS compliant, CE-marked and UL-listed qualifications (CSA Certified as applicable), supporting global deployments. With a compact footprint, screw-terminal wiring, and a 0-30A, 250V rating, it enables scalable protection in dense panel layouts while reducing maintenance downtime and parts variety. Ideal for automation cabinets, machine enclosures, and control circuits that demand dependable, standards-aligned fuse protection.
Product Information
Extended Description
RM25030-1SR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Single-pole, Class R, Screw, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-1SR
UPC
051712511216
Product Length/Depth
3.15 in
Product Height
1.99 in
Product Width
1.1 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
250 V
Number of Poles
Single-pole
Class
Class R
Connection
Screw
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-1SR
Feature: 0-30A amperage rating and 250V voltage rating. Business Impact: Precise protection for control circuits prevents nuisance blows and equipment damage, reducing unplanned downtime and improving overall line efficiency. Application: Suitable for small-control panel feeders in automation and process industries. Feature: Class R, single-pole design. Business Impact: Industry-standard fuse class compatibility simplifies part selection and stocking, lowering spare parts costs while ensuring predictable fusing behavior. Application: Machinery start-up circuits and single-phase protection in electrical panels. Feature: Screw-terminal connections. Business Impact: Fast, reliable field wiring with reduced torque errors and solid vibration resistance, cutting installation time by minutes per panel. Application: Retrofit and new-build control enclosures where durable, serviceable terminations are critical. Feature: RoHS Compliant and CE Marked; UL Listed; CSA Certified. Business Impact: Streamlined regulatory compliance for global installations, enabling faster audits and smoother commissioning. Application: Panel builds for international equipment deployments and safety-critical systems. Feature: Compact dimensions (3.15 in L x 1.99 in H x 1.1 in W) and light weight (0.8 lb). Business Impact: Dense panel layouts and portable servicing without sacrificing protection reliability. Application: Space-constrained control cabinets and modular protection schemes in industrial automation.
Get a Quick Quote for a Eaton RM25030-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-1SR?
Enquire Now
FAQs
The RM25030-1SR uses screw-terminal connections designed for quick, reliable field wiring. With a single-pole configuration and an amperage range of 0-30A at 250V, it supports standard Bussmann RM-series fuses in many control panel applications. For installations demanding vibration resistance, ensure proper screw torque and secure panel mounting to maintain continuity.
The RM25030-1SR features RoHS compliance and CE marking, with UL Listed and CSA Certified certifications noted by Eaton. These approvals support international deployment, simplify audits, and help ensure safety and reliability in automation panels across diverse regulatory environments.
Yes. With dimensions of 3.15 in length, 1.99 in height, and 1.1 in width, plus a weight of 0.8 lb, the RM25030-1SR is designed for dense panel layouts. Its modular design and screw terminals facilitate straightforward integration, maintenance, and fuse replacement in compact control cabinets.
Ideal for control circuits in automation equipment, machine enclosures, and small-power feeders where reliable overcurrent protection is essential. The Class R, 0-30A, 250V ratings support standard fuse protection schemes within 24V to 250V systems, aligning with common industrial control architectures and safety requirements.
By standardizing on a single modular fuse block that is UL listed, RoHS CE compliant, and easy to wire, you reduce spare parts inventory, cut installation time, and minimize maintenance downtime. Its compact form factor also enables more efficient space utilization, contributing to lower enclosure costs and faster commissioning.
