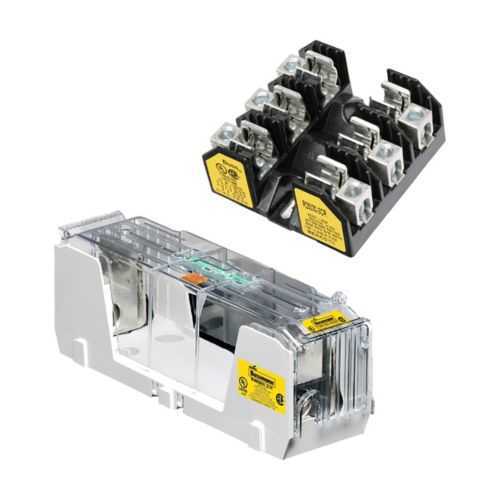

Eaton RM25030-2CHR Modular Fuse Block - 200 kA RMS
Part Number: RM25030-2CHR
Quick Summary
The Eaton RM25030-2CHR modular fuse block provides overcurrent protection for 2-pole 250 V circuits in panel and DIN rail installations. Designers struggle to fit robust protection in tight panels without compromising safety, accessibility, or serviceability. It carries RoHS compliance and PED 97/23 EC certification, plus a 200 kA RMS withstand and 200 kAIC interrupt rating for high fault current protection. In practice, this translates to faster installation, safer terminations, and predictable performance across machine builds, control panels, and field upgrades. Secondary features like box lugs with hex screws, DIN-rail mounting, and compatibility with CVR(I)-RH-25030 accessories further reduce wiring time and maintenance costs.
Product Information
Extended Description
RM25030-2CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box lugs with hex screws, 30 A, 2P, 200 kA RMS symm, 120°C, 50 lb-inches max, Class R, CVR(I)-RH-25030, Black, 200 kAIC, 75 °C, DIN rail, Panel, 250 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-2CHR
UPC
051712682909
Product Length/Depth
3.2 in
Product Height
2 in
Product Width
2 in
Product Weight
0.225625 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
250 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25030
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-2CHR
Two-pole design and 30 A amperage rating align with typical control cabinet protection schemes, delivering reliable overcurrent protection for 250 V circuits. This translates to reduced risk of downstream equipment damage and lower downtime, enabling more predictable machine performance in automation workflows and conveyor systems. The Class R fuse type supports standard, economical replacement while maintaining high fault current protection across industrial loads. With 200 kA RMS impulse withstand and 200 kAIC interrupt rating, the RM25030-2CHR stands up to demanding factory floors and short-circuit events, improving safety margins and regulatory confidence for panel builders and systems integrators. Box lug connections with hex screws provide secure terminations, minimize loose wiring, and simplify field maintenance, resulting in quicker commissioning and fewer warranty callbacks in high-volume installations. DIN rail and panel mounting options offer installation flexibility, letting engineers consolidate protection modules alongside relays and controllers without rearranging enclosures. The ability to use CVR(I)-RH-25030 covers and accessories streamlines future hard-wiring upgrades, reducing total lifecycle costs and spare-part inventories. RoHS compliance and PED certification further ensure regulatory alignment for European equipment builds, while the conductor rating of 75 °C and wire size range of #2-14 AWG support versatile wiring schemes across control and power circuits.
Get a Quick Quote for a Eaton RM25030-2CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-2CHR?
Enquire Now
FAQs
The RM25030-2CHR is designed for convenient DIN rail and panel mounting. Terminate wires with box lugs using hex screws to ensure secure, vibration-resistant connections. Maintain a torque of up to 50 lb-in on lugs and use wire sizes #2-14 AWG. Verify 250 V rating and two-pole configuration before energizing the circuit, and ensure clearance for heat dissipation in crowded panels.
With a 30 A amperage rating, 250 V voltage rating, and 200 kA RMS symmetrical impulse withstand, plus 200 kAIC interrupt rating, this fuse block provides robust protection against short circuits and fault currents typical in automation and motor-control applications. These ratings translate to predictable disconnection behavior and minimized risk of collateral damage in machine controls.
Yes. The device supports 75 °C conductor rating and 120 °C operating temperature, enabling reliable performance in many factory environments. It is RoHS compliant and PED certified, which helps meet European regulatory requirements for machinery. This makes it suitable for control cabinets, panel boards, and automated machinery subject to rigorous safety and environmental standards.
The RM25030-2CHR carries RoHS compliance and PED 97/23 EC certification, ensuring restricted hazardous substances and compliance with European pressure equipment directives. While not a substitute for all regional standards, these certifications support regulatory alignment for many manufacturing facilities and help streamline approvals during machine builds.
The modular RM25030-2CHR reduces wiring time through box lug terminations and straightforward DIN rail installation, lowering commissioning time and labor costs. Its high fault-current ratings minimize downtime risk from short circuits, and compatibility with CVR(I)-RH-25030 accessories supports scalable protection coverage, reducing spare-parts inventory and extending the service life of control panels.
