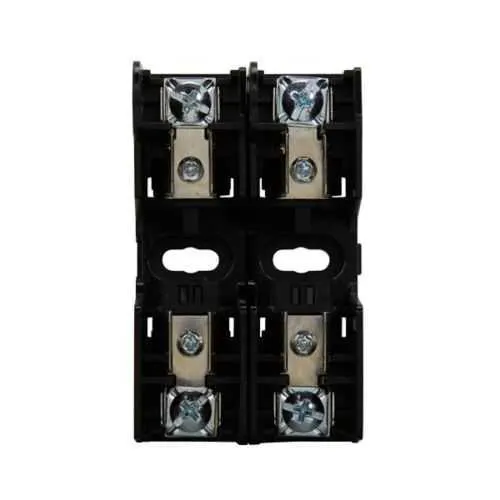

Eaton RM25030-2PR RM modular fuse block - UL Listed
Part Number: RM25030-2PR
Quick Summary
The Eaton RM25030-2PR RM modular fuse block protects electrical control panels from overcurrent events. This design helps minimize nuisance trips and downtime by providing reliable, field-replaceable protection for critical control circuits. UL Listed, CSA Certified, and RoHS Compliant with CE Marking, the RM25030-2PR meets rigorous industry standards for safety and environmental responsibility. For OEMs and panel builders, its compact two-pole Class R construction streamlines installation and maintenance while delivering consistent protection across applications such as automation panels and motor control centers.
Product Information
Extended Description
RM25030-2PR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Two-pole, Class R, Screw with pressure plate, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-2PR
UPC
051712511254
Product Length/Depth
3.17 in
Product Height
1.98 in
Product Width
1.97 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
250 V
Number of Poles
Two-pole
Class
Class R
Connection
Screw with pressure plate
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-2PR
The RM25030-2PR reduces wiring complexity with a compact two-pole layout, enabling a smaller panel footprint and faster assembly. This translates to lower labor costs and improved engineering efficiency in high-mix, low-volume production environments. The screw with pressure plate termination provides a secure, vibration-resistant connection, minimizing terminal looseness and associated fault trips in harsh industrial environments. Class R classification ensures compatibility with standard Bussmann RM series fuses, supporting easy interchangeability during service and stocking. A 0-30 A amperage range at 250 V supports a broad scope of control circuits from small PLC inputs to medium-duty drive protections, improving overall system reliability. RoHS compliance and CE marking simplify regulatory acceptance across global facilities, while UL Listed and CSA Certified marks reinforce supplier confidence and customer trust. The unit’s modest 3.17 in length, 1.98 in height, and 1.97 in width, paired with a 0.17 lb weight, facilitate streamlined installation in constrained panels and on slim DIN rail configurations, aligning with modern automation designs. These features collectively reduce downtime, simplify maintenance, and improve total cost of ownership across manufacturing lines and OEM assemblies.
Get a Quick Quote for a Eaton RM25030-2PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-2PR?
Enquire Now
FAQs
For installation, plan a two-pole layout with screw with pressure plate terminations to ensure secure connections. The compact dimensions (3.17 in L, 1.98 in H, 1.97 in W) fit tight panels, and mounting near the control circuitry reduces wiring runs. Verify 250 V rating and 0-30 A range for your circuit, and ensure compliance with UL and CSA requirements during panel assembly.
The device supports an amperage range of 0-30 A and a voltage rating of 250 V. It is a two-pole, Class R fuse block designed to accept Bussmann RM series fuses, with screw termination and pressure plate for secure terminations. This combination delivers reliable overcurrent protection for control panels and automation equipment.
Yes. It is designed for industrial automation and OEM panel integration, offering compact sizing, robust termination, and a compatible Class R fuse class. Its RoHS compliance, UL Listed and CSA Certified marks, along with a 0-30 A rating at 250 V, make it appropriate for motor drives, PLC-controlled equipment, and other control circuits in harsh plant environments.
The RM25030-2PR is UL Listed, CSA Certified, RoHS Compliant, and CE Marked. These certifications validate safety, electrical performance, and environmental responsibility, simplifying procurement across regulated industries and ensuring consistent supplier quality for global installations and maintenance programs.
The fuse block reduces downtime via secure terminations that resist vibration, lowers maintenance labor with quick replacement, and minimizes wiring complexity in compact panels. Compatibility with standard RM fuses further reduces parts stocking diversity. Together, these factors translate to lower lifecycle costs and faster ROI in automation projects and factory upgrades.
