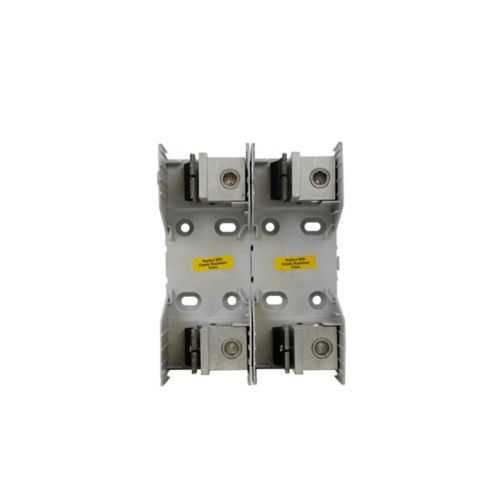

Eaton RM25030-3PR modular fuse block - Class R
Part Number: RM25030-3PR
Quick Summary
The RM25030-3PR modular fuse block from Eaton provides reliable 0–30 A protection for three-pole circuits in electrical panels. In the field, engineers often contend with secure terminations, vibration, and limited cabinet space that complicate maintenance. UL Listed and CSA Certified for safety, with RoHS Compliant and CE Marked for global compliance, this fuse block meets stringent regulatory requirements. Class R protection with a screw termination and pressure plate supports fast maintenance and dependable fault isolation, while the 250 V rating aligns with standard industrial power distribution. Its compact footprint—9.6 in L, 7 in W, 5 in H—and 4.48 lb weight simplify panel design and procurement for modular electrical protection.
Product Information
Extended Description
RM25030-3PR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Three-pole, Class R, Screw with pressure plate, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-3PR
UPC
051712511261
Product Length/Depth
9.6 in
Product Height
5 in
Product Width
7 in
Product Weight
4.48 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
250 V
Number of Poles
Three-pole
Class
Class R
Connection
Screw with pressure plate
RM25030-3PR~Fuse Block, Class R, 250V 30A, 3 Pole
RM25030-3PR~Fuse Block, Class R, 250V 30A, 3 Pole
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-3PR
The RM25030-3PR delivers 0–30 A protection in a three-pole Class R fuse block rated for 250 V. This enables precise overcurrent protection and selective coordination, reducing nuisance trips and unplanned downtime in busy control panels. In practice, technicians install the unit in motor control centers and industrial panelboards where reliable protection for three-phase circuits is essential. With a screw termination using a pressure plate, the RM25030-3PR provides a secure, vibration-resistant connection. This translates to fewer loose terminations during high-duty cycles and easier field maintenance, saving service time and reducing rework. The design supports fast, confident installation in standard control cabinets. Compliance is built in: UL Listed, CSA Certified, RoHS Compliant, and CE Marked support global deployment and audit readiness. This reduces vendor risk, speeds regulatory approvals, and simplifies cross-border procurement. Its compact footprint—9.6 in length, 7 in width, and 5 in height, with a 4.48 lb weight—fits tightly in crowded panels and allows straightforward mounting. The RM family compatibility ensures seamless integration with RM accessories and replacement fuses, aiding planning and stocking for ongoing maintenance. As part of the Eaton Bussmann RM series, RM25030-3PR offers consistent performance, easy interchangeability with similar Class R protection blocks, and reliable sourcing for new builds or upgrades in industrial automation environments.
Get a Quick Quote for a Eaton RM25030-3PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-3PR?
Enquire Now
FAQs
For installation, ensure a secure screw with pressure plate termination to withstand vibration in industrial panels. Check that the three-pole arrangement aligns with your panelboard or motor control center wiring. Verify clearance around the module and torque specifications per Eaton datasheets to prevent overheating and ensure reliable fault isolation.
The RM25030-3PR is rated for 0–30 A and 250 V in a three-pole Class R format. It is UL Listed and CSA Certified, with RoHS compliance and CE marking, ensuring broad compatibility with standard industrial systems and regulatory alignment for global deployments.
Yes. Its three-pole Class R design supports motor protection schemes in panelboards and motor control centers. The screw termination with pressure plate provides secure connections essential for high-duty motor applications, while the 250 V rating matches typical industrial power distribution scenarios.
The RM25030-3PR carries UL Listed and CSA Certified marks, plus RoHS compliance and CE Marking. These certifications help meet safety and environmental requirements, simplify audits, and enable smoother cross-border procurement for global projects.
The RM25030-3PR offers a 0–30 A, 250 V, three-pole Class R design with screw termination and a pressure plate, delivering compact, reliable protection. Compared with other RM blocks, it emphasizes robust three-phase protection in a compact footprint while maintaining broad compliance and standardization within the RM family.
