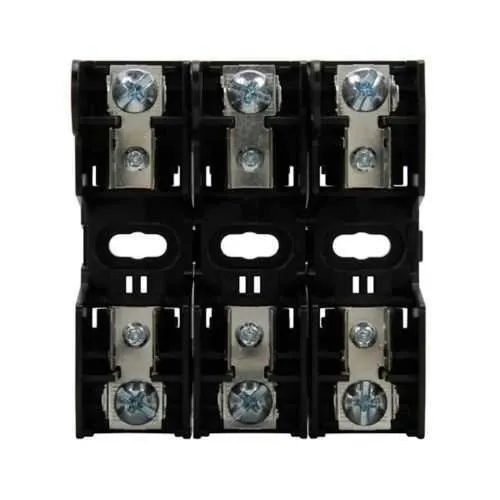

Eaton RM25030-3QR Fuse Block - Class R, UL Listed
Part Number: RM25030-3QR
Quick Summary
The Eaton RM25030-3QR fuse block provides modular overcurrent protection for three-pole power circuits in industrial control panels. Design teams frequently wrestle with space constraints, wiring complexity, and the challenge of maintaining compliance across multiple regions. This unit carries UL Listed, CSA Certified, and CE Marked certifications, with RoHS compliance, helping teams meet stringent regulatory requirements while reducing project risk. Quick-connect terminals streamline wiring, while the Class R protection and a 0–30 A rating deliver reliable, replaceable protection without over-engineering the panel. The compact modular design supports scalable protection blocks in growing systems, delivering efficiency, easier maintenance, and a lower total cost of ownership over time.
Product Information
Extended Description
RM25030-3QR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Three-pole, Class R, Quick connect, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25030-3QR
UPC
051712511322
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
250 V
Number of Poles
Three-pole
Class
Class R
Connection
Quick connect
RM25030-3QR~Fuse Block, Class R, 250V 30A, 3 Pole
RM25030-3QR~Fuse Block, Class R, 250V 30A, 3 Pole
Bussmann series Fuseology
Eaton Specification Sheet - RM25030-3QR
Feature: Three-pole RM25030-3QR with Class R fuse technology and quick-connect terminals. Business impact: Delivers selective protection with fast, low-wiring effort installation, reducing panel assembly time. Application: Ideal for machine-control panels, conveyors, and automation cabinets where reliable protection and space efficiency are critical. Feature: 0-30A current rating at 250V. Business impact: Supports common industrial loads while maintaining safety margins and coordination with upstream devices. Application: Suitable for general-purpose AC controls, motor starters, and power distribution blocks. Feature: RoHS compliance, CE marking, UL Listed and CSA Certified. Business impact: Ensures global regulatory readiness and risk reduction. Application: Facilitates international deployments and supplier compliance programs. Feature: Quick-connect connection. Business impact: Reduces wiring time and wiring errors; simpler field maintenance and replacements. Application: OEM builds and service-led panel refurbishments. Feature: Modular fuse block design enabling scalable protection. Business impact: Allows easy expansion or reconfiguration without rework, lowering total ownership cost. Application: Expanding industrial automation lines. Feature: Compact rugged design for tight enclosures. Business impact: Maximizes panel density while maintaining reliability. Application: Panel builders in space-constrained electrical rooms.
Get a Quick Quote for a Eaton RM25030-3QR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25030-3QR?
Enquire Now
FAQs
Begin by confirming system voltage and current requirements, then mount the RM25030-3QR in the panel chassis. Connect conductors to the quick-connect terminals, ensure alignment with three-pole configuration, and verify Class R fuse compatibility. Close the panel and perform a continuity check before commissioning.
The RM25030-3QR is rated for 0–30 A with a voltage rating of 250 V. It uses three-pole Class R protection and employs quick-connect terminations to simplify wiring and reduce installation time.
Yes. The RM25030-3QR is UL Listed and CSA Certified, with CE marking and RoHS compliance, providing broad regulatory acceptance for global panel installations.
This three-pole Class R fuse block is ideal for machine control panels, automation cabinets, and general power distribution blocks in industrial settings, offering reliable protection with fast wiring and scalable deployment.
The quick-connect terminals simplify replacements and reduces maintenance downtime. The modular design supports scalable protection as systems grow, lowering total ownership costs and improving panel uptime in automation environments.
