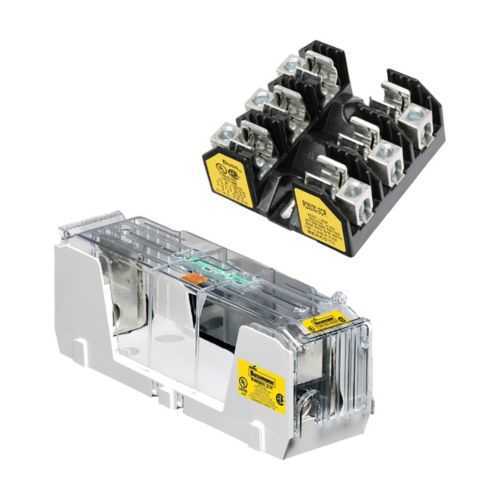

Eaton RM25060-1CHR RM modular fuse block - 200 kA RMS
Part Number: RM25060-1CHR
Quick Summary
Eaton RM25060-1CHR RM modular fuse block provides reliable overcurrent protection for industrial control panels and machine assemblies. It is designed to simplify wiring in confined spaces and speed up panel assembly. Engineers often face downtime from fuses that don’t tolerate surge events or miswiring. This RM block meets RoHS compliance and PED requirements while delivering high ratings for surges (200 kA RMS) and interrupt capacity (200 kAIC). Its DIN rail and panel mounting, combined with box-lug connections and hex screws, streamline installation, improve traceability, and reduce maintenance costs over the lifetime of the equipment.
Product Information
Extended Description
RM25060-1CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box lugs with hex screws, 60 A, 1P, 200 kA RMS symm, 120°C, 50 lb-in max, Class R, CVR(I)-RH-25060, Black, 200 kAIC, 75 °C, DIN rail, Panel, 250 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25060-1CHR
UPC
051712620833
Product Length/Depth
1.3 in
Product Height
4.2 in
Product Width
1.3 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
250 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
RM25060-1CHR~FUSE BLK, R 250V 60A 1P
RM25060-1CHR~FUSE BLK, R 250V 60A 1P
Bussmann series Fuseology
Eaton Specification Sheet - RM25060-1CHR
60 A, 250 V rating with a Class R fuse type provides precise overcurrent protection for single-pole circuits. This ensures predictable fuse operation and minimizes nuisance blows that disrupt production. It is well-suited for DIN-rail mounted control panels and compact machine feeders in factory automation. High surge and interrupt ratings (200 kA RMS and 200 kAIC) protect equipment from short, high-energy faults. The business impact is longer equipment life and fewer component replacements, reducing maintenance costs. In practice, use in power feeds and motor control centers where surge environments are common. Box lug termination with hex screws accepts #2-14 AWG conductors, both solid and stranded. This simplifies field wiring, improves reliability through secure, vibration-resistant connections, and speeds up panel builds. Installation is faster for panel builders and reduces wiring errors in complex control panels. Mounting on DIN rails or panels supports flexible installation in space-constrained enclosures. Conductors rated up to 75°C and an operating range to 120°C enable use in challenging environments without overheating. Compliance and documentation streamline regulatory approvals and traceability. RoHS compliant and PED certified across European markets support regulated industries. Accessories like CVR(I)-RH-25060 expand protective coverage, and Eaton’s specification sheets provide verified data for procurement and maintenance planning.
