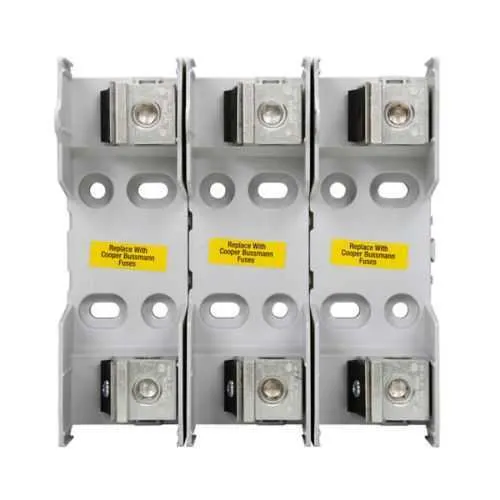

Eaton RM25200-3CR Fuse Block Class R, 3-Pole 250V RoHS/CE
Part Number: RM25200-3CR
Quick Summary
The Eaton RM25200-3CR fuse block is a modular protection device for reliable power distribution in industrial control panels. In dense electrical assemblies, space constraints, wiring complexity, and compliance timelines can slow projects and increase risk. UL Listed, CSA Certified, and RoHS-compliant CE marking ensure safety and global market access. As a Class R, three-pole unit rated 110-200 A at 250 V with knife-blade terminations, it enables scalable protection without sacrificing reliability. The RM25200-3CR streamlines procurement by aligning with the Eaton Bussmann RM modular fuse family, delivering a consistent, cost-efficient solution for panel builders and maintenance teams.
Product Information
Extended Description
RM25200-3CR Eaton: Eaton Bussmann Series RM modular fuse block, CR, 110-200 A, Three-pole, Class R, Knife blade end x knife blade end, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25200-3CR
UPC
051712387354
Product Length/Depth
8 in
Product Height
3.73 in
Product Width
8 in
Product Weight
2.58 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Voltage rating
250 V
Number of Poles
Three-pole
Class
Class R
Connection
Knife blade end x knife blade end
Special features
CR
RM25200-3CR~200 amp class R fuse holder 250V - 3 pol
RM25200-3CR~200 amp class R fuse holder 250V - 3 pol
Bussmann series Fuseology
Eaton Specification Sheet - RM25200-3CR
Feature: Modular Class R fuse block design. Benefit: Simplifies panel protection strategy and enables easy expansion or reconfiguration as systems evolve, reducing downtime during upgrades. Application: Industrial control panels requiring scalable overcurrent protection. Feature: Amperage range 110–200 A at 250 V. Benefit: Provides robust protection for high‑current loads while preventing nuisance tripping in motor drives and feeders. Application: Medium‑to‑large electrical feeders and 3‑phase motor circuits. Feature: Three-pole configuration with knife blade end connections. Benefit: Fast, secure wiring with solid contact resistance and reduced torque on terminals, improving long‑term reliability. Application: 3‑phase power distribution in compact enclosures. Feature: Certifications and compliance (UL Listed, CSA Certified, RoHS/CE). Benefit: Eases global deployment, regulatory approvals, and environmental compliance, reducing supply-chain risk. Application: Global manufacturing environments with strict regulatory requirements. Feature: Physical footprint and weight (8 in L, 8 in W, 3.73 in H; ~2.58 lb). Benefit: Predictable fit in compact panels and ease of handling during installation and service. Application: Panel modernization projects where space is at a premium. Feature: Compatibility with Bussmann RM modular fuse holders. Benefit: Streamlined spares management and a cohesive protection strategy across devices. Application: Standardized electrical protection across multiple panels and lines.
Get a Quick Quote for a Eaton RM25200-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25200-3CR?
Enquire Now
FAQs
Install the RM25200-3CR by aligning the three poles with the corresponding bus and securely seating the knife blade ends into the terminal interfaces. Ensure the panel envelope supports 250 V rated components and that the circuit is de‑energized during installation. Use appropriate locking hardware and verify conductor torque per Eaton guidelines to maintain proper contact integrity.
Rated for 110–200 A at 250 V, the RM25200-3CR is a three‑pole Class R fuse block. It is RoHS compliant and CE marked, UL Listed, and CSA Certified. It is designed for industrial control panel use, with standard three‑phase protection and knife blade terminations suitable for rugged wiring environments.
Yes. The RM25200-3CR is part of the Eaton Bussmann RM modular fuse family, engineered for compatibility with RM style fuses and compatible enclosures. This alignment simplifies spare parts management, reduces stocking complexity, and supports consistent protection schemes across multiple panels.
The device carries UL Listed and CSA Certified markings and is RoHS compliant with CE labeling. This trio ensures domestic and international safety approvals, environmental compliance, and broader market access, helping you meet regulatory requirements for product submissions and customer specifications.
ROI is driven by faster installation, reduced wiring errors due to knife blade terminations, and lower spare parts inventory thanks to a standardized protection solution. The three‑pole Class R design also minimizes downtime from faults and simplifies future expansions, delivering faster project timelines and better total cost of ownership.
