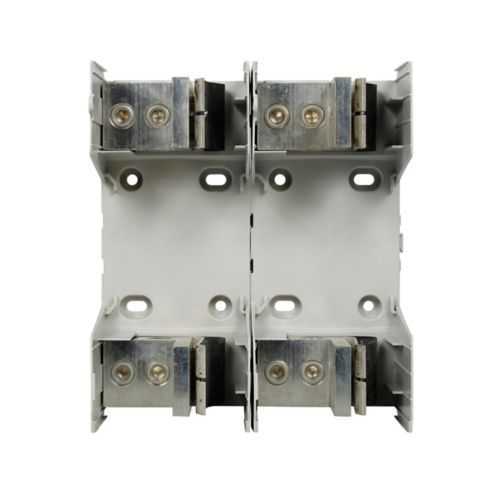

Eaton RM25600-2CR Modular Fuse Block - Class R UL Listed
Part Number: RM25600-2CR
Quick Summary
The Eaton RM25600-2CR modular fuse block provides reliable overcurrent protection for 2-pole circuits in industrial power distribution. In demanding panels, improper fuse sizing or slow replacement can lead to costly downtime and safety risks. It carries UL Listed and CSA Certified marks, and RoHS/CE compliance to support regulatory alignment across global facilities. Designed for compatibility with RM-series enclosures and knife blade end connections, this unit delivers scalable protection with fast, secure installation, helping streamline maintenance and reduce total cost of ownership.
Product Information
Extended Description
RM25600-2CR Eaton: Eaton Bussmann Series RM modular fuse block, CR, 450-600 A, Two-pole, Class R, Knife blade end x knife blade end, 250 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM25600-2CR
UPC
051712391047
Product Length/Depth
11.25 in
Product Height
6 in
Product Width
9.75 in
Product Weight
8.18 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
450-600A
Voltage rating
250 V
Number of Poles
Two-pole
Class
Class R
Connection
Knife blade end x knife blade end
Special features
CR
RM25600-2CR~600 amp class R fuse holder 250V -2 pole
RM25600-2CR~600 amp class R fuse holder 250V -2 pole
Bussmann series Fuseology
Eaton Specification Sheet - RM25600-2CR
Feature: 450-600A amperage rating with a 250V voltage rating. Benefit: Robust protection for high-current feeders and motor circuits, reducing the chance of nuisance trips and limiting downtime. Application: Suitable for industrial power distribution where large loads demand dependable, fast-acting protection in two-pole configurations. Feature: Class R fuse block construction with knife blade end x knife blade end connections. Benefit: Quick, secure field replacement and simplified wiring, cutting maintenance time. Application: Control panels and motor control centers where rapid service is essential. Feature: RoHS Compliant and CE Marked with UL Listed and CSA Certified certifications. Benefit: Ensures regulatory compliance and product safety across international facilities, easing procurement and audit processes. Application: Global deployments in automotive, packaging, and process industries. Feature: Physical footprint and weight (11.25 in L, 6 in H, 9.75 in W, 8.18 lb). Benefit: Predictable panel planning and installation, aiding enclosure design and rack space management. Application: Retrofit projects and new builds with space-constrained layouts. Feature: 2-pole design with Class R designation for reliable protection in demanding environments. Benefit: Consistent performance in high-energy applications, enhancing system reliability and uptime. Application: Industrial power distribution and protection schemes requiring robust fault isolation.
Get a Quick Quote for a Eaton RM25600-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM25600-2CR?
Enquire Now
FAQs
Begin by verifying panel space and mounting the fuse block in the designated RM-series enclosure location. Align and secure the two-pole module, then connect the knife blade end terminals to the corresponding bus or fuse holder harness. Ensure proper seating, inspect for clearance, and reference the RoHS/CE marked product standards. This design supports fast field replacements with minimal wiring disruption.
Yes. Rated for 450-600A at 250V, the RM25600-2CR provides solid protection for large motor feeders and related drives. Its Class R fuse block construction supports safe fault isolation, while UL Listed and CSA Certified markings confirm conformance to recognized electrical safety standards, making it a reliable choice for motor control centers and heavy- loads panels.
The RM25600-2CR carries UL Listed and CSA Certified marks, with RoHS compliance and CE marking. These certifications indicate adherence to safety, environmental, and regulatory requirements, facilitating easier cross-border procurement and reducing compliance risk for global manufacturing and distribution facilities.
The unit measures 11.25 inches in length, 6 inches in height, and 9.75 inches in width, with a weight of 8.18 pounds. This compact footprint simplifies enclosure planning and allows predictable layout in multi-slot panels. When configuring space, account for connection clearances and service accessibility for efficient maintenance.
The modular, two-pole design with knife blade end connections enables rapid fuse replacement with minimal wiring handling. Its robust amperage range and standard compliance reduce service time during faults, while UL CSA RoHS CE certifications support safe, compliant operation across plants. Overall, this translates to shorter downtime, easier audits, and lower life-cycle costs.
