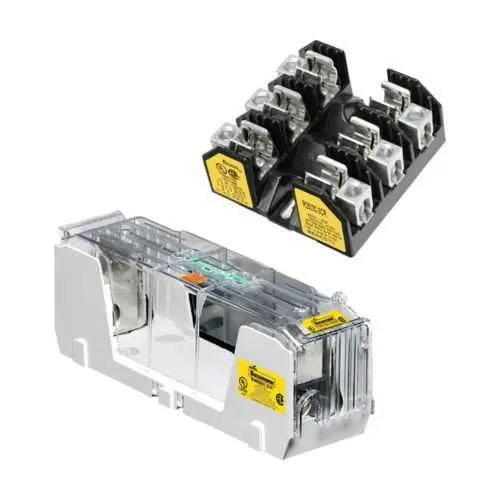

Eaton RM60030-1CHR RM modular fuse block - 200 kAIC
Part Number: RM60030-1CHR
Quick Summary
Eaton RM60030-1CHR modular fuse block protects electrical circuits in panels and DIN-rail assemblies. Engineers often contend with nuisance trips and maintenance challenges when protection blocks are undersized or difficult to service. This RM60030-1CHR carries RoHS compliance and PED 97/23 EC in context with a robust 200 kAIC interrupt rating and Class R fuse compatibility, delivering reliable protection. Designed for DIN rail and panel mounting with box lug connections, it supports #2–14 AWG conductors and 600 V systems, helping you meet safety standards while reducing downtime.
Product Information
Extended Description
RM60030-1CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box Lugs with Hex Screws, 30 A, 1P, 120°C, 120°C, 50 lb-inches maximum, Class R, Black, 200 kAIC, 75 °C, Stranded, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60030-1CHR
UPC
051712620895
Product Length/Depth
1.2 in
Product Height
7.2 in
Product Width
1.2 in
Product Weight
0.18208333 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM60030-1CHR
Feature: Box lug connections with hex screws provide secure terminations for #2-14 AWG stranded conductors. Business impact: Installation is faster and more reliable, reducing torque variation and electrical loosening that can cause faults. Application: Ideal for DIN rail and panel-mounted control circuits in industrial automation environments. Feature: 30 A, 600 V rating supports moderate loads without oversizing protection. Business impact: Optimizes protection without unnecessary downtime or nuisance trips in machine controls. Application: Suitable for control panels and motor starter circuits in conveyors and packaging lines. Feature: 200 kAIC interrupt rating and 200 kA RMS symmetrical impulse withstand ensure strong fault protection. Business impact: Increases system reliability and reduces risk during short-circuit events. Application: Heavy-duty automation and safety-critical equipment where rapid fault isolation is essential. Feature: 75 °C conductor rating and 120 °C operating temperature enable rugged performance in warm industrial environments. Business impact: Maintains electrical integrity in harsh facilities, lowering failure rates. Application: Harsh factory floors, heat-prone cabinets, and equipment enclosures. Feature: RoHS compliant and PED 97/23 EC certification support regulatory compliance and cross-border deployments. Business impact: Eases audits and international procurement, reducing compliance risk. Application: European and global control panel deployments requiring certified components. Feature: DIN rail and panel mounting with box lug terminations and wire size compatibility (#2-14 AWG). Business impact: Flexible installation in existing cabinets, saves space, and simplifies field upgrades. Application: Industrial racks, machine dashboards, and compact control panels across multiple industries.
Get a Quick Quote for a Eaton RM60030-1CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60030-1CHR?
Enquire Now
FAQs
Yes. The RM60030-1CHR is designed for versatile mounting on DIN rails and panel surfaces, featuring secure box lug terminations for #2-14 AWG stranded conductors. Its 1P single-pole design fits compact control panels while maintaining a 600 V rating and Class R fuse compatibility. Hex screws ensure repeatable, reliable terminations and straightforward inspection during servicing.
Key ratings include a 30 A amperage, 600 V voltage rating, 200 kAIC interrupt rating, and 200 kA RMS symmetrical impulse withstand. This combination supports medium-to-large industrial loads while delivering predictable short-circuit protection. The unit is compatible with stranded #2-14 AWG conductors and uses a Class R fuse for reliable protection and easy field replacement.
Ideal for single-pole protection in machine controls, panel boards, and DIN-rail mounted control circuits in conveyors, packaging lines, and automation systems. It provides robust fault protection up to 200 kA, while its box lug terminals and 600 V rating accommodate a wide range of AC/DC loads. Quick field replacement and regulatory compliance make it a solid choice for growing factories.
RM60030-1CHR is RoHS compliant and carries PED 97/23 EC certification, aligning with European safety and environmental standards. The device's 600 V rating and Class R fuse compatibility are documented in Eaton’s specification sheets. These certifications support compliance during audits and enable smoother cross-border deployments.
The box lug hex-screw terminations enable quick, reliable terminations, reducing installation time and post-installation troubleshooting. Its high interrupt rating and robust protection minimize fault-related downtime, potentially lowering spare parts inventory. DIN rail and panel mounting compatibility also speeds upgrades and retrofits, delivering a favorable total cost of ownership over the equipment life cycle.
