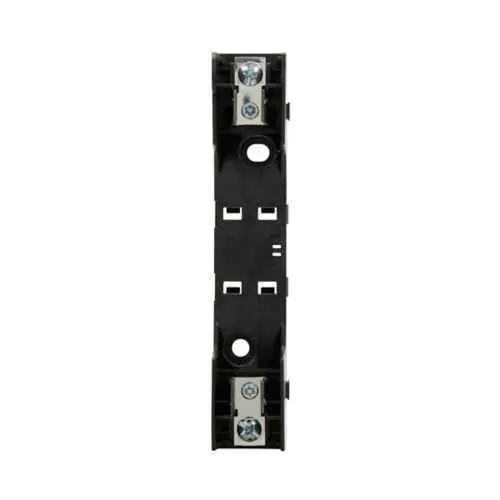

Eaton RM60030-1SR Fuse Block - Class R, 600V
Part Number: RM60030-1SR
Quick Summary
The Eaton RM60030-1SR fuse block provides modular overcurrent protection for control panels. Engineers often struggle with wiring complexity and panel space when upgrading protection, leading to downtime. UL Listed and CSA Certified devices, RoHS Compliant, and CE Marked ensure regulatory acceptance and safer procurement. With a 0-30A, 600V rating and a compact, screw-terminal design, it reduces panel footprint and installation time while improving reliability. This makes it suitable for machine builders and panel shops seeking scalable protection across 600 V control circuits. The RM60030-1SR is compatible with Bussmann Series Class R fuses, streamlining stocking and maintenance. Its RoHS and CE Certifications further simplify global procurement and compliance reporting.
Product Information
Extended Description
RM60030-1SR Eaton: Eaton Bussmann Series RM modular fuse block, 0-30 A, Single-pole, Class R, Screw, 600 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60030-1SR
UPC
051712511483
Product Length/Depth
6.25 in
Product Height
2.27 in
Product Width
1.21 in
Product Weight
0.14 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class R
Connection
Screw
RM60030-1SR~Fuse Block, Class R, 600V 30A, 1 Pole
RM60030-1SR~Fuse Block, Class R, 600V 30A, 1 Pole
Bussmann series Fuseology
Eaton Specification Sheet - RM60030-1SR
The RM60030-1SR uses a modular fuse block architecture that consolidates protection in a single, field-serviceable unit. Business Impact: this reduces downtime during fuse replacements and simplifies inventory with Class R fuses, lowering total ownership costs. Application: ideal for DIN-rail mounted control panels in industrial automation where space is at a premium. Feature: It supports 0-30A and 600V ratings in a single-pole design with a screw connection for secure wiring. Business Impact: delivers reliable overcurrent protection while enabling fast wiring and consistent torque, reducing mis-termination and callbacks. Application: suitable for control circuits, motor starters, and power-distribution blocks in harsh industrial environments. Feature: Compliance and safety features include UL Listed, CSA Certified, RoHS compliance, and CE marking. Business Impact: regulatory readiness across North American and European markets, simplified compliance reporting and supplier qualification. Application: essential for OEMs targeting global deployments. Feature: Compact footprint—6.25 in length, 2.27 in height, 1.21 in width, and 0.14 lb weight—plus screw terminals. Business Impact: frees panel space, reduces mounting hardware, and improves vibration resistance with solid connections. Application: dense control cabinets and retrofits where space is constrained. Feature: Compatibility with Bussmann Series RM devices and availability of catalogs and datasheets. Business Impact: ensures easy sourcing and accurate replacements; reduces downtime and procurement risk. Application: ideal for service providers, OEMs, and maintenance teams managing modular protection blocks.
Get a Quick Quote for a Eaton RM60030-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60030-1SR?
Enquire Now
FAQs
Install on a compatible DIN rail or panel surface, secure the small single-pole block with its screw terminals, and connect conductors according to the 0-30A, 600V rating. Use Class R fuses for compatibility, ensure proper clearance for 600 V circuits, and verify UL/CSA labeling after wiring. This design streamlines maintenance, reduces wiring errors, and speeds up upgrades.
Key specs include 0-30 A amperage rating, 600 V voltage rating, single-pole configuration, Class R designation, screw connection, and RoHS/CE compliance. Dimensions are 6.25 in length, 2.27 in height, 1.21 in width, with a weight of 0.14 lb. The UPC is 051712511483, and the product is UL Listed and CSA Certified.
Yes. The RM60030-1SR is RoHS compliant and CE marked, meeting European regulatory requirements and reducing hazardous substance concerns. It’s also UL Listed and CSA Certified, supporting cross-border compliance workflows for OEMs and integrators deploying 600 V control circuits in global facilities.
Industries such as industrial automation, machine building, and power distribution benefit, particularly for control panels with high-density layouts. Suitable for 600 V control circuits, it supports DIN rail installations and offers quick maintenance with a modular, single-pole Class R fuse approach, improving uptime in manufacturing and process environments.
Maintenance is streamlined by a modular design that allows quick fuse replacement without replacing the entire block, reducing downtime. ROI improves through lower inventory complexity (Class R compatibility), faster installations, and regulatory compliance (UL/CSA, RoHS, CE), which minimizes procurement risk and supports scalable protection as systems expand.
