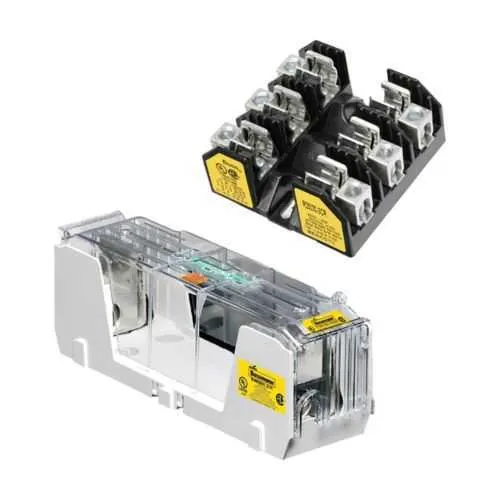

Eaton RM60030-2CHR Modular Fuse Block - 200 kAIC
Part Number: RM60030-2CHR
Quick Summary
RM60030-2CHR modular fuse block from Eaton is designed for reliable panel and DIN rail protection in electrical control systems. Engineers often struggle with space, wiring reliability, and maintenance overhead; this compact 2P unit with box lugs and hex screws helps streamline installation and improve longevity. RoHS compliance and PED 97/23 EC certification support environmental responsibility and safety compliance across European and global projects. With a 600 V rating, 30 A capacity, and 200 kAIC interrupt capability, it delivers robust protection for critical loads. This translates to reduced downtime, simpler maintenance planning, and predictable lifecycle costs for panel builders and machine integrators.
Product Information
Extended Description
RM60030-2CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box Lugs with hex screws, 30 A, 2P, 120°C, 120°C, 50 lb-inches max, Class R, Black, 200 kAIC, 75 °C, Stranded, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60030-2CHR
UPC
051712620901
Product Length/Depth
2.4 in
Product Height
7.2 in
Product Width
2.4 in
Product Weight
0.36416667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM60030-2CHR
Feature: Box lug terminals with hex screws provide a secure, torque-controlled connection. Business impact: Reduces risk of loose connections and thermal hotspots, minimizing corrective maintenance in vibration-prone environments. Application: Ideal for #2-14 AWG stranded conductors in two-pole configurations on DIN rails or panel mounts. Feature: 600 V electrical rating and 30 A amperage rating. Impact: Protects high-energy circuits with predictable performance and clear fault tolerance. Application: Suitable for standard control panels in automation systems. Feature: 200 kAIC interrupt rating and 200 kA RMS short-circuit rating. Impact: High fault tolerance reduces cascading failures and improves system resilience. Application: Critical loads in conveyors, presses, packaging lines, and robotic cells. Feature: RoHS compliant and PED 97/23 EC certification. Impact: Regulatory alignment reduces risk in regulated markets and simplifies procurement. Application: European equipment and global assemblies. Feature: Box lug with DIN rail and panel mounting compatibility. Impact: Flexible installation reduces material handling and project scheduling. Application: New builds and retrofit installations across industrial automation. Feature: Operating temperature up to 120°C and conductor rating of 75°C. Impact: Operational reliability in harsh environments with higher ambient temperatures. Application: Automotive, packaging, material handling, and process control. Feature: Torque rating of 50 lb-in and weight of 0.364 lb. Impact: Ensures consistent connections and predictable mechanical fit in tight panel spaces. Application: Enclosures with limited clearance and standard DIN rails.
Get a Quick Quote for a Eaton RM60030-2CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60030-2CHR?
Enquire Now
FAQs
The RM60030-2CHR supports panel and DIN rail mounting with Box Lugs and Hex Screws. Use wire sizes #2-14 AWG and tighten to the recommended torque of 50 lb-in to ensure a secure, vibration-resistant connection. Align the unit for polar correctness in a protected enclosure and verify that the assembly remains within the 600 V, 30 A specifications during operation.
The block is rated for 30 A and 600 V, with a 200 kAIC interrupt rating and a 200 kA RMS short-circuit rating. This combination supports high-energy circuits while maintaining fast fault isolation. The 75 °C conductor rating and 120 °C operating temperature ensure wires and the device perform reliably under typical industrial conditions.
Yes, it is designed for control panels and DIN rail installations in industrial settings. Its RoHS compliance supports environmental standards, while PED 97/23 EC certification helps ensure suitability for European machinery in appropriate applications. The device’s robust torque, conductor compatibility, and Class R fuse construction further enhance reliability in demanding environments.
The RM60030-2CHR carries RoHS compliance and PED 97/23 EC certification. RoHS limits hazardous substances, aiding regulatory compliance and safer disposal, while PED certification supports use in equipment that may be classified as pressure-bearing in certain European applications. These certifications help simplify procurement and ensure market-ready performance.
The combination of box lug terminations with hex screws and a precise 50 lb-in torque minimizes loosened connections, reducing maintenance downtime. Its high interrupt rating, compact two-pole design, and DIN rail/panel mounting flexibility shorten installation time and enable scalable panel designs, delivering lower lifecycle costs and improved uptime for automation systems.
