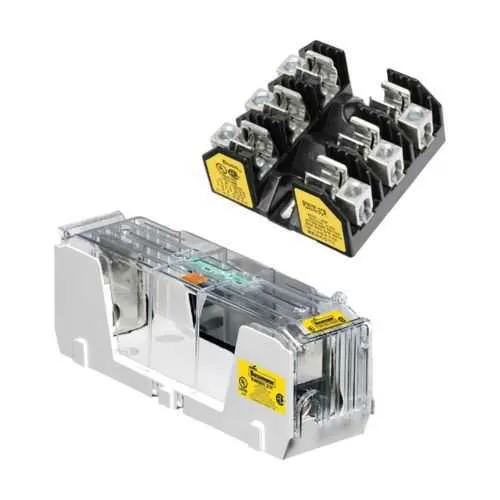

Eaton RM60060-2CHR modular fuse block - PED 97/23 EC
Part Number: RM60060-2CHR
Quick Summary
Eaton RM60060-2CHR modular fuse block is a compact 2P protection device designed for panel and DIN rail mounting in industrial control systems. Operators often face crowded panels, wiring complexity, and inconsistent fault isolation when protecting feeders and motors; this module simplifies installation while delivering reliable protection. Key certifications include RoHS compliance and PED 97/23 EC, with an impressive 200 kAIC interrupt rating and 600 V capability that support demanding environments. By integrating Box Lugs with Hex Screws and a robust Class R fuse, it delivers faster assembly, easier maintenance, and improved safety. For system integrators, the RM60060-2CHR also aligns with DIN rail standards and common wire ranges (#2-14 AWG), reducing custom harnessing and accelerating time-to-protect.
Product Information
Extended Description
RM60060-2CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box Lugs with Hex Screws, 60 A, 2P, 120°C, 50 lb-inches max, Class R, CVR(I)-RH-60060, Black, 200 kAIC, 75 °C, Stranded, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60060-2CHR
UPC
051712621021
Product Length/Depth
3 in
Product Height
8 in
Product Width
3 in
Product Weight
0.50666667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-60060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
RM60060-2CHR~FUSE BLK, R 600V 60A 2P
RM60060-2CHR~FUSE BLK, R 600V 60A 2P
Bussmann series Fuseology
Eaton Specification Sheet - RM60060-2CHR
Feature → Business Impact → Application: The RM60060-2CHR provides a 60 A, 600 V rating with a 200 kAIC interrupt capability, enabling safe protection for high-demand feeders while minimizing fault cascades in critical equipment. This translates to reduced downtime and lower risk of collateral damage in motor control centers and control panels. Application: Ideal for industrial automation panels and machine building where reliable overcurrent protection is essential. Feature → Business Impact → Application: Box Lugs with Hex Screws offer secure, vibration-resistant connections that simplify field wiring and maintenance, supporting quick diagnostics in harsh environments. Application: Suitable for DIN rail or panel-mounted installations in rugged manufacturing environments. Feature → Business Impact → Application: Conductor compatibility (Stranded #2-14 AWG) and a 75 °C conductor rating ensure broad wiring options and robust heat resistance, enabling compliant, long-life installations in electrical cabinets. Application: Controls and feeders requiring dependable 60 A protection with straightforward assembly. Feature → Business Impact → Application: RoHS compliance and PED 97/23 EC certification provide regulatory peace of mind, reducing risk during audits and facilitating global deployment. Application: OEMs and integrators targeting compliant, globally distributable protection solutions. Feature → Business Impact → Application: 50 lb-in torque rating ensures proper lug torque for reliable electrical connections, improving vibration resistance in dynamic industrial environments. Application: Field installations where mechanical reliability is critical. Feature → Business Impact → Application: 2-pole Class R fuse type supports modular, standardized protection schemes across multiple circuits, streamlining spare-part inventories and service planning. Application: Panel builders seeking consistent, repeatable protection blocks.
Get a Quick Quote for a Eaton RM60060-2CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60060-2CHR?
Enquire Now
FAQs
Install the RM60060-2CHR directly on standard DIN rails or panel mounts. Use a torque of up to 50 lb-in for the box lug screws to ensure a secure, vibration-resistant connection and reliable current path. The unit supports #2-14 AWG stranded conductors for flexible wiring.
It provides 60 A at 600 V with a 200 kAIC interrupt rating and 200 kA RMS symmetrical short-circuit capability, making it suitable for protecting feeders, motors, and other high-demand circuits in industrial control panels.
Yes. The unit is RoHS compliant and carries PED 97/23 EC certification, supporting regulatory compliance for European and global installations and enabling broader deployment in multinational facilities.
The fuse block accepts stranded conductors in the #2-14 AWG range and features a 75 °C conductor temperature rating, suitable for typical industrial wiring while maintaining safe insulation temperatures.
Its combination of Box Lugs with Hex Screws, DIN rail and panel mounting options, 2-pole Class R fuse design, and standardized wiring simplifies assembly, reduces customization, and improves field serviceability with robust electrical connections.
