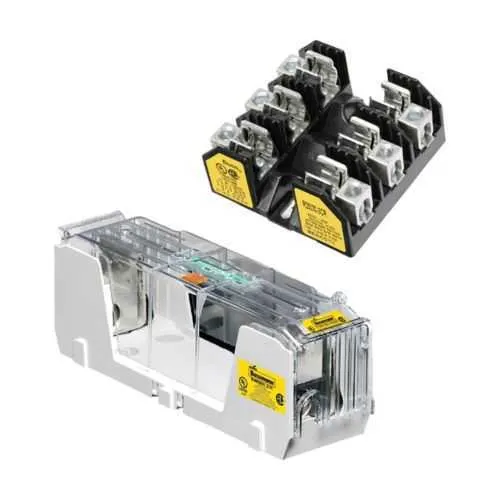

Eaton RM60060-3CHR modular fuse block - 200 kAIC
Part Number: RM60060-3CHR
Quick Summary
The Eaton RM60060-3CHR modular fuse block provides compact three-pole overcurrent protection for DIN rail panels and control cabinets. Engineers often struggle with space constraints, wiring complexity, and reliable fault isolation during panel upgrades. The unit features a 60 A, 600 V rating with a 200 kAIC interrupt capacity, RoHS compliance, and PED certification to support European projects. Designed for DIN rail and panel mounting with box lugs and hex screws, it enables quick installations, secure terminations, and consistent performance in demanding industrial environments. This combination delivers improved uptime and lower maintenance costs for automated systems.
Product Information
Extended Description
RM60060-3CHR Eaton: Eaton Bussmann Series RM modular fuse block, Box lugs with hex screws, 60 A, 3P, 120°C, 50 lb-in max, Class R, CVR(I)-RH-60060, Black, 200 kAIC, 75 °C, Stranded, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60060-3CHR
UPC
051712621038
Product Length/Depth
4.5 in
Product Height
8 in
Product Width
4.5 in
Product Weight
0.76 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class R
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-60060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM60060-3CHR
Three-pole DP protection with Class R fuse design reduces miswiring and ensures predictable tripping, delivering safer panel protection and faster fault isolation for automated lines. High fault tolerance is achieved through a 60 A, 600 V rating and 200 kAIC interrupt capacity, enabling reliable safeguarding of drives and feeders in harsh environments while minimizing downtime. DIN rail and panel mounting with box lug hex-screw terminations support rapid field installation and secure, vibration-resistant connections, lowering commissioning time and field maintenance costs. RoHS compliant and PED-certified construction helps meet regulatory requirements across global projects, reducing procurement risk and streamlining audits for machinery OEMs. The compact footprint, 4.5 in by 4.5 in by 8 in form factor, plus a 75 °C conductor rating and stranded #2-14 AWG wiring, provides versatile integration with common industrial cables. Box-lug termination and CVR(I)-RH-60060 accessory compatibility enhance serviceability in retrofit scenarios, delivering long-term reliability with minimal rework.
Get a Quick Quote for a Eaton RM60060-3CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60060-3CHR?
Enquire Now
FAQs
The RM60060-3CHR supports DIN rail mounting and panel mounting, enabling flexible installation in control cabinets and automation panels. Its box lug terminations with hex screws provide secure, vibration-resistant connections, simplifying retrofits and new builds alike. This compatibility reduces wiring complexity and speeds up commissioning on both new machines and existing assemblies.
The RM60060-3CHR is rated for 60 A and 600 V, with a 200 kAIC interrupt capacity and a Class R fuse type. It is a three-pole device designed for box-lug terminations and stranded conductors (#2-14 AWG). These ratings support reliable protection for industrial circuits and consistent fault isolation under peak load conditions.
Yes. The RM60060-3CHR is RoHS compliant and PED-certified (97/23 EC), ensuring regulatory alignment for European projects. This helps streamline compliance documentation, support audits, and reduce supply-chain risk when specifying protectors for machinery sold or deployed in EU markets.
This fuse block is ideal for control panels, DIN rail installations, and motor control centers in industrial automation. Its three-pole Class R design, box lug terminals, and 60 A/600 V rating support protection for drives, feeders, and centralized protection schemes, while its RoHS and PED compliance helps with global deployment and regulatory assurance.
Installation benefits include quick, tool-friendly box-lug terminations with hex screws and a torque spec of 50 lb-in, reducing miswiring and tightening variability. The 75 °C conductor rating and 120 °C operating range support durable performance in vibration and heat. These factors translate into lower maintenance, faster changeouts, and improved uptime for automated systems.
