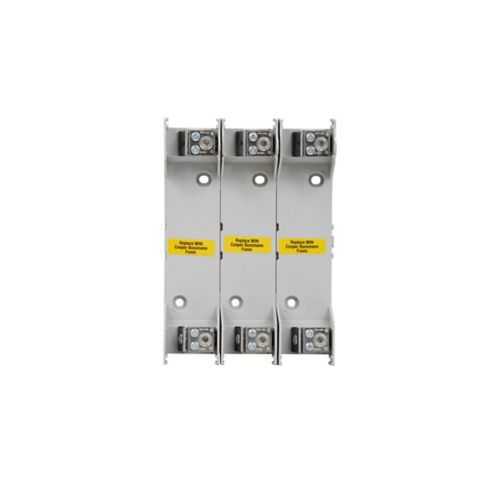

Eaton RM60100-2CR Modular Fuse Block - UL Listed
Part Number: RM60100-2CR
Quick Summary
The Eaton RM60100-2CR modular fuse block provides reliable overcurrent protection for electrical panels and motor control centers. For engineers designing compact control cabinets, space constraints and mis-match of fuse blocks are common pain points. This unit is UL Listed, CSA Certified, and RoHS compliant, delivering regulatory confidence for modern industrial installations. With a two-pole, Class R design rated for 70–100 A at 600 V and knife blade end connections, it integrates smoothly into Bussmann-series layouts. The device's compact footprint—7 in long by 4.45 in wide and 2.57 in high—reduces panel depth while maintaining robust fault isolation, improving uptime and simplifying sourcing for maintenance teams.
Product Information
Extended Description
RM60100-2CR Eaton: Eaton Bussmann Series RM modular fuse block, CR, 70-100 A, Two-pole, Class R, Knife blade end x knife blade end, 600 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60100-2CR
UPC
051712391221
Product Length/Depth
7 in
Product Height
2.57 in
Product Width
4.45 in
Product Weight
0.65 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
70-100A
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class R
Connection
Knife blade end x knife blade end
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM60100-2CR
Feature: Modular two-pole design with knife blade end connections. Benefit: Simplifies field replacement and ensures positive seating, reducing fault escalation during maintenance. Application: Suitable for electrical panels and motor control centers where quick swaps are essential. Feature: 70–100 A at 600 V electrical rating. Benefit: Supports a range of motors and drives without derating, enabling one fuse-block platform for multiple loads. Application: Machine control and power distribution in automation panels that demand consistent protection across loads. Feature: Compact footprint with 7 in length, 4.45 in width, and 2.57 in height. Benefit: Frees panel space and enables denser layout in limited cabinets. Application: Pack-and-stack panel designs in robotic cells and packaging lines. Feature: Class R compatibility and UL Listed/CSA Certified. Benefit: Regulatory compliance reduces procurement risk and accelerates audits. Application: Industrial automation environments requiring recognized protection standards. Feature: RoHS compliant and Bussmann-series integration. Benefit: Environmentally responsible design with readily sourced replacement parts. Application: Global manufacturing facilities with tight sustainability requirements. Together these characteristics deliver measurable outcomes: reduced downtime from faster fuse changes, streamlined spare parts management, and a compliant, scalable protection solution for motor control and distribution panels.
Get a Quick Quote for a Eaton RM60100-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60100-2CR?
Enquire Now
FAQs
To ensure compatibility, install the RM60100-2CR using its knife blade end connections with Bussmann CR fuses designed for Class R blocks. Confirm the two-pole arrangement and verify the amperage rating between 70 and 100 A for the protected circuit. Use proper torque on blade terminals and maintain clean contact surfaces to prevent arcing and nuisance tripping.
RM60100-2CR is rated for 70–100 A and 600 V in a two-pole configuration. It is designed to protect motors, drives, and distribution circuits within industrial panels. The Class R compatibility ensures the fuses it accommodates meet established protection standards, while the 600 V rating supports typical industrial control and power distribution loads.
The RM60100-2CR carries UL Listed and CSA Certified qualifications with RoHS compliance, which supports regulatory requirements in many environments. While the data does not specify an IP rating, its compact form factor and knife blade terminations facilitate quick maintenance in standard industrial cabinets. For harsh or contaminant-prone environments, verify panel enclosure protection and consider additional sealing or shielding as needed.
RM60100-2CR carries UL Listed, CSA Certified, and RoHS compliance. These certifications provide independent safety verification, allow for regulatory acceptance in North America and many global markets, and ensure the component adheres to environmental and health standards. Certification compatibility simplifies supplier qualification, audit readiness, and reduces project risk in certified automation environments.
By offering a compact, standardized two-pole protection block rated for 70–100 A at 600 V, RM60100-2CR can lower spare parts inventory and simplify procurement. Quick field replacements reduce downtime, and UL/CSA compliance minimizes validation effort. Its compatibility with Bussmann Series CR fuses supports a consistent protection strategy across multiple panels, lowering long-term maintenance costs.
