Eaton RM60200-3CR RM modular fuse block - RoHS CE Marked
Part Number: RM60200-3CR
Quick Summary
Eaton RM60200-3CR RM modular fuse block protects industrial control panels and power distribution systems. When panel space is tight and downtime is costly, you need a reliable, easily replaceable fusing solution with clear regulatory marks. This unit carries UL Listed, CSA Certified, and CE Marked certifications, along with RoHS compliance, ensuring global acceptance. By leveraging a Class R, three-pole design with knife blade end connections, you gain streamlined installation and predictable protection for 600 V systems, while reducing spare-part variety and lifecycle costs across industrial applications.
Product Information
Extended Description

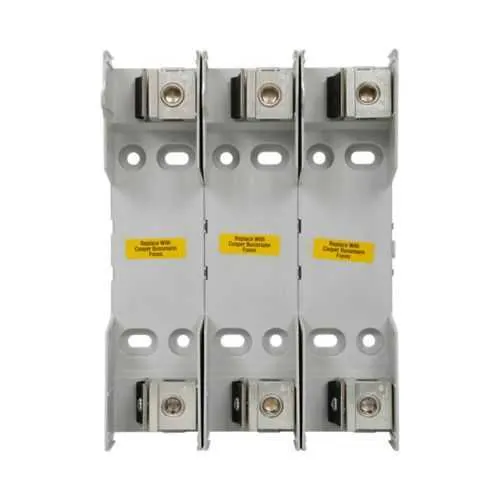

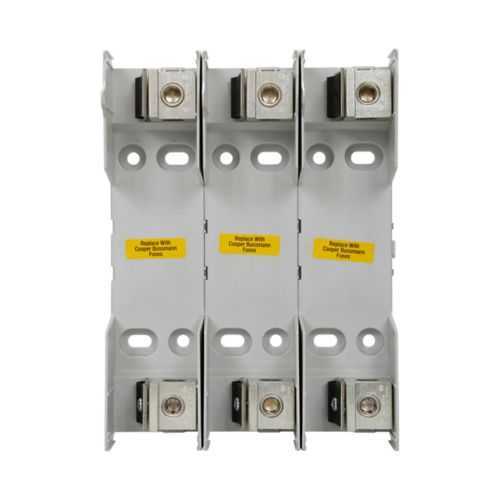

RM60200-3CR Eaton: Eaton Bussmann Series RM modular fuse block, CR, 110-200 A, Three-pole, Class R, Knife blade end x knife blade end, 600 V
Product Name
Eaton Bussmann Series RM modular fuse block
Catalog Number
RM60200-3CR
UPC
051712387385
Product Length/Depth
7.75 in
Product Height
1.5 in
Product Width
3.65 in
Product Weight
2.7 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class R
Connection
Knife blade end x knife blade end
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RM60200-3CR
Feature: 110-200 A amperage rating with 600 V voltage rating. Business impact: supports a broad range of protection needs with a single device, reducing inventory while maintaining rigorous safety standards. Application: suitable for industrial control panels and motor control centers where high-current protection is required. Feature: Three-pole configuration with Class R protection. Business impact: consolidates protection across three phases, simplifying wiring schemes and improving fault isolation in power distribution. Application: three-phase machinery and machine builds in manufacturing lines. Feature: Knife blade end x knife blade end connections. Business impact: fast, secure installations with reliable contact; minimizes assembly time during panel build or retrofit. Application: panel framer installs and field upgrades. Feature: Regulatory certifications UL Listed, CSA Certified, CE Marked, RoHS compliant. Business impact: accelerates compliance during audits and customer acceptance in global markets. Application: regulated industries requiring strict conformity, such as automotive, food & beverage, and process industries. Feature: Rugged Bussmann RM modular fuse block construction. Business impact: durable protection with predictable thermal performance; reduces maintenance intervals and unplanned downtime. Application: medium to high-current protection in control systems and power distribution networks.
Get a Quick Quote for a Eaton RM60200-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RM60200-3CR?
Enquire Now
FAQs
The RM60200-3CR is designed for industrial control panels and power distribution systems operating up to 600 V. Its three-pole Class R configuration and knife blade end connections support standard control panel architectures, facilitating straightforward integration with Bussmann RM modular fuse blocks and compatible circuit protections.
Confirm 110-200 A amperage rating, 600 V voltage rating, and three-pole configuration. Ensure space for a three-pole unit and compatible bussing. Verify RoHS compliance requirements and that UL Listed and CSA Certified marks align with your safety and regulatory procurement standards.
Yes. The RM60200-3CR carries UL Listed and CSA Certified marks, alongside CE Marking and RoHS compliance. These certifications support global distribution, vendor audits, and customer acceptance in regulated industries such as automotive, aerospace, and process industries.
Absolutely. With a 600 V rating and three-pole Class R design, the RM60200-3CR is well-suited for motor control centers and three-phase motor protection. Its knife blade end connections enable efficient panel wiring, reducing installation time and potential contact resistance issues.
By providing a durable, standardizeable modular fuse block, this unit lowers spare-part variety and simplifies replacement. The integration with UL/CSA certificates and RoHS compliance supports fewer compliance checks and faster procurement, resulting in reduced downtime and a lower total cost of ownership over the life of the panel.
