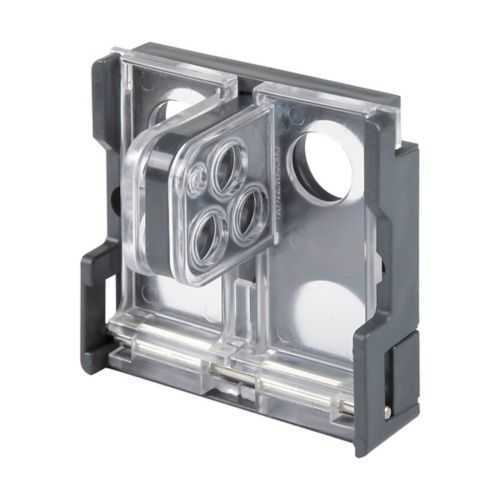

Eaton RPLPBCM Pushbutton Cover - NRX RF Frame
Part Number: RPLPBCM
Quick Summary
The Eaton RPLPBCM Pushbutton Cover shields NRX RF pushbuttons used in industrial control panels. In harsh environments, exposed interfaces invite dust ingress, misoperation, and costly downtime, so reliable covers are essential for uptime. Consult Eaton’s specification sheet for exact CE, IP, and safety certifications; the NRX family is designed with compliance in mind, but verify the precise markings. With a rugged metal frame and a dedicated cover, installation is straightforward, and compatibility with Series NRX supports scalable panel designs. This combination helps engineers reduce lifecycle costs while maintaining secure, compliant control systems, aligning with procurement goals for standardization and reliability.
Product Information
Extended Description
RPLPBCM Eaton: Eaton Series NRX-RF, Pushbutton Metal Cover
Product Name
Eaton Series NRX cover
Catalog Number
RPLPBCM
UPC
786685553818
Product Length/Depth
5 in
Product Height
3 in
Product Width
8 in
Product Weight
2 lb
Warranty
1 year
Compliances
Contact Manufacturer
Catalog Notes
RF frame only.
Used with
Pushbuttons
Frame
RF
Accessories
Cover
Series
Series NRX
Number of poles
Universal
Feature: Rugged metal NRX cover for pushbuttons. Business Impact: protects against mechanical wear, dust, and environmental exposure, extending control-panel life and reducing maintenance cycles. Application: ideal for manufacturing lines and process panels using NRX RF pushbuttons. Feature: Series NRX compatibility with universal poles. Business Impact: simplifies stocking and maintenance, enabling faster upgrades and reducing engineering time when expanding NRX-based systems. Application: retrofit projects and new builds in automotive, food & beverage, and chemical processing environments. Feature: Clear footprint and weight specification. Business Impact: predictable fit (5 in L, 3 in H, 8 in W) and manageable 2 lb weight improve on-site handling, installation speed, and shipping efficiency. Application: panel assemblies where space and weight constraints are critical. Feature: RF frame only configuration (Catalog Notes). Business Impact: streamlines mounting design and ensures proper alignment with pushbuttons, minimizing alignment-related assembly issues. Application: panels requiring RF-frame integration within NRX layouts. Feature: Warranty and documentation support. Business Impact: a 1-year warranty and accessible Eaton datasheet reduce procurement risk and support maintenance planning. Application: standard enterprise purchasing and long-term service agreements.
Get a Quick Quote for a Eaton RPLPBCM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RPLPBCM?
Enquire Now
FAQs
To install the RPLPBCM, verify that the cover is compatible with the NRX RF frame, align the cover with the pushbutton mounting surface, and secure it using standard hardware recommended for NRX assemblies. The process is designed to be quick and repeatable across multiple panels, minimizing downtime during upgrades or maintenance.
By shielding pushbuttons from dust, debris, and accidental contact, the RPLPBCM reduces wear and misoperation risks. This translates to fewer unplanned outages, lower replacement frequency, and shorter maintenance windows, contributing to higher overall equipment uptime and predictable maintenance schedules.
Yes. The RPLPBCM is designed for Series NRX with universal poles, enabling flexible integration across different pushbutton configurations. This compatibility simplifies procurement and supports scalable panel design without requiring multiple cover variants.
Verify CE marking, IP-related protection, and other safety certifications in the official Eaton specification sheet. While the NRX family is designed with compliance in mind, always confirm the exact certifications for your region and application from Eaton’s datasheet.
The RPLPBCM carries a 1-year warranty, with Eaton providing datasheets and support resources. This reduces risk during deployment, supports faster procurement decisions, and lowers total cost of ownership by mitigating replacement and maintenance expenses over the initial years of operation.
