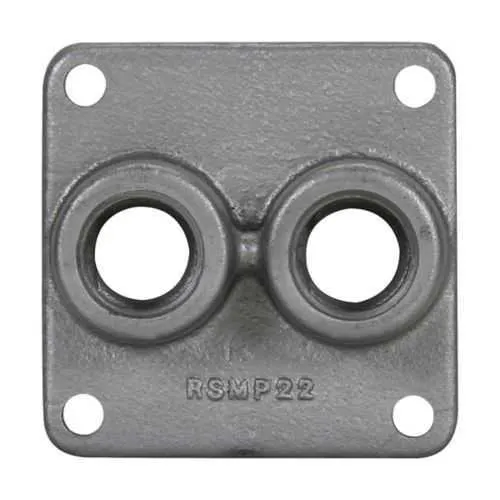

Eaton RSMP22 RSM/RSS Conduit Hub Plate - 4-1/2 x 4, NEMA 3
Part Number: RSMP22
Quick Summary
RSMP22 conduit hub plate from Eaton provides rugged mounting hubs for RSM/RSS enclosures in electrical infrastructure. Users often struggle with improvised fittings and inconsistent hub availability, which leads to rework and downtime; RSMP22 standardizes connections for reliable assemblies. Key certifications include NEMA 3 rating, NEC/CEC compliance, and Ordinary/Non-Hazardous area classification, ensuring safe, compliant installations. As a business value, RSMP22 improves installation efficiency and inventory control while aligning with Eaton Crouse-Hinds standards. With compatible dimensions—4-1/2 x 4 in—two hubs and a 3/4 in trade size, it integrates cleanly into RS/RSS kits, reducing field adjustments and support calls. This translates to faster project turnover and lower total cost of ownership.
Product Information
Extended Description
RSMP22 Eaton: Eaton Crouse-Hinds series RSM/RSS conduit hub plate, 4-1/2" x 4", Feraloy iron alloy, 2 hubs, 3/4" trade size
Product Name
Eaton Crouse-Hinds series RSM/RSS conduit hub plate
Catalog Number
RSMP22
UPC
782274597102
Product Length/Depth
3.5 in
Product Height
3.5 in
Product Width
1 in
Product Weight
1.09 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Enclosure size
4-1/2" x 4"
Number of hubs
2
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series RS, RSM and RSS Junction Boxes catalog page
RS, RSM and RSS Junction Boxes UL certification
RS, RSM and RSS Junction Boxes UL certification
Eaton Specification Sheet - RSMP22
Feature: Feraloy iron alloy construction delivers high strength and corrosion resistance. Business impact: extended service life lowers replacement costs in harsh industrial environments. Application: ideal for ordinary/non-hazardous locations where open conduit hubs must withstand washdown and vibration. Feature: Two 3/4 inch trade-size hubs optimize conduit routing. Business impact: reduces the number of fittings and installation time for RS/RSS junction boxes. Application: simplifies field assembly in control panels and wall-mount enclosures. Feature: 4-1/2 x 4 inch enclosure footprint with 3.5 in depth and 3.5 in height; narrow profile fits tight panels. Business impact: saves panel space and accelerates mounting. Application: compatible with RSMP22 applications in compact enclosures. Feature: NEMA Rating 3 and NEC/CEC compliance; Area classification Ordinary/Non-Hazardous. Business impact: ensures safe operation and regulatory alignment. Application: suitable for plant floors and indoor environments with non-hazardous locations. Feature: Part of Eaton Crouse-Hinds RS/RSS series with a weight of 1.09 lb; Procurement compatibility and handling. Business impact: lowers shipping and labor costs while simplifying inventory management. Application: field-ready, plug-and-play accessory that supports standard RS/RSS kits. Feature: Overall integration with standard RS/RSS components reduces rework and increases installation predictability. Business impact: shorter project timelines and improved project margins. Application: panel builders and maintenance teams seeking reliable, standardized accessories.
Get a Quick Quote for a Eaton RSMP22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RSMP22?
Enquire Now
FAQs
RSMP22 is designed specifically for the Eaton Crouse-Hinds RS/RSS series. It offers a 4-1/2 x 4 inch footprint with two 3/4 inch trade-size hubs, matching the enclosure size and hub configuration used in RS/RSS installations. This compatibility reduces the need for extra adapters or custom fittings, speeding up panel builds and service replacements.
RSMP22 inherits NEC/CEC compliance and a NEMA 3 rating, with Ordinary/Non-Hazardous area classification. UL certification for the RS/RSM/RSS family supports these claims, ensuring the hub plate supports safe, code-compliant installations in non-hazardous environments. These certifications minimize regulatory risk and rework during audits or inspections.
RSMP22 is specified for Ordinary/Non-Hazardous Locations with a NEMA 3 rating, making it suitable for indoor use and protected outdoor areas that are non-hazardous. It is not rated for truly hazardous environments, so for outdoor or corrosive sites, verify additional protective measures or alternate enclosures from the RS/RSS family.
RSMP22 provides a compact 4-1/2 x 4 inch footprint with 3/4 inch hubs, enabling cleaner conduit routing and fewer accessory parts. The feraloy iron alloy body offers durability against impact and corrosion, reducing maintenance. Its standardized dimensions translate to faster onboarding for technicians and less field modification, improving project timelines.
The hub plate reduces installation time and inventory complexity by aligning with RS/RSS kits and standard hub sizes. Durability from ferraloy alloy lowers replacement costs, while NEC/CEC compliance and NEMA 3 protection mitigate risk and rework. Overall, expect shorter project cycles, fewer field issues, and lower total cost of ownership across panel builds.
