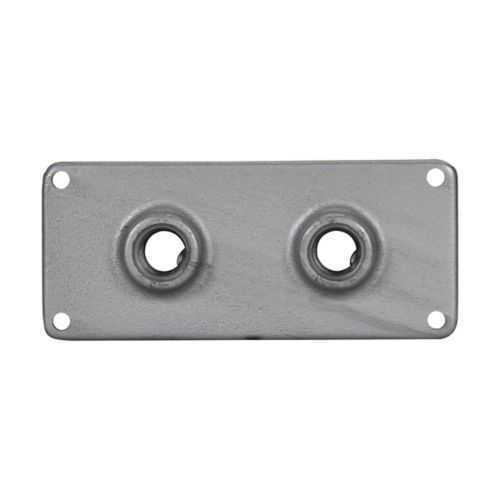

Eaton RSP44 Conduit Hub Plate - NEMA 3
Part Number: RSP44
Quick Summary
Eaton RSP44 Conduit hub plate provides rugged, secure hub mounting for RS/RSM junction boxes in industrial enclosures. Engineers often struggle with durable hardware that resists wear from frequent hub servicing and weather exposure. This component carries a NEMA 3 rating for protection against dust and water exposure, NEC/CEC compliance for standard installations, and Ordinary/Non-Hazardous Locations classification for common factory environments. By leveraging Feraloy iron alloy and dual 1-1/4 inch hubs, it streamlines installation, reduces maintenance cycles, and supports cost-effective panel design in automation and electrical infrastructure projects.
Product Information
Extended Description
RSP44 Eaton: Eaton Crouse-Hinds series RS/RSM conduit hub plate, 8-1/2" x 4", Feraloy iron alloy, 2 hubs, 1-1/4" trade size
Product Name
Eaton Crouse-Hinds series RS/RSM conduit hub plate
Catalog Number
RSP44
UPC
782274598406
Product Length/Depth
8 in
Product Height
4 in
Product Width
1.25 in
Product Weight
2.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Enclosure size
8-1/2" x 4"
Number of hubs
2
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series RS, RSM and RSS Junction Boxes catalog page
RS, RSM and RSS Junction Boxes UL certification
RS, RSM and RSS Junction Boxes UL certification
Eaton Specification Sheet - RSP44
Feature: Feraloy iron alloy construction delivers rugged, high-strength durability in demanding environments. Business Impact: Extends service life in factory floors, reduces replacement costs, and lowers maintenance downtime. Application: Ideal for outdoor enclosures or areas with dust, grime, and potential impact hazards in automation plants. Feature: 8-1/2 x 4 inch enclosure footprint with two hubs. Business Impact: Fits standard RS/RSM junction boxes without adapters or aftermarket modifications, accelerating panel assembly. Application: Control cabinets and junction box assemblies in process lines. Feature: 2 hubs at 1-1/4 inch trade size. Business Impact: Enables clean, two-conduit routing from the enclosure without crowding or misalignment, cutting installation time. Application: Industrial wiring interfaces and machinery enclosures. Feature: NEMA 3 rating and Ordinary/Non-Hazardous Locations classification. Business Impact: Suitable for outdoor and non-hazardous indoor environments, ensuring compliant protection with NEC/CEC requirements. Application: Outdoor controls, mid-size automation panels, and light industrial installations. Feature: Lightweight design at approximately 2.6 lb. Business Impact: Easier handling and faster on-site mounting, reducing labor costs and risk of injury. Application: Quick retrofits and new-build panels in production lines.
Get a Quick Quote for a Eaton RSP44
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RSP44?
Enquire Now
FAQs
The RSP44 is designed specifically for Eaton Crouse-Hinds RS/RSM conduit hubs. It provides two 1-1/4 in trade-size hubs and matches the 8-1/2 x 4 inch enclosure footprint, ensuring a secure fit without adapters or additional hardware. This compatibility minimizes installation steps and reduces potential misalignment during mounting.
Key specs include an 8-1/2 x 4 inch enclosure size, two hubs, 1-1/4 inch trade size, and construction from Feraloy iron alloy. Weight is approximately 2.6 lb, with a catalog number of RSP44 and UPC 782274598406, designed for RS/RSM junction boxes in ordinary non-hazardous environments.
Yes. The RSP44 carries a NEMA 3 rating and is classified for Ordinary/Non-Hazardous Locations, making it appropriate for exterior or dusty indoor environments common in industrial automation and electrical infrastructure projects while meeting NEC/CEC standards.
RSP44 supports NEC/CEC standards and a NEMA 3 enclosure rating, with UL certification reports available for RS, RSM, and RSS junction boxes. This combination helps ensure compliance for standard control panels and field-installed enclosures in non-hazardous applications.
Plan for two 1-1/4 inch conduits and fitment to RS/RSM boxes, ensuring space for the hub plate within the 8-1/2 x 4 inch footprint. Use appropriate mounting hardware, consider handling weight around 2.6 lb for single-operator placement, and verify the environment aligns with NEMA 3 and NEC/CEC requirements.
