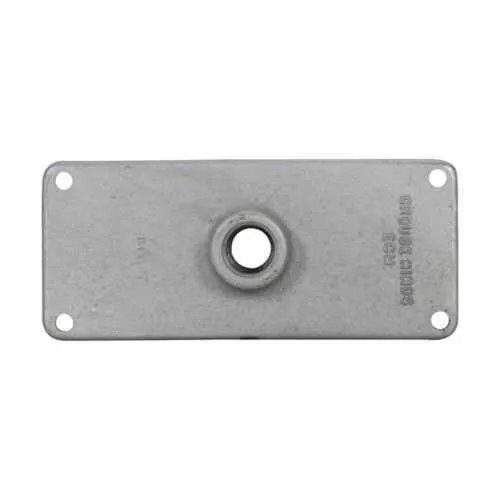

Eaton RSP5 conduit hub plate - NEMA 3, 8-1/2 x 4
Part Number: RSP5
Quick Summary
RSP5 conduit hub plate from Eaton secures a single 1-1/2 in hub on RS/RSM junction boxes for rugged industrial electrical installations. This accessory addresses field fitment and alignment challenges that slow projects and compromise enclosure integrity. It carries NEC/CEC compliance and a NEMA 3 rating for ordinary/non-hazardous locations, ensuring dependable performance in varying environments. Used with the RS/RSM family, it speeds installation, reduces field modification, and supports long-term reliability. With a robust Feraloy iron alloy construction and precise 8-1/2 x 4 enclosure footprint, this hub plate offers cost-effective durability for panel builders and maintenance teams. Its 1 hub, 1-1/2 inch trade size design aligns with common conduit schemes, aiding procurement and stocking decisions.
Product Information
Extended Description
RSP5 Eaton: Eaton Crouse-Hinds series RS/RSM conduit hub plate, 8-1/2" x 4", Feraloy iron alloy, 1 hub, 1-1/2" trade size
Product Name
Eaton Crouse-Hinds series RS/RSM conduit hub plate
Catalog Number
RSP5
UPC
782274597706
Product Length/Depth
3.5 in
Product Height
8 in
Product Width
1 in
Product Weight
2.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Enclosure size
8-1/2" x 4"
Number of hubs
1
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series RS, RSM and RSS Junction Boxes catalog page
RS, RSM and RSS Junction Boxes UL certification
RS, RSM and RSS Junction Boxes UL certification
Eaton Specification Sheet - RSP5
Single hub design on an 8-1/2 x 4 footprint reduces parts count and speeds installation. This directly lowers field labor time and configuration errors in RS/RSM junction boxes used in industrial control panels. Material strength from Feraloy iron alloy delivers robust mechanical strength and corrosion resistance, translating to longer service life in harsh environments and reduced maintenance downtime. The 1-1/2 inch trade size aligns with common conduit systems, minimizing adapters and improving overall wiring efficiency. Certification and compliance with NEC/CEC standards and a NEMA 3 rating support code auditing and safe operation in ordinary/non-hazardous locations, while keeping installations straightforward for field technicians. Weighing 2.45 lb, the hub plate provides sturdy support without overloading mounting panels, enabling easier handling during installation and service.
Get a Quick Quote for a Eaton RSP5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RSP5?
Enquire Now
FAQs
Yes. The RSP5 is specifically designed for the Eaton Crouse-Hinds RS/RSM series, featuring a single hub at 1-1/2 in trade size and an 8-1/2 x 4 enclosure footprint. Its Feraloy iron alloy construction ensures a precise fit, reducing misalignment and field modification time during installation.
Key specs include an enclosure footprint of 8-1/2 x 4 inches, one hub, and a 1-1/2 inch trade size. The hub plate weighs about 2.45 lb and is made from Feraloy iron alloy, delivering rugged strength for industrial environments.
Yes. The RSP5 carries NEC/CEC compliance and a NEMA 3 rating, appropriate for ordinary/non-hazardous locations and suitable for outdoor or mixed environments where protection against dust and water ingress is required within its rating. Always verify local codes for your specific installation.
The RSP5 conforms to NEC/CEC standards and carries a NEMA 3 rating, aligning with recognized enclosure and electrical installation guidelines for ordinary/non-hazardous environments.
Leverage the durable Feraloy iron alloy construction to minimize corrosion-related maintenance. Inspect for physical damage after site events, and replace if deformation occurs. The robust build reduces replacement frequency, contributing to lower lifecycle costs and higher system uptime in RS/RSM installations.
