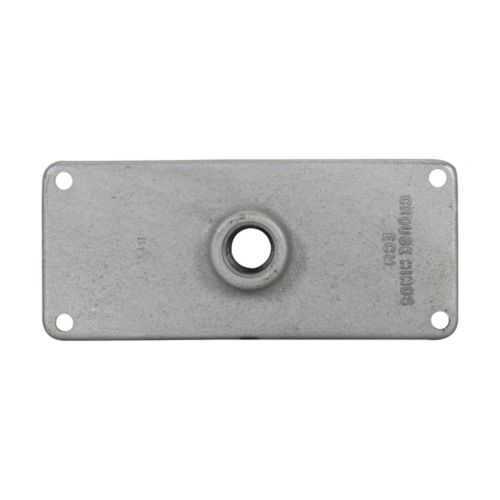

Eaton RSP6 Conduit Hub Plate - 1 Hub, 2 in Trade Size
Part Number: RSP6
Quick Summary
The Eaton RSP6 conduit hub plate provides a rugged, single-hub entry for RS/RSM enclosures used in industrial electrical cabinets. In tight installations, hub changes risk misalignment, leaks, or noncompliance with enclosure standards. Critical certifications include NEC/CEC standards compliance, a NEMA 3 rating for rugged environments, and suitability for ordinary/non-hazardous area classifications. This accessory is designed for the Eaton Crouse-Hinds RS/RSM family, delivering reliable conduit entry while streamlining procurement and field installation. By matching the 8-1/2 x 4 inch enclosure footprint, the RSP6 reduces field cutting, inventory diversity needs, and warranty questions. Its feraloy iron alloy construction provides durable seals and long service life in ordinary locations, supporting reliable enclosure assembly.
Product Information
Extended Description
RSP6 Eaton: Eaton Crouse-Hinds series RS/RSM conduit hub plate, 8-1/2" x 4", Feraloy iron alloy, 1 hub, 2" trade size
Product Name
Eaton Crouse-Hinds series RS/RSM conduit hub plate
Catalog Number
RSP6
UPC
782274597805
Product Length/Depth
8 in
Product Height
3.5 in
Product Width
1.75 in
Product Weight
2.59 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3
Enclosure size
8-1/2" x 4"
Number of hubs
1
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series RS, RSM and RSS Junction Boxes catalog page
RS, RSM and RSS Junction Boxes Canadian certification
RS, RSM and RSS Junction Boxes Canadian certification
Eaton Specification Sheet - RSP6
Feature: Material and construction use a feraloy iron alloy. Benefit: Delivers robust mechanical strength and耐 corrosion resistance in typical industrial environments, reducing replacement intervals. Application: RS/RSM junction boxes in non-hazardous settings with ongoing vibration or temperature variation. Feature: One hub with a 2 inch trade size. Benefit: Simplifies conduit routing and minimizes hardware requirements, cutting installation time by alignment and seating accuracy. Application: Standard 2 in conduit entries on 8-1/2 x 4 inch enclosures for rapid retrofits. Feature: Precise dimensions and weight (8 in length, 3.5 in height, 1.75 in width, 2.59 lb). Benefit: Predictable fit in restricted spaces and easy handling during field mounting. Application: New builds and refurbishments where enclosure footprint remains constant. Feature: Compliance and ratings (NEMA 3, NEC/CEC, Ordinary/Non-Hazardous Locations). Benefit: Ensures regulatory conformance and safe operation in damp or outdoor-adjacent non-hazardous areas, reducing risk of noncompliance penalties. Application: Projects requiring NEC/CEC alignment and rugged outdoor capability. Feature: Catalog references and availability (Eaton RS/RSM series compatibility, official spec sheet). Benefit: Streamlines procurement, reduces guesswork, and supports qualified sourcing with readily available documentation. Application: Engineering and procurement workflows seeking validated accessories with datasheets and catalogs.
Get a Quick Quote for a Eaton RSP6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RSP6?
Enquire Now
FAQs
The RSP6 is designed for Eaton Crouse-Hinds RS/RSM junction boxes with a single 2-inch hub. To install, align the hub plate with the enclosure knockout, secure with the appropriate hardware, and verify a seal around the hub to maintain enclosure integrity. The 8-1/2 by 4 inch footprint ensures a consistent, fit-for-purpose installation across RS/RSM models, minimizing field adjustments and ensuring NEC/CEC compliance.
Key specs include a feraloy iron alloy construction, enclosure size 8-1/2 x 4 inches, one hub, 2 inch trade size, dimensions 8 in length, 3.5 in height, 1.75 in width, and weight about 2.59 lb. Certifications include NEMA 3 rating and NEC/CEC compliance for ordinary/non-hazardous locations. These details help validate fit, durability, and regulatory alignment.
The product is rated for Ordinary/Non-Hazardous Locations with a NEMA 3 enclosure rating, making it suitable for damp or outdoor-adjacent non-hazardous areas. It is not intended for hazardous or IP-rated environments beyond the specified NEMA 3 protection. For projects requiring higher ingress protection, alternative Eaton SKUs should be considered.
RSP6 complies with NEC/CEC standards and carries a NEMA 3 rating, suitable for ordinary/non-hazardous locations. This simplifies compliance planning for non-hazardous environments and supports consistent sourcing across RS/RSM installations. Engineers should verify project specifications to ensure compatibility with local codes and any site-specific environmental requirements.
The RSP6 reduces field labor time through a straightforward, drop-in hub solution, minimizes leakage risk via robust feraloy alloy construction, and lowers maintenance cycles due to durable sealing and materials. For procurement, using a single, standardized hub plate across RS/RSM installations reduces inventory complexity and supports faster project turnover with predictable performance.
