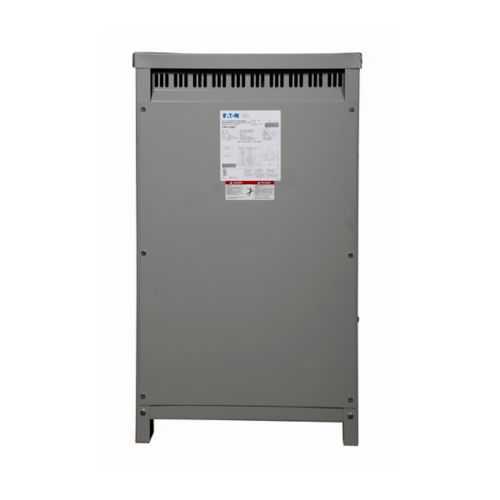

Eaton RT10P11F15CUEE Transformer - ABS Certified UL Listed
Part Number: RT10P11F15CUEE
Quick Summary
The Eaton RT10P11F15CUEE transformer is a general-purpose ventilated transformer designed for marine-duty electrical systems. Engineered for shipboard environments, it helps mitigate voltage sag and overload risks in compact spaces while delivering consistent power to critical loads. This unit is ABS Certified and UL Listed, with NEMA TP-1 efficiency noted in Eaton’s catalog notes, ensuring compliance and reduced energy waste. The 15 kVA rating, copper windings, and 60 Hz operation support reliable distribution from a 120 x 240 V primary to 120/240 V secondary. Rugged enclosure (NEMA 2) and WS11 weathershield provide durable protection, while taps offer voltage flexibility. In practice, installation teams gain faster commissioning and improved total cost of ownership.
Product Information
Extended Description
RT10P11F15CUEE Eaton: Eaton General purpose ventilated transformer, Marine-duty, DS-3 (1-phase), PV 120 x 240V, Taps: 1 at +5%/2 at -5% x 2 at +2.5%/4 at -2.5%, SV 120/240V, 115°C rise, 15 kVA, Copper windings, EE
Product Name
Eaton General purpose ventilated transformer
Catalog Number
RT10P11F15CUEE
UPC
786680060649
Product Length/Depth
18.39 in
Product Height
31.3 in
Product Width
22.89 in
Product Weight
277 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
ABS Certified UL Listed
Catalog Notes
NEMA TP-1 efficient
Coil material
Copper
Enclosure
NEMA 2
Frame
816
Tap size
1 at +5% FCAN, 2 at -5% FCBN x 2 at 2.5% FCAN, 4 at -2.5% FCBN
Type
Marine Duty Transformer
Frequency rating
60 Hz
Primary voltage
120 x 240 V
Secondary Voltage
120/240 V
Volt ampere rating
15 kVA
Weathershield
WS11
Feature: Marine-duty transformer with ventilated construction enables superior cooling in crowded, damp marine spaces. Business Impact: Reduces thermal stress and unplanned downtime, improving reliability of critical loads. Application: Ideal for shipboard electrical rooms and deck-side equipment where space is limited and ventilation is a concern. Feature: Tap changer options including 1 at +5%, 2 at -5%, 2 at +2.5%, and 4 at -2.5% provide voltage regulation. Business Impact: Maintains output voltage within tight tolerances despite load changes, improving equipment performance and life. Application: Power distribution panels serving motors and controls with variable line conditions. Feature: Copper windings deliver low resistance and robust thermal performance. Business Impact: Higher efficiency and reduced copper losses translate to lower operating costs over the life of the transformer. Application: Continuous-duty marine loads and critical loads requiring stable voltage. Feature: 60 Hz, 120 x 240 V primary and 120/240 V secondary configuration. Business Impact: Easy integration with standard shipboard electrical systems, simplifying engineering and installation. Application: Shipboard distribution networks and control panels in marine installations. Feature: NEMA 2 enclosure with WS11 weather shield. Business Impact: Enhanced ingress protection and weather resistance, reducing maintenance needs. Application: Indoor machinery spaces and partially protected outdoor areas aboard vessels. Feature: ABS Certified and UL Listed with NEMA TP-1 efficiency notes. Business Impact: Regulatory compliance, safer certification processes, and energy-efficient operation. Application: Regulatory-compliant power conversion for maritime applications.
Get a Quick Quote for a Eaton RT10P11F15CUEE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RT10P11F15CUEE?
Enquire Now
FAQs
For proper installation, mount the unit in a dry, ventilated space and connect the 120 x 240 V primary to the source and 120/240 V secondary to the load. Set taps per site voltage, ensure adequate clearance for cooling, and follow ABS and UL guidelines. If mounted outdoors, consider WS11 protection and enclosure alignment with the vessel layout.
The transformer provides 15 kVA at 60 Hz, with copper windings and a 1-phase configuration. Primary is 120 x 240 V, secondary 120/240 V. It uses a NEMA 2 enclosure with WS11 weather shield and includes multiple tap settings: +5%, -5%, +2.5%, and -2.5%. The device is ABS Certified and UL Listed, with NEMA TP-1 efficiency noted.
Yes. It is designed for marine duty, carries ABS Certification and UL Listing, and supports shipboard distribution via a 15 kVA rating, copper windings, and 1-phase 120/240 V operation. Its rugged enclosure and taps provide reliable voltage regulation in constrained spaces typical of vessel electrical rooms.
The unit is ABS Certified and UL Listed, indicating compliance with marine safety and electrical standards. These certifications facilitate regulatory approvals, reduce project risk for vessel installations, enhance serviceability, and align with industry expectations for durable, safe power conversion equipment used at sea.
The product includes a one-year warranty from installation or eighteen months from shipment. Copper windings and a robust enclosure minimize maintenance costs by reducing DC resistance and moisture ingress. Regular tap verification and cooling pathway checks prevent voltage and thermal faults, contributing to lower downtime and improved total cost of ownership.
