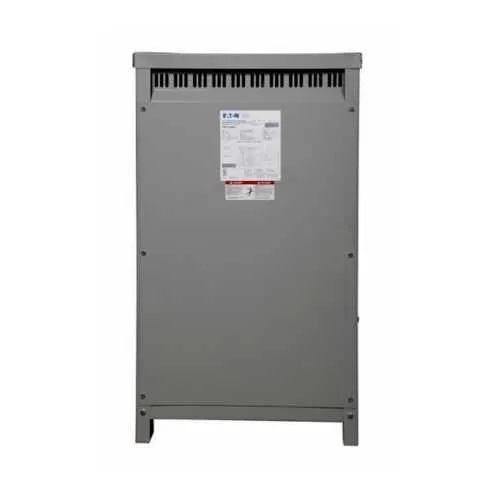

Eaton RT29M11F15CUEEES General purpose transformer - UL
Part Number: RT29M11F15CUEEES
Quick Summary
Eaton general purpose ventilated transformer provides reliable power conversion for marine electrical systems. In marine projects, heat, space constraints, and supply variability often disrupt uptime. This model supports 15 kVA loads with copper windings, 208 V primary and 120/240 V secondary, at 60 Hz, in a compact footprint. The marine-duty design helps reduce heat buildup and prolongs service life, while taps at +2.5% and -2.5% offer voltage regulation for fluctuating supply conditions. It carries ABS Certified and UL Listed certifications, plus NEMA TP-1 efficiency and electrostatic shielding to meet demanding regulatory and safety requirements. For procurement teams, this transformer combines robust protection with straightforward installation and compatibility with standard control panels and lighting circuits, delivering clear business value through uptime and energy efficiency.
Product Information
Extended Description
RT29M11F15CUEEES Eaton: Eaton General purpose ventilated transformer, Marine-duty, DS-3 (1-phase), PV 208V, Taps: 2 at +2.5% /4 at -2.5%, SV 120/240V, 115°C rise, 15 kVA, Copper windings, EE, ES
Product Name
Eaton General purpose ventilated transformer
Catalog Number
RT29M11F15CUEEES
UPC
786680094033
Product Length/Depth
18.39 in
Product Height
31.3 in
Product Width
22.89 in
Product Weight
248 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
ABS Certified UL Listed
Catalog Notes
NEMA TP-1 efficient, Electrostatically Shielded
Coil material
Copper
Enclosure
NEMA 2
Frame
816
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
Marine Duty Transformer
Frequency rating
60 Hz
Primary voltage
208 V
Secondary Voltage
120/240 V
Volt ampere rating
15 kVA
Weathershield
WS11
Marine-duty design with copper windings delivers reliable performance in hot, damp environments. This configuration reduces thermal stress and supports consistent output for critical systems on ships and offshore platforms. Voltage taps at plus or minus 2.5 percent enable quick voltage regulation to accommodate supply variations, improving equipment performance and reducing nuisance trips in control panels. NEMA 2 enclosure paired with WS11 Weathershield provides solid protection in damp, indoor locations and exposed installations, increasing unit longevity and reducing maintenance cycles. With a 15 kVA rating, 208 V primary and 120/240 V secondary, and 60 Hz operation, it aligns with common plant utilities and minimizes integration effort for lighting, motors, and transformers in maritime facilities. Copper windings, certified by ABS and UL, and NEMA TP-1 efficiency ensure regulatory compliance while improving energy efficiency. A one-year warranty (or 18 months from shipment) supports uptime guarantees and lowers total cost of ownership, making it a practical choice for rigorous industrial applications.
Get a Quick Quote for a Eaton RT29M11F15CUEEES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RT29M11F15CUEEES?
Enquire Now
FAQs
Plan for a stable mounting surface and accessible ventilation around the NEMA 2 enclosure. Verify 208 V input and 120/240 V output wiring compatibility with your control panels and lighting circuits. Ensure proper grounding, clear labeling of the +2.5% and -2.5% taps, and adherence to marine installation standards. Maintain required clearances per electrical codes and schedule periodic inspections to monitor heat and humidity exposure in marine environments.
The transformer is rated for 15 kVA with a 208 V primary and 120/240 V secondary, operating at 60 Hz. It features copper windings and taps at +2.5% and -2.5% for voltage regulation. The unit is housed in a NEMA 2 enclosure with WS11 weathershield protection. It meets ABS Certified and UL Listed standards and uses electrostatic shielding to reduce EMI, making it suitable for robust industrial applications.
Yes, the design supports damp indoor environments and exposed installations where moisture is a concern, thanks to the WS11 weathershield and NEMA 2 enclosure. For outdoor exposure, ensure additional protective measures and compliant mounting, as the NEMA 2 rating is intended for indoor and protected areas. ABS UL certifications further reinforce suitability for maritime use.
It carries ABS Certified and UL Listed certifications, aligning with maritime and electrical safety standards. These approvals signal compliance with industry regulations, facilitate procurement for regulated projects, and support risk reduction in mission-critical installations. The NEMA TP-1 efficient rating also indicates energy efficiency benefits that can lower operating costs over the life of the transformer.
The 15 kVA rating suits medium-load applications, supporting reliable power to control panels and lighting with copper windings and robust shielding. The unit’s ABS UL certifications simplify regulatory approvals, while the WS11 protection reduces corrosion and heat-related maintenance. A one-year warranty (or 18 months from shipment) provides a predictable risk envelope, helping frame maintenance schedules and spare part planning.
