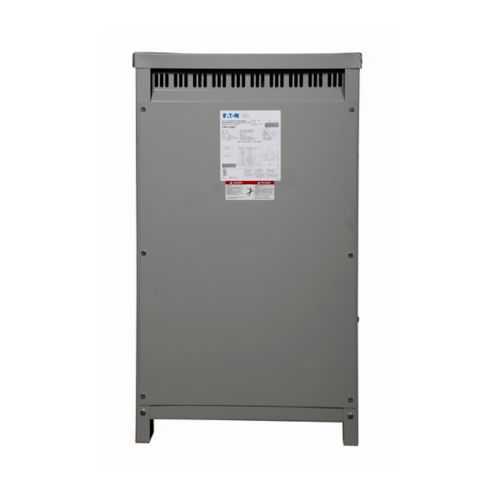

Eaton RT48M12F15CUEEES Transformer - UL Listed
Part Number: RT48M12F15CUEEES
Quick Summary
Eaton RT48M12F15CUEEES is a general purpose ventilated transformer designed for marine-duty power distribution. This single-phase DS-3 unit steps 480 V down to 120 V to support onboard systems while withstanding demanding environments. Engineers often struggle with voltage stability, space constraints, and compliance in harsh marine settings — that’s where a purpose-built transformer adds value. UL Listed and ABS Certified, with NEMA TP-1 efficiency and copper windings, it meets critical safety and performance standards. The combination of a robust enclosure and precise taps helps maintain voltage accuracy across load variations, delivering reliability and reduced wear on connected equipment. This product integrates well with Eaton’s broader marine power distribution ecosystem, enhancing lifecycle performance and maintenance planning.
Product Information
Extended Description
RT48M12F15CUEEES Eaton: Eaton General purpose ventilated transformer, Marine-duty, DS-3 (1-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 120V, 115°C rise, 15 kVA, Copper windings, EE, ES
Product Name
Eaton General purpose ventilated transformer
Catalog Number
RT48M12F15CUEEES
UPC
786680094040
Product Length/Depth
18.39 in
Product Height
31.3 in
Product Width
22.89 in
Product Weight
242 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed ABS Certified
Catalog Notes
NEMA TP-1 efficient, Electrostatically Shielded
Coil material
Copper
Enclosure
NEMA 2
Frame
816
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
Marine Duty Transformer
Frequency rating
60 Hz
Primary voltage
480 V
Secondary Voltage
120 V
Volt ampere rating
15 kVA
Weathershield
WS11
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton Specification Sheet - RT48M12F15CUEEES
Selling Policy 25-000 - Distribution and Control Products and Services
Power rating and electrical specs are designed to deliver predictable performance: a 15 kVA rating with 480 V primary and 120 V secondary supports essential onboard systems while keeping footprint practical for marine panels. The business impact is steadier loads and fewer voltage-related faults, enabling safer equipment operation in constrained spaces. This transformer is ideal for shipboard distribution where space is at a premium and reliability is non-negotiable. Tap changes at +2.5% and -2.5% provide fine voltage regulation, reducing equipment wear and protecting sensitive devices; the application is continuous duty in variable power environments, such as propulsion or ballast systems. Copper windings offer high efficiency and thermal stability, lowering energy losses and maintenance costs over the service life. In critical installations, these design choices translate to lower operating expenses and longer intervals between servicing. The NEMA 2 enclosure supports indoor marine environments, while the WS11 Weathershield option can extend service life in exposed bays; this reduces corrosion risk and downtime during offshore missions. Frame 816 and 18.39 in length enable straightforward mounting in standard panels, with DS-3 single-phase topology simplifying wiring schemes for retrofit projects. Certifications and standards like UL Listed and ABS Certified ensure procurement alignment with stringent regulatory requirements, while a one-year warranty from Eaton provides risk mitigation for capital investments. The result is a compact, robust solution that aligns with industrial power distribution best practices and simplifies spec-to-installation workflows.
Get a Quick Quote for a Eaton RT48M12F15CUEEES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RT48M12F15CUEEES?
Enquire Now
FAQs
Install in a protected, indoor-rated space using the NEMA 2 enclosure as a baseline. The unit is 18.39 in long, 31.3 in high, and 22.89 in wide, with a 242 lb weight, so plan mounting, vibration isolation, and clearance accordingly. Use DS-3 single-phase wiring and verify tap settings during commissioning.
Primary voltage 480 V, secondary voltage 120 V, frequency 60 Hz, and a 15 kVA rating. Taps include 2 at +2.5% and 4 at -2.5% to compensate voltage variation. Copper windings ensure high efficiency, with a copper-wound construction aiding thermal performance and longevity.
Yes. It is designed as a Marine Duty Transformer with a robust NEMA 2 enclosure and copper windings for reliable operation in harsh maritime environments. The unit is UL Listed and ABS Certified, aligning with marine safety standards and facilitating regulatory compliance for onboard power systems.
This transformer is UL Listed and ABS Certified, indicating compliance with safety and marine-specific standards. These certifications reduce procurement risk, support regulatory adherence for shipboard electrical systems, and streamline installation approvals. NEMA TP-1 efficient design notes further enhance energy performance expectations in demanding environments.
Eaton provides a warranty of one year from installation or eighteen months from shipment, whichever occurs first. This warranty, along with Eaton’s sales policy, offers risk mitigation for engineers and procurement teams, while access to Eaton’s datasheets and specification sheets supports ongoing maintenance planning.
