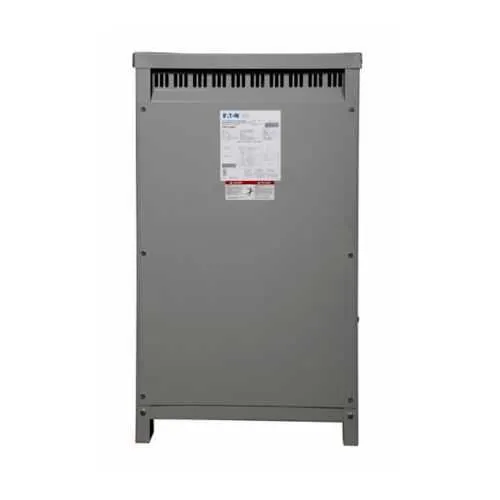

Eaton RT60M11F50CU Ventilated transformer - ABS

Marine duty design with a 50 kVA rating delivers robust power conversion from 600 V primary to 120/240 V secondary. Copper windings improve efficiency and thermal performance, reducing energy losses and heat rise under continuous loading. This makes it ideal for shipboard distribution panels and offshore equipment where reliability matters. Tap options of 2 at +2.5% FCAN and 4 at -2.5% FCBN provide voltage compensation during generator or supply variations. The result is steadier output voltage to critical loads, extended life for connected equipment, and fewer nuisance trips. Engineers can match the transformer to the plant electrical topology in cruising and docking scenarios. Enclosure is NEMA 2 with WS11 weather shield for moisture and dust protection. This combination reduces corrosion risk in damp environments and simplifies compliance with indoor marine spaces. Installation is easier because the unit tolerates typical shipboard vibration and ambient temperature swings. ABS certified and UL Listed ensure compliance with marine classification society rules and electrical safety standards. These certifications support procurement and installation in regulated environments, speeding approval and reducing risk for fleet operators. The product is built to marine-grade expectations while maintaining standard installation practices. Frame 818, dimensions 20.36 in by 37.59 in by 22.89 in, and a 474 lb weight require thoughtful space planning and rigging. The size and weight inform mounting, crane lift planning, and service accessibility. The copper windings and sturdy construction enable longer service life even in tight, vibration-rich spaces. Warranty is one year from installation or eighteen months from shipment, whichever occurs first, providing protection against manufacturing defects. This support aligns with Eaton selling policy and reduces unexpected maintenance costs.
