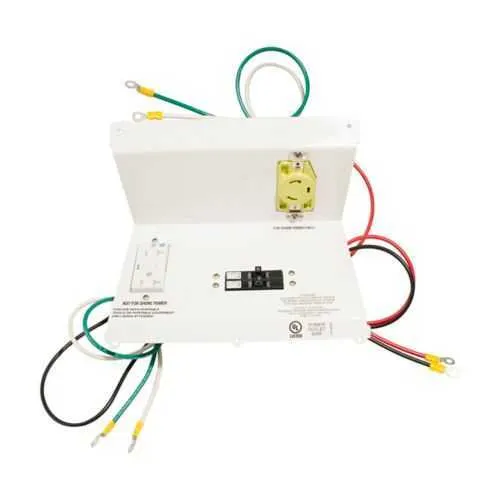

Eaton RV1154A Receptacle Faceplate - UL Listed 30A 250V
Part Number: RV1154A
Quick Summary
RV1154A power pedestal receptacle faceplate is a ready-to-install 30A, 250V outlet solution for outdoor work sites. This module addresses common project delays caused by mismatched faceplates, missing breakers, and mounting incompatibilities. UL Listed safety certification ensures compliance with industry standards, while the included 30A-20GFI faceplate assembly simplifies installation and reduces spare parts. The product aligns with Newport Camp Mate configurations, delivering a proven compatibility path for site infrastructure. By combining a robust faceplate with breakers into a single assembly, it enhances reliability and can lower total cost of ownership. This solution supports procurement efficiency by consolidating components and streamlining maintenance, backed by a 1-year warranty.
Product Information
Extended Description
RV1154A Eaton: Eaton power pedestal receptacle faceplate, Includes 30 A-20GFI faceplate assembly (breakers included), Receptacle faceplates / breaker plates (Newport Camp Mate), 30 A, Newport Camp Mate, 250V
Product Name
Eaton power pedestal receptacle faceplate
Catalog Number
RV1154A
UPC
786685230061
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Product Weight
5 lb
Warranty
1 year limited
Certifications
UL Listed
Catalog Notes
Plastic units take wood screws, stainless steel units take machine screws, stand not included
Special features
Includes 30A-20GFI faceplate assembly (breakers included)
Type
Receptacle faceplates / breaker plates (Newport Camp Mate)
Amperage Rating
30A
Voltage rating
250 V
Feature → Business Impact → Application: Includes 30A-20GFI faceplate assembly with breakers, reducing on-site wiring steps and ensuring immediate functionality at outdoor pedestals; ideal for Newport Camp Mate installations and similar camp-style power distribution. Feature → Compatibility → Application: Receptacle faceplates / breaker plates designed for Newport Camp Mate, delivering a proven mounting interface and faster field deployment in campsites and industrial outdoor setups. Feature → Safety Compliance → Application: UL Listed component package ensures safety compliance and reduces contractor risk, supporting regulatory alignment for outdoor power pedestals. Feature → Compact Form Factor → Application: 1 in L, 1 in H, 1 in W with a 5 lb weight enables easier installation in tight pedestal enclosures and limited-mount spaces. Feature → All-in-One Assembly → Application: Combines faceplate and breaker plates to lower inventory costs and simplify maintenance in utility yards and outdoor facilities. Feature → Installation Notes → Application: Catalog notes state plastic units use wood screws and stainless steel units use machine screws, guiding secure mounting across materials in various environments.
Get a Quick Quote for a Eaton RV1154A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RV1154A?
Enquire Now
FAQs
The RV1154A includes a 30A-20GFI faceplate assembly designed for Newport Camp Mate installations. For plastic units, use wood screws; for stainless steel units, use machine screws. Ensure mounting holes align with your pedestal, tighten screws to spec, and verify the breakers are seated. Refer to the Eaton specification sheet for exact screw types and torque values.
Yes. The RV1154A is rated for 30A, 250V and includes a 30A-20GFI faceplate assembly with breakers, simplifying setup and ensuring immediate operability in outdoor power pedestals, particularly within Newport Camp Mate configurations.
This faceplate is well suited for outdoor work sites, campsites, and outdoor pedestal installations where Newport Camp Mate compatibility is required. Its compact dimensions and included breakers reduce on-site assembly time and inventory while delivering dependable power distribution in rugged environments.
The RV1154A carries UL Listed safety certification, ensuring compliance with established electrical standards. It also comes with a 1 year limited warranty, providing reassurance on long-term performance and support.
The unit measures 1 inch in length, height, and width, and weighs 5 lb. Its compact size supports tight mounting spaces in pedestal enclosures, potentially reducing enclosure size requirements and installation time, which translates to lower labor costs and improved site efficiency.
