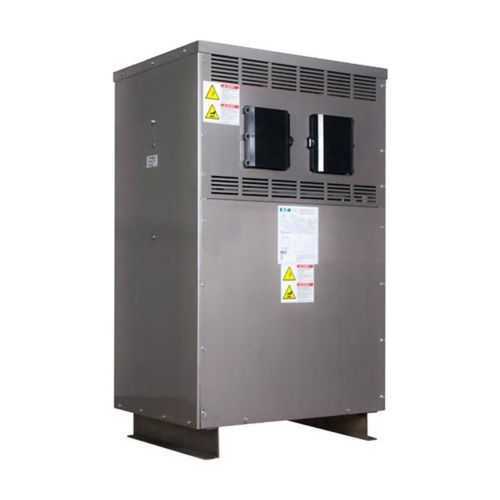

Eaton RV48M28F1216PDSD Integrated Transformer UL Listed
Part Number: RV48M28F1216PDSD
Quick Summary
The Eaton Breaker integrated ventilated transformer delivers compact, reliable step-down power for industrial control panels. Engineers often struggle with space constraints and the challenge of coordinating separate protection and transformer components in one enclosure. This unit meets DOE2016 Efficient standards and is UL Listed, supporting regulatory compliance and safer operation. With aluminum construction and a robust FR943DD frame, it reduces installation time and BOM complexity while enabling scalable, service-friendly maintenance for modern facilities.
Product Information
Extended Description
RV48M28F1216PDSD Eaton: Eaton Breaker integrated ventilated transformer, 112.5 Kva, BRKR INTEG XFMR, 3PH, 480-208Y/120, 115C Rise, Aluminum, DOE 2016, Primary and secondary breakers
Product Name
Eaton Breaker integrated ventilated transformer
Catalog Number
RV48M28F1216PDSD
UPC
786689586836
Product Length/Depth
31.5 in
Product Height
59.52 in
Product Width
34.5 in
Product Weight
1175 lb
Compliances
DOE2016 Efficient
Certifications
UL Listed
Frame
FR943DD
Feature → Integrated protection and ventilated cooling provides safer operation while simplifying installation; Business Impact → Reduces wiring complexity, improves heat management, and shortens panel build time; Application → Ideal for MCCs and machine control panels in harsh industrial environments. Feature → DOE 2016 Efficient compliance improves energy performance; Business Impact → Lowers operating costs over the life of the installation; Application → Suitable for facilities prioritizing energy efficiency in motor drives and process automation. Feature → 3-phase 480-208Y/120 V with primary and secondary breakers; Business Impact → Eliminates separate protective devices, reduces BOM, and accelerates commissioning; Application → Supports compact switchgear and integrated power distribution in manufacturing lines. Feature → Aluminum enclosure and FR943DD frame; Business Impact → Enhances corrosion resistance and structural integrity while maintaining a manageable footprint; Application → Fits tight spaces in production floors and control rooms. Feature → Ventilated cooling for higher reliability; Business Impact → Maintains transformer temperature under peak loads, extending service life; Application → Important for continuous operation in hot environments and enclosed spaces.
Get a Quick Quote for a Eaton RV48M28F1216PDSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RV48M28F1216PDSD?
Enquire Now
FAQs
What mounting footprint and clearance does the RV48M28F1216PDSD require, and is it compatible with FR943DD frames? The unit is 31.5 in long, 59.52 in high, and 34.5 in wide with a 1175 lb weight, designed for 3-phase 480 V upstream and 208Y/120 V downstream. Ensure adequate ventilation and allow space for primary/secondary breaker access for safe installation.
The RV48M28F1216PDSD delivers 112.5 kVA at 3-phase operation with a primary voltage of 480 V and secondary of 208Y/120 V. It features a 115C rise rating and DOE 2016 Efficient compliance, with UL Listed protection and integrated breakers for streamlined power distribution in industrial settings.
Yes. The integrated breaker design, ventilated cooling, and 3-phase 480-208Y/120 V capability make it ideal for industrial control panels and motor control centers. The aluminum enclosure and FR943DD frame support rugged, long-term operation in harsh environments while reducing assembly time in panel builds.
The RV48M28F1216PDSD is UL Listed and complies with DOE2016 Efficient standards. These certifications support regulatory approvals for safety and energy performance in commercial and industrial facilities, helping streamline procurement and commissioning.
Integrated primary and secondary breakers minimize BOM complexity, simplify wiring, and reduce field assembly time. This leads to lower labor costs, faster startup, and improved uptime. The ventilated design helps maintain reliability under load, contributing to a shorter payback period in facilities with frequent downtime concerns.
