Eaton RV48M28T2216PDSD Breaker Transformer DOE2016
Part Number: RV48M28T2216PDSD
Quick Summary
RV48M28T2216PDSD is a breaker-integrated transformer designed for high-availability power feeds in industrial facilities. This design helps minimize unplanned downtime by combining transformer and protective breakers in one enclosure, simplifying wiring and maintenance. UL Listed safety certification, DOE2016 Efficient rating, and 150°C rise enable reliable operation under demanding environments while meeting regulatory and energy targets. For engineers and procurement teams, this integrated solution reduces spare parts diversity and installation complexity, delivering a clearer BOM, faster commissioning, and improved lifecycle cost. Its substantial 225 kVA rating supports scalable feeder designs, reducing future upgrades. The aluminum construction and DOE2016 efficiency align with modern sustainability goals.
Product Information
Extended Description

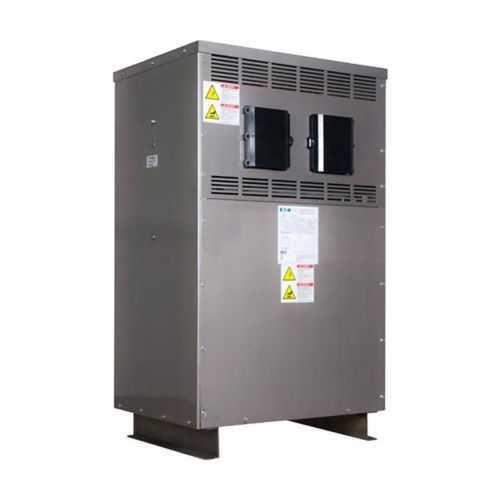

RV48M28T2216PDSD Eaton: Eaton Breaker integrated ventilated transformer, 225 Kva, BRKR INTEG XFMR, 3PH, 480-208Y/120, 150C Rise, Aluminum, DOE 2016, Primary and secondary breakers
Product Name
Eaton Breaker integrated ventilated transformer
Catalog Number
RV48M28T2216PDSD
UPC
786689587024
Product Length/Depth
33.7 in
Product Height
68.54 in
Product Width
38 in
Product Weight
1735 lb
Compliances
DOE2016 Efficient
Certifications
UL Listed
Frame
FR944DD
Feature → Business Impact → Application: The RV48M28T2216PDSD combines a high-availability 225 kVA transformer with integrated primary and secondary breakers, reducing panel footprint and wiring complexity while improving protective coordination. This consolidation translates to lower installation time, fewer field terminations, and improved fault isolation, which directly lowers downtime risk in critical lines and manufacturing sections. Application: suitable for data centers, processing plants, and large automation lines where dependable power distribution is essential. Feature → Business Impact → Application: DOE2016 Efficient rating ensures energy-conscious operation, enabling energy cost reductions over the system’s life and helping facilities meet corporate sustainability goals. Application: ideal for plants pursuing energy-performance benchmarking and regulatory compliance. Feature → Business Impact → Application: 150°C rise insulation supports continuous-load operation under hot plant conditions, improving reliability in harsh environments. Application: suitable for alternative cooling strategies and summer peak conditions. Feature → Business Impact → Application: Aluminum construction provides robust, corrosion-resistant framing with lighter weight than equivalent copper-based solutions, facilitating installation and service. Application: retrofit projects and new builds requiring durable, long-life equipment. Feature → Business Impact → Application: UL Listed certification simplifies procurement and commissioning by meeting widespread electrical safety standards. Application: critical for industrial installations requiring formal safety approvals. Feature → Business Impact → Application: FR944DD frame, combined with ventilated cooling, supports compact packaging with good thermal management. Application: space-constrained switchgear rooms and prefabricated distribution panels.
Get a Quick Quote for a Eaton RV48M28T2216PDSD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RV48M28T2216PDSD?
Enquire Now
FAQs
Installers should plan for a heavy unit (1735 lb) mounted in a suitable enclosure with the FR944DD frame. Ensure adequate ventilation to leverage the ventilated transformer design, provide space for wiring access to the primary and secondary breakers, and accommodate the 33.7 inch depth, 68.54 inch height, and 38 inch width. Align mounting with floor or rack supports and verify 480-208Y/120 V three‑phase input/output across safe clearances. Include protective devices and labeling consistent with UL Listed requirements.
Yes. The model is specified for 3P systems with a 480-208Y/120 V configuration, enabling direct feed to common industrial loads. The integrated primary and secondary breakers simplify wiring and protection coordination, reducing external switchgear and simplifying panel layouts. When planning, confirm bus bar arrangements and clearances in accordance with NEC and UL guidelines, and ensure proper sizing for inrush and continuous load profiles.
This unit is UL Listed and carries the DOE2016 Efficient rating. UL Listing confirms adherence to safety standards for electrical equipment, while DOE2016 demonstrates energy efficiency targets. These certifications streamline procurement, regulatory approvals, and ongoing maintenance programs, helping meet corporate sustainability initiatives and reducing lifecycle costs through energy savings.
The integration of primary and secondary breakers with the transformer reduces parts diversity, simplifying spares management and stocking. Fewer field terminations and a smaller installation footprint shorten commissioning times and limit post-install adjustments. The design improves fault isolation, so outages are easier to diagnose and restore, translating to lower maintenance labor costs and improved overall equipment efficiency (OEE).
Expect significant weight and footprint; plan for crane or pallet jack-assisted placement and secure anchoring. Ensure adequate ventilation and room for service access around the enclosure. Mitigate by scheduling shutdown windows in advance, coordinating with electrical and mechanical teams, and using the specified FR944DD frame for compatibility. Ensure properly rated feeders, protective relays, and label compliance to meet UL and DOE2016 requirements.
