Eaton S20N11S25N General-Purpose Transformer - UL Listed
Part Number: S20N11S25N
Quick Summary
General purpose encapsulated transformer is designed to reliably convert 240/480 V mains to 120/240 V control voltages for industrial systems. Operators face challenges with weather exposure, space constraints, and mismatched voltages in retrofits. UL Listed certification ensures safety compliance, and a rugged NEMA 3R enclosure supports reliable indoor-outdoor operation. This model also integrates well with standard panel layouts and 25 kVA capacity, delivering consistent power for machine controls, lighting, and distribution boards. For engineers and procurement teams, the combination of compact footprint, robust construction, and end-to-end Eaton support translates into lower installation risk and predictable lifecycle costs. The product aligns with modern power-management expectations while fitting existing automation architectures.
Product Information
Extended Description
S20N11S25N Eaton: Eaton, general purpose encapsulated transformer, ep, single-phase, pv: 240 x 480v, taps: none, sv: 120/240v, 115°c, 25 kva, al windings, frame: 182, indoor-outdoor-
Product Name

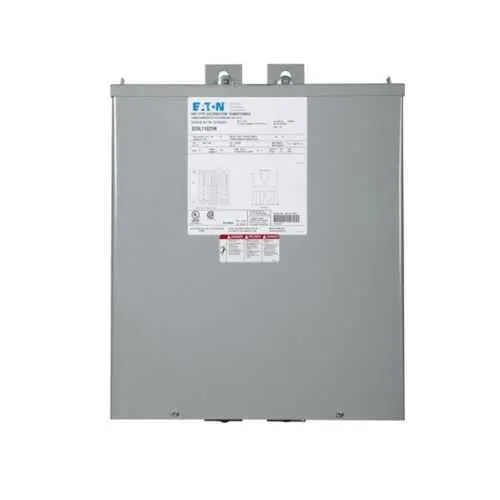

Eaton General purpose encapsulated transformer
Catalog Number
S20N11S25N
UPC
786680108839
Product Length/Depth
20 in
Product Height
20.2 in
Product Width
25 in
Product Weight
385 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
182
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
3A
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
240 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
25 kVA
Weathershield
Indoor-Outdoor
Single-phase 25 kVA transformer with aluminum windings and an EP encapsulated design delivers robust reliability and simplified maintenance, reducing unplanned downtime in critical lines. This configuration supports consistent voltage conversion from 240/480 V to 120/240 V, enabling common control circuits without extra transformers. The rugged NEMA 3R enclosure provides indoor-outdoor protection, lowering enclosure costs and enabling outdoor installations near equipment. Frame 182 and a compact footprint help fit the unit into tight panel spaces, while the 385 lb weight offers solid mechanical stability during mounting. A 60 Hz, 25 kVA transformer with no taps (3A wiring) minimizes field-adjustment steps and speeds up installation. UL Listed certification further enhances safety compliance and supplier support for industrial automation projects. These features collectively reduce total installed cost and improve lifecycle performance for distribution panels and control systems.
