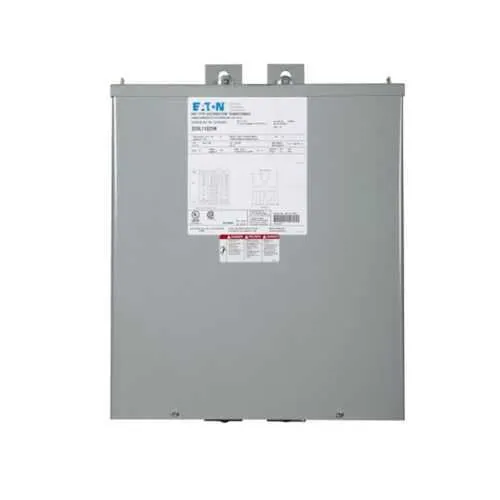

Eaton S24N24E25N Transformer - UL Listed, 25 kVA
Part Number: S24N24E25N
Quick Summary
Eaton S24N24E25N transformer provides reliable power conversion for general purpose use in industrial control panels and automation cabinets. Engineers often face space constraints, weather exposure, and safety compliance challenges when selecting a transformer for panel builds. This unit features UL Listed safety and a rugged NEMA 3R enclosure suitable for indoor-outdoor service, supporting 60 Hz single-phase operation with a 25 kVA rating. The combination of aluminum coil construction and electrostatic shielding helps manage heat and EMI. For panel builders and OEMs, this means easier installation, longer service life, and lower lifecycle costs while maintaining strict performance and protection standards.
Product Information
Extended Description
S24N24E25N Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 182, 60 Hz, single-phase, 240 V, 240 V, NONE, 115 °C rise, 25 KVA, indoor-outdoor, 77C
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S24N24E25N
UPC
786680108617
Product Length/Depth
14.12 in
Product Height
23.31 in
Product Width
16.35 in
Product Weight
372 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
182
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
77C
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
240 V
Secondary Voltage
240 V
Temperature rise
115 °C rise
Volt ampere rating
25 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
Feature: General-purpose encapsulated transformer with aluminum coil. Business Impact: Improves heat dissipation and durability, reducing maintenance cycles and increasing uptime in demanding environments. Application: Ideal for machine control panels and distributed power in manufacturing lines. Feature: NEMA 3R enclosure with indoor-outdoor suitability. Business Impact: Enables reliable operation across variable ambient conditions without additional enclosure costs. Application: Plants with outdoor sections or damp areas where protection from weather is essential. Feature: 60 Hz, single-phase, 240 V primary and 240 V secondary, 25 kVA rating. Business Impact: Simplifies integration with standard plant distribution and loads, minimizing configuration changes and downtime. Application: Powering controls, sensors, and panel feeders in automation and process environments. Feature: Electrostatically shielded construction. Business Impact: Reduces EMI coupling to nearby equipment, improving signal integrity and control reliability. Application: Robotics cells and precision automation where EMI sensitivity matters. Feature: Frame 182, coil material aluminum, and 115 °C rise rating. Business Impact: Compact footprint with robust thermal performance supports dense panel layouts and longer service life under continuous duty. Application: Industrial switchgear, control centers, and integrated power distribution modules. Feature: Warranty and certification alignment (UL Listed). Business Impact: Streamlines procurement and compliance documentation, accelerating project approvals. Application: OEMs and integrators seeking verified safety credentials and reliable supplier support.
