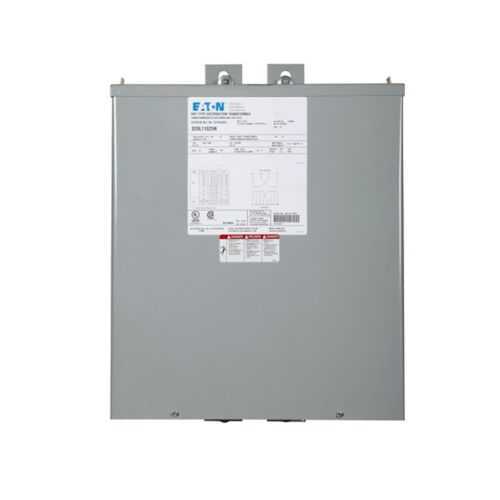

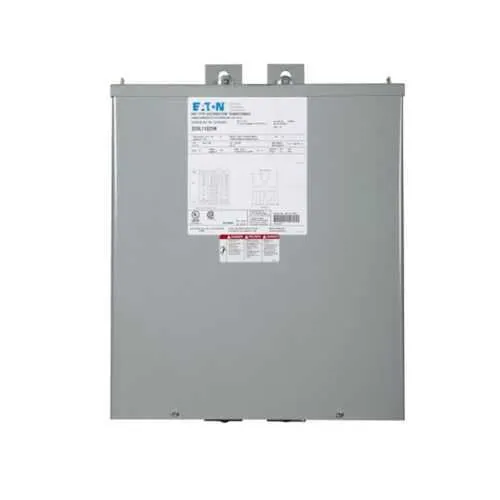

Eaton S60M11S25N Transformer - 25 kVA UL Listed
Part Number: S60M11S25N
Quick Summary
The Eaton S60M11S25N transformer provides reliable power isolation for industrial panels and equipment. Engineers often wrestle with space constraints, environmental exposure, and the challenge of mounting robust transformers in busy facilities. It carries UL Listed safety certification and is housed in a NEMA 3R enclosure for indoor-outdoor service, with an aluminum coil designed for durability. This transformer supports 25 kVA at 60 Hz with a 600 V primary and 120/240 V secondary, enabling efficient distribution from standard power systems. By combining rugged construction with precise voltage regulation taps, it helps you shrink install time, reduce maintenance, and improve overall uptime while aligning with your power-management strategy.
Product Information
Extended Description
S60M11S25N Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 132, 60 Hz, single-phase, 600 V, 120/240 V, 2 at +2.5% FCAN, 4 at -2.5% FCBN, 115 °C rise, 25 KVA, indoor-outdoor, 83B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60M11S25N
UPC
786680120244
Product Length/Depth
13.59 in
Product Height
20.67 in
Product Width
19.02 in
Product Weight
395 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
132
Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
83B
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
25 kVA
Weathershield
Indoor-Outdoor
