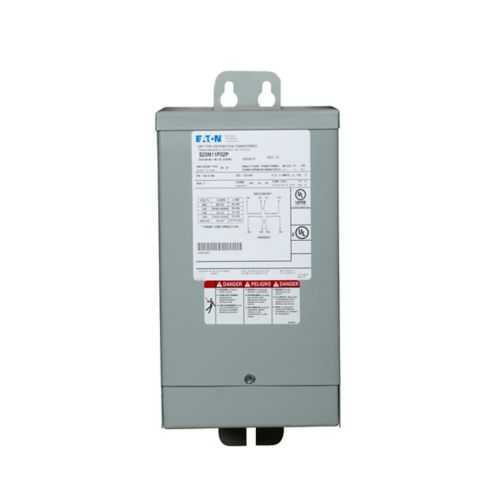

Eaton S60N11B02 Encapsulated Transformer - UL Listed
Part Number: S60N11B02
Quick Summary
Eaton S60N11B02 encapsulated transformer provides reliable, compact power conversion for control panels and industrial equipment. In modern automation environments, space constraints and exposure to dust, moisture, or temperature swings can drive maintenance costs and downtime. This unit is UL Listed and features a rugged NEMA 3R enclosure, designed for indoor-outdoor service, along with aluminum winding and a 2 kVA rating. With a 600 V primary and 120/240 V secondary operating at 60 Hz, it supports scalable control circuits while meeting industry standards. The combination delivers predictable performance, simplified installation, and lower total cost of ownership for manufacturers and service teams.
Product Information
Extended Description
S60N11B02 Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 176, 60 Hz, single-phase, 600 V, 120/240 V, NONE, 80 °C rise, 2 KVA, indoor-outdoor, 524B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N11B02
UPC
786680097423
Product Length/Depth
8 in
Product Height
14.25 in
Product Width
7.69 in
Product Weight
75 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
176
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
524B
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Temperature rise
80 °C rise
Volt ampere rating
2 kVA
Weathershield
Indoor-Outdoor
Feature: General-purpose encapsulated design with aluminum windings → Business Impact: Improves durability, reduces thermal buildup, and enhances efficiency in everyday operation → Application: Suitable for control panels and process equipment in challenging environments. Feature: NEMA 3R enclosure with indoor-outdoor capability → Business Impact: Enables safe outdoor installations and protection from weather elements, reducing enclosure clutter and wiring runs → Application: Outdoor automation skids and exposed panel sites. Feature: 2 kVA rating with 600 V primary and 120/240 V secondary → Business Impact: Supports multiple control circuits from a single transformer, lowering part counts and installation time → Application: Industrial drives, PLCs, and logic modules in manufacturing lines. Feature: 60 Hz, single-phase operation with aluminum coil material → Business Impact: Consistent AC performance and improved thermal management for steady equipment uptime → Application: Standard power conditioning for automation assets in plants. Feature: Weathershield Indoor-Outdoor and UL Listed → Business Impact: Compliance and safety verification streamline procurement and inspection cycles → Application: Facilities requiring regulatory assurance and durable outdoor-ready transformers. Feature: 8 in depth, 14.25 in height, 7.69 in width with a 75 lb weight → Business Impact: Manageable footprint and practical handling for field upgrades and retrofit projects → Application: Machine upgrades and panel replacements without extensive rework.
Get a Quick Quote for a Eaton S60N11B02
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N11B02?
Enquire Now
FAQs
The S60N11B02 uses a rugged NEMA 3R enclosure suitable for indoor-outdoor service, with dimensions of 8 in depth, 14.25 in height, and 7.69 in width. Weighing 75 lb, it ships with a 524B wiring connection and aluminum coil. Plan for a single-phase 60 Hz system, 600 V primary and 120/240 V secondary, and ensure adequate clearance for ventilation and service access.
Key specs include a 2 kVA volt-ampere rating, 60 Hz frequency, single-phase design, and a 600 V primary with a 120/240 V secondary. The transformer utilizes aluminum windings and has an 80 °C rise rating. Designed for indoor-outdoor use, it is UL Listed and suitable for standard control circuits in automation installations.
Yes. The S60N11B02 is rated for indoor-outdoor service with a NEMA 3R enclosure and Weathershield capability, making it well-suited for outdoor or harsh indoor applications. Its 2 kVA capacity supports typical control panels and PLC power needs, while UL Listed certification provides safety assurance for industrial environments.
This transformer carries UL Listed certification, a key safety standard for electrical equipment. The NEMA 3R enclosure rating also indicates weather resistance for outdoor deployment. Together, these certifications simplify procurement, ensure safety compliance, and reduce risk in regulated industrial environments.
Eaton provides a one-year limited warranty from installation or eighteen months from shipment, whichever comes first. The epoxy-encapsulated design with aluminum windings minimizes maintenance needs, contributes to reliable uptime, and lowers lifecycle costs. For retrofit projects, its compact footprint and straightforward wiring (524B) help speed installation and reduce downtime.
