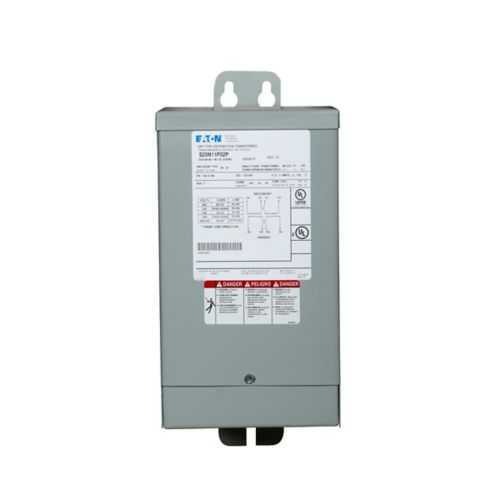

Eaton S60N11B16 General-Purpose Encapsulated Transformer - UL Listed
Part Number: S60N11B16
Quick Summary
Eaton S60N11B16 is a general-purpose encapsulated transformer for indoor-outdoor power distribution. When projects demand reliable voltage conversion with a compact footprint, this unit helps prevent voltage drop and overheating by delivering 1.5 kVA at 600 V primary and 120/240 V secondary. UL Listed certification and rugged NEMA 3R enclosure ensure safe, durable operation in harsh environments, reducing maintenance cycles and downtime. The aluminum coil, 2 at -5% FCBN taps, and 60 Hz rating support stable performance across typical plant loads. For procurement and engineering teams, the combination of reliability, ease of installation, and compatibility with standard low-voltage distribution equipment translates to faster project delivery and lower lifecycle costs.
Product Information
Extended Description
S60N11B16 Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 68, 60 Hz, single-phase, 600 V, 120/240 V, 2 at -5% FCBN, 80 °C rise, 1.5 KVA, indoor-outdoor, 524B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N11B16
UPC
786680094248
Product Length/Depth
6.52 in
Product Height
13.41 in
Product Width
6.37 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
68
Tap size
2 at -5% FCBN
Type
General-Purpose Encapsulated Transformer
Wiring connection
524B
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Temperature rise
80 °C rise
Volt ampere rating
1.5 kVA
Weathershield
Indoor-Outdoor
Feature: 1.5 kVA, 60 Hz, 600 V primary and 120/240 V secondary. Business Impact: Enables reliable step-down for control panels and auxiliary circuits, reducing voltage mismatch risks while supporting scalable plant distribution. Application: Suitable for industrial automation panels and distributed power networks in manufacturing facilities. Feature: NEMA 3R enclosure with indoor-outdoor suitability. Business Impact: Provides weather resistance and durable installation in variable environments, lowering enclosure procurement and integration time. Application: Outdoor cabinets, damp environments, and rugged plant floors. Feature: Aluminum coil winding. Business Impact: Lighter weight and corrosion resistance contribute to simpler handling and potentially lower lifecycle costs compared to copper windings in appropriate applications. Application: Routine installations in high-humidity or dusty production areas. Feature: Tap size 2 at -5% FCBN. Business Impact: Voltage regulation capability improves compatibility with panel loads and helps maintain regulated output under supply variations. Application: Control circuits and lighting feeders with tight voltage tolerances. Feature: 1.5 kVA VA rating with 60 Hz operation. Business Impact: Aligns with common industrial loads, enabling predictable performance without oversizing, which lowers space and cooling requirements. Application: General-purpose step-down for plant equipment and sensing networks. Feature: Aluminum coil, 524B wiring connection. Business Impact: Supports reliable electrical connections and ease of field wiring in standard distribution gear. Application: Wiring to standard low-voltage distribution components in control rooms and equipment cabinets.
Get a Quick Quote for a Eaton S60N11B16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N11B16?
Enquire Now
FAQs
The S60N11B16 is designed for indoor-outdoor service with a NEMA 3R enclosure, making it ideal for control rooms, outdoor cabinets, and rugged factory environments. Its 60 Hz operation supports standard plant power, while the 1.5 kVA rating covers common distribution needs without oversized equipment.
Key specs include a 600 V primary and 120/240 V secondary, single-phase configuration, aluminum coil, 2 at -5% FCBN taps, 60 Hz frequency, and an 80 °C rise with a 1.5 kVA output. This combination suits general plant loads, ensuring stable voltage under typical fluctuations.
Yes, the S60N11B16 is UL Listed, indicating conformity with recognized safety standards for electrical transformers. This certification supports safer installation, easier procurement, and smoother audits, while the EP design and enclosure contribute to reliable operation in challenging environments.
Yes. The indoor-outdoor Weathershield and NEMA 3R enclosure are designed for outdoor cabinet use and humid or dirty environments. Ensure proper enclosure sealing and clearances according to installation guidelines to maximize reliability and service life.
Warranty follows Eaton policy 25-000: one year from installation or eighteen months from shipment, whichever comes first. Eaton provides datasheets and technical support to assist with commissioning, replacement parts, and on-site troubleshooting, helping manage lifecycle costs and uptime.
