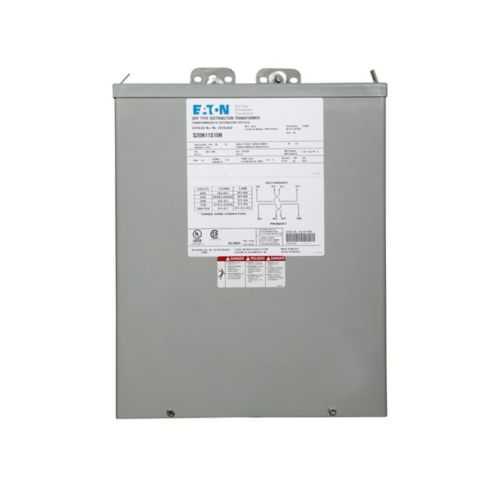

Eaton S60N11S15CU General Transformer - UL Listed
Part Number: S60N11S15CU
Quick Summary
The Eaton S60N11S15CU general transformer delivers reliable voltage conversion for control panels and industrial equipment. Facilities often struggle with moisture, outdoor exposure, and downtime due to underspecified power components; this transformer is designed to endure harsh environments while delivering consistent performance. With UL Listed and CSA Certified safety verification and a robust NEMA 3R enclosure, it supports indoor-outdoor installation and compliance requirements. Designed for versatility, it pairs a compact footprint with a 60 Hz single-phase capability, helping engineers optimize space, reduce inventory, and improve project economics across automation and distribution applications.
Product Information
Extended Description
S60N11S15CU Eaton: Eaton General purpose encapsulated transformer, EP, copper, NEMA 3R, 180, 60 Hz, single-phase, 600 V, 120/240 V, None, 115 °C rise, 15 KVA, indoor-outdoor, 524B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N11S15CU
UPC
786680104022
Product Length/Depth
10.52 in
Product Height
19 in
Product Width
13.38 in
Product Weight
421 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Coil material
Copper
Design
EP
Enclosure
NEMA 3R
Frame
180
Tap size
None
Type
General-purpose encapsulated transformer
Wiring connection
524B
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Weathershield
Indoor-Outdoor
Feature Copper-wound coil and general-purpose encapsulated design → Business Impact Enhanced electrical efficiency and durability with copper windings improve load handling and longevity, reducing replacement frequency; Application Suitable for demanding control panels and motor interfaces in automation projects. Feature NEMA 3R enclosure for indoor-outdoor use → Business Impact Weather resistance minimizes weather-related failures and downtime; Application Ideal for outdoor panels and exposed installations in industrial settings. Feature 15 kVA VA rating with 600 V primary and 120/240 V secondary → Business Impact Enables consolidated power distribution, lowering project costs and space requirements; Application Fits medium-load applications in distribution centers and equipment enclosures. Feature 115 °C rise, copper construction, 524B wiring → Business Impact Higher temperature tolerance and reliable wiring configuration reduce derating and maintenance; Application Supports rugged environments and easier installation in retrofit or new builds. Feature Compact 180 frame with 10.52 in L, 13.38 in W, 19 in H and 421 lb weight → Business Impact Manageable footprint with solid mounting and handling for field and shop assembly; Application Facilitates installation in restricted spaces and retrofits without major structural changes. Feature Certifications UL Listed, CSA Certified → Business Impact Strong compliance signals for procurement and risk management; Application Streamlines sourcing for regulated industries and end-users.
Get a Quick Quote for a Eaton S60N11S15CU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N11S15CU?
Enquire Now
FAQs
Because the unit uses a NEMA 3R enclosure and is rated for indoor-outdoor use, install it on a stable, vibration-free surface with proper clearance for cooling and wiring access. Ensure weather exposure is managed and follow local electrical codes during mounting, termination, and grounding procedures.
Primary voltage is 600 V with a 120/240 V secondary, and the transformer is a 60 Hz, single-phase device rated at 15 kVA. It uses copper windings and a 524B wiring connection, with a 115 °C temperature rise and a NEMA 3R enclosure for versatile installation.
Yes. The transformer is UL Listed and CSA Certified, reflecting safety and reliability for industrial deployments. It carries a one-year warranty from installation or eighteen months from shipment, whichever occurs first, per Eaton’s policy.
Ideal for control panels, equipment enclosures, and machine power supplies in manufacturing and process environments. Its 600 V to 120/240 V output, 60 Hz single-phase operation, and 15 kVA rating support moderate-load power distribution with a compact footprint.
Leverage its copper windings and robust NEMA 3R enclosure to maximize uptime in variable conditions. Regular checks should include insulation integrity, connections, and enclosure seals, with attention to ambient temperature limits to prevent derating and ensure continued compliance with safety standards.
