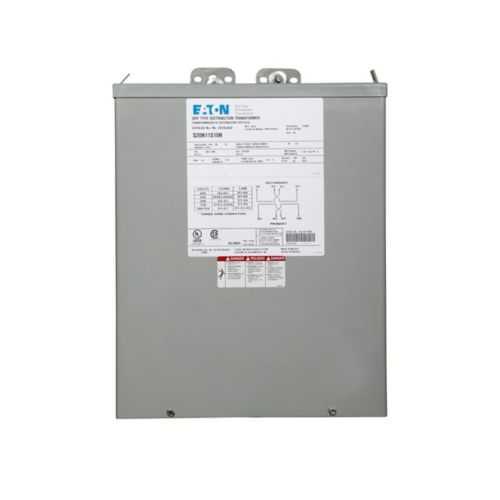

Eaton S60N11S15N General-Purpose Transformer - UL Listed
Part Number: S60N11S15N
Quick Summary
The Eaton S60N11S15N encapsulated transformer provides reliable single‑phase power for industrial control panels. Facilities often face outdoor exposure, space constraints, and maintenance-heavy equipment; this unit’s epoxy encapsulation and NEMA 3R enclosure help reduce risk and simplify installation. UL Listed safety certification, a rugged NEMA 3R rating for indoor-outdoor use, and Eaton’s warranty policy provide strong lifecycle value for critical power applications. With a 15 kVA rating at 60 Hz and a 600 V to 120/240 V configuration, it supports efficient energy distribution across modern facilities while integrating with existing control systems and distribution networks.
Product Information
Extended Description
S60N11S15N Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 180, 60 Hz, single-phase, 600 V, 120/240 V, NONE, 115 °C rise, 15 KVA, indoor-outdoor, 524B
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N11S15N
UPC
786680101557
Product Length/Depth
10.52 in
Product Height
19 in
Product Width
13.38 in
Product Weight
210 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Model N
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
180
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
524B
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Weathershield
Indoor-Outdoor
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton Specification Sheet - S60N11S15N
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The S60N11S15N uses a general-purpose encapsulated design with an aluminum coil, delivering moisture and dust resistance that reduces maintenance cycles and extends service life in harsh plant environments. This translates to lower operating costs and fewer unexpected outages in automation panels and motor control centers. Application: suitable for control panels and distribution boards in manufacturing facilities where reliability and compact form factor matter. Feature → Business Impact → Application: The NEMA 3R enclosure enables indoor-outdoor deployment, allowing outdoor equipment racks, substations, and exterior control cabinets to share a single, common transformer solution, reducing equipment footprint and installation time. Application: outdoor installations and remote sites. Feature → Business Impact → Application: With 60 Hz single-phase operation and a 600 V primary to 120/240 V secondary, the transformer delivers flexible power conversion for PLCs, drives, and auxiliary loads, simplifying panel design and reducing the need for multiple step-down devices. Application: machine tools and automation lines. Feature → Business Impact → Application: The 15 kVA rating supports larger load demands, enabling you to consolidate transformers across a line and lower total cost of ownership while maintaining regulation within electrical rooms. Application: high-load control circuits and distribution feeders. Feature → Business Impact → Application: 524B wiring connection compatibility ensures seamless integration with legacy wiring schemes and modern panels, accelerating commissioning and reducing re-wiring during upgrades. Application: retrofits and new builds. Feature → Business Impact → Application: UL Listed certification and a clear Eaton warranty (1 year from installation or 18 months from shipment) provide risk mitigation and procurement confidence, supporting compliance workflows and supplier reliability. Application: regulated electrical projects and capital expenditures.
Get a Quick Quote for a Eaton S60N11S15N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N11S15N?
Enquire Now
FAQs
The S60N11S15N is designed for 60 Hz operation with a 600 V primary and a 120/240 V secondary. It provides a single-phase, 15 kVA power conversion suitable for control panels, distribution, and automation gear, while maintaining a compact footprint and UL Listed safety compliance.
Leverage the NEMA 3R enclosure for outdoor or damp locations to protect internal windings. Ensure proper ventilation around the unit, maintain clearance for heat dissipation, and use appropriate wiring practices with the 524B connection. Mounting should follow standard electrical codes and Eaton recommendations.
Ideal for control panels, machine feeders, and general distribution within production lines. Its 15 kVA rating supports higher loads, reducing the need for multiple transformers, while the 600 V to 120/240 V outputs streamline panel design and minimize wiring complexity.
The transformer is UL Listed for safety compliance and backed by Eaton’s warranty policy 25-000, which provides one year from installation or eighteen months from shipment, whichever occurs first. This supports procurement decisions and ongoing maintenance planning.
Verify model S60N11S15N, 60 Hz, single-phase, primary 600 V, secondary 120/240 V, 15 kVA rating, enclosure NEMA 3R, coil aluminum, wiring 524B, temperature rise 115 °C, and dimensions 10.52 in L × 13.38 in W × 19 in H with a 210 lb weight. Also confirm UL Listed status and indoor-outdoor suitability.
