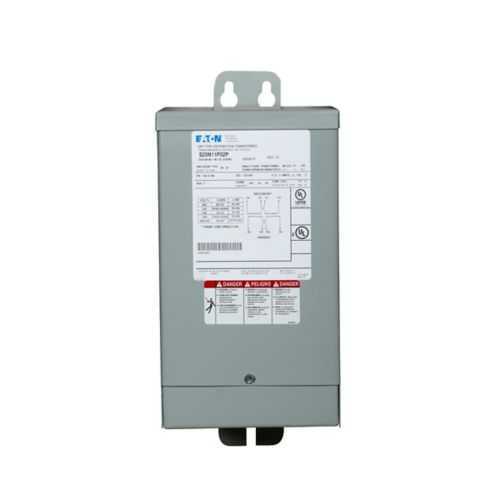

Eaton S60N24S02 General-Purpose Encapsulated Transformer - UL Listed
Part Number: S60N24S02
Quick Summary
Eaton S60N24S02 is a general-purpose encapsulated transformer designed for reliable power conversion in control panels, small machines, and switchgear assemblies. It addresses the common challenge of placing a compact, dependable transformer in constrained panels while facing variable environmental conditions. The UL Listed device features a rugged NEMA 3R enclosure and 60 Hz single-phase operation, ensuring compatibility with standard industrial infrastructure. With a 2 kVA rating and aluminum coil, it balances performance and weight for easier installation and service. This transformer supports scalable automation projects, OEM builds, and upgrade paths where dependable voltage transformation and long service life matter most.
Product Information
Extended Description
S60N24S02 Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 68, 60 Hz, single-phase, 600 V, 240 V, NONE, 115 °C rise, 2 KVA, indoor-outdoor, 511AQ
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N24S02
UPC
786680065033
Product Length/Depth
6.52 in
Product Height
13.41 in
Product Width
6.37 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
68
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
511AQ
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
240 V
Temperature rise
115 °C rise
Volt ampere rating
2 kVA
Weathershield
Indoor-Outdoor
Feature → Business Impact → Application: General-purpose encapsulated design provides rugged reliability in compact form, reducing panel footprint and simplifying installation; the impact is streamlined wiring and faster commissioning for machine builders and panel shops. Application includes control panels, small automation machines, and OEM equipment where space is at a premium. Feature → 60 Hz, single-phase operation with 600 V primary and 240 V secondary delivers straightforward compatibility with common industrial power architectures; the business impact is consistent voltage regulation and reduced mismatch risks during startup, minimizing downtime in new lines and retrofits. Application spans packaging lines, conveyors, and automation skids that require dependable step-down power. Feature → 2 kVA VA rating supports moderate load centers without overdesign, improving energy efficiency and reducing upfront cost; the application includes feeders for standalone drives and logic circuits, with measurable improvements in efficiency and spare-part planning. Feature → Aluminum coil reduces weight while maintaining performance, cutting shipping and labor costs during installation and maintenance. Feature → NEMA 3R enclosure enables indoor-outdoor use, expanding installation options in mixed environments and reducing weather-related failure modes. Feature → UL Listed certification provides safety assurance and regulatory compliance for industrial environments, supporting audit readiness and risk management in facility operations.
Get a Quick Quote for a Eaton S60N24S02
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N24S02?
Enquire Now
FAQs
For installation, ensure mounting in a sheltered, accessible location with ventilation adequate for the 115 °C rise rating. The NEMA 3R enclosure supports indoor-outdoor service, while the 6.52 in depth and 13.41 in height fit typical control panels. Use the 511AQ wiring connection per Eaton guidelines to simplify wiring and reduce misconnection risk.
Key specs include single-phase operation at 60 Hz, a 600 V primary, 240 V secondary, and a 2 kVA volt-ampere rating. The transformer uses aluminum coil material, is UL Listed, and is designed for indoor-outdoor use with a 115 °C rise. This makes it suitable for standard automation circuits and small drive or logic loads.
Yes, thanks to the NEMA 3R enclosure and indoor-outdoor weather rating. The rugged housing protects wind, rain, and dust exposure typically encountered at equipment rooms or exterior control cabinets, enabling reliable operation in mixed environments without additional enclosures.
The device is UL Listed, providing a recognized safety standard for electrical equipment in industrial settings. This certification supports factory audits, regulatory compliance, and safer procurement for projects requiring proven reliability in harsh environments.
With a compact 2 kVA rating and aluminum coil for lighter weight, installation labor and shipping costs are reduced. The NEMA 3R enclosure and UL listing reduce downtime risk and maintenance needs, while predictable performance supports longer intervals between part replacements and smoother uptime in OEM builds and service upgrades.
