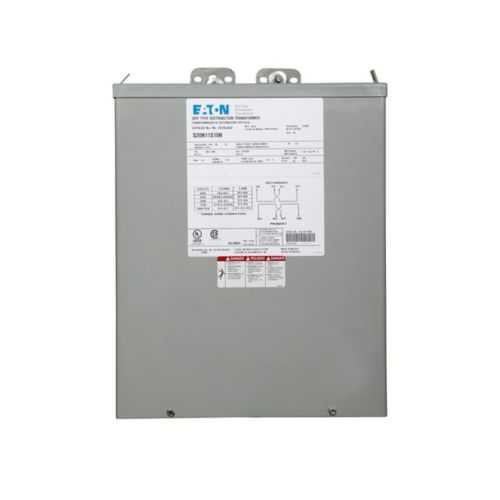

Eaton S60N48S15 General encapsulated transformer - 15 kVA
Part Number: S60N48S15
Quick Summary
The Eaton S60N48S15 general encapsulated transformer provides reliable power isolation for control panels and industrial automation. Engineers often struggle with space, heat, and environmental exposure, making compact yet rugged transformers essential. Certifications vary by region; consult Eaton for CE, UL, and regional approvals documentation. With aluminum coils, 60 Hz single-phase operation, and indoor-outdoor versatility, this part supports reliable, cost-efficient power delivery across low-voltage distribution schemes.
Product Information
Extended Description
S60N48S15 Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, 180, 60 Hz, single-phase, 600 V, 480 V, None, 115 °C rise, 15 KVA, indoor-outdoor, 511AT
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S60N48S15
UPC
786680112461
Product Length/Depth
10.52 in
Product Height
19 in
Product Width
13.38 in
Product Weight
230 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
Contact Manufacturer
Coil material
Aluminum
Design
EP
Frame
180
Tap size
None
Type
General-purpose encapsulated transformer
Wiring connection
511AT
Frequency rating
60 Hz
Phase
Single-phase
Primary voltage
600 V
Secondary Voltage
480 V
Temperature rise
115 °C rise
Volt ampere rating
15 kVA
Weathershield
Indoor-Outdoor
Encapsulated EP design provides rugged protection against dust, moisture, and field wear, reducing maintenance and downtime for critical control panels. Aluminum coil construction improves heat dissipation and corrosion resistance, enabling safer operation in warmer environments and tighter enclosures. The 60 Hz single-phase, 15 kVA rating aligns with common industrial power architectures, simplifying panel design and reducing parts diversity. Wiring is standardized to 511AT with a 180 frame, easing installation, wiring diagrams, and replacement handling. Weathershield capabilities enable indoor-outdoor use, expanding placement options without sacrificing protection or performance. A clear Eaton warranty (25-000) and regional certifications support procurement planning, risk mitigation, and predictable total cost of ownership for automation projects.
Get a Quick Quote for a Eaton S60N48S15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S60N48S15?
Enquire Now
FAQs
Begin by confirming the S60N48S15 is suitable for your voltage and load. Mount on a vibration-damped surface with adequate clearance for heat dissipation. Connect primary to 600 V and secondary to 480 V using the 511AT wiring, following Eaton diagrams. Ensure protection devices match the 15 kVA rating and verify enclosure integrity for indoor-outdoor use. Finally, perform a functional test to validate output stability under expected load conditions.
The transformer operates at 60 Hz in a single-phase configuration with a 600 V primary and 480 V secondary, rated at 15 kVA. Wiring uses the 511AT connection scheme. Plan panel wiring to accommodate the 15 kVA load, observe proper clearances around the enclosure, and ensure compatible overcurrent protection. Aluminum coils support efficient heat management and durability in service conditions.
Yes, the S60N48S15 is specified for indoor-outdoor use (Weathershield). When selecting an enclosure, ensure it provides protection against dust and moisture appropriate for your site, and maintain adequate ventilation to support the 115 °C rise. Use impact-resistant, IP-rated enclosures as needed to meet local regulatory requirements and environmental conditions.
Certifications for this model are managed by Eaton and listed as 'Contact Manufacturer' in the data. For your project, request CE, UL, and region-specific approvals and accompanying documentation from Eaton to ensure compliance with your local electrical codes and procurement standards. Keep the request details tied to your exact installation location and regulatory needs.
The 15 kVA, single-phase transformer supports reliable power delivery with a rugged enclosure and 115 °C rise, reducing unplanned downtime in automation environments. The unit’s durability, combined with the standard warranty (one year from installation or 18 months from shipment) and streamlined sourcing via Eaton, leads to lower maintenance costs and improved uptime across lifetime operation.
