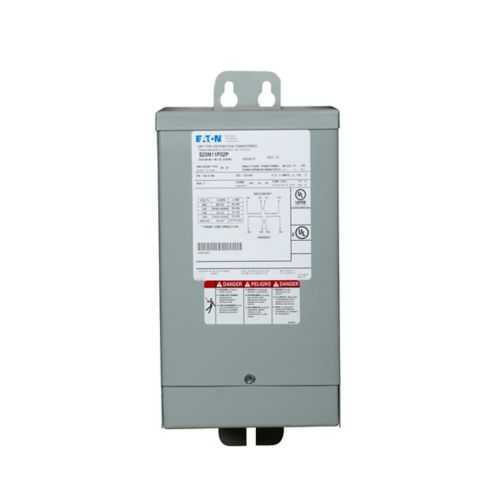

Eaton S65N11S01XCE General-Purpose Transformer - UL Listed
Part Number: S65N11S01XCE
Quick Summary
Eaton S65N11S01XCE general-purpose encapsulated transformer provides reliable power distribution for industrial facilities. In busy plants, engineers need a durable, weather-ready unit that minimizes downtime and simplifies maintenance. This model is UL Listed and CE Marked, with a rugged NEMA 3R enclosure and a 1 kVA single‑phase rating for indoor-outdoor service. With lightweight aluminum winding, 50/60 Hz compatibility, and a 6.52 by 6.37 by 13.41 inch footprint, it fits compact electrical panels while boosting efficiency. For procurement teams, the transformer supports standard spare-part stocking and predictable lifecycle costs, reducing field service time without compromising reliability.
Product Information
Extended Description
S65N11S01XCE Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, NEMA 3R, 67, 50-60 Hz, single-phase, 208 V, 240 V, 400 V, 480 V, 120/240 V, NONE, 115 °C rise, 1 KVA, indoor-outdoor, 160A
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S65N11S01XCE
UPC
786685284019
Product Length/Depth
6.52 in
Product Height
13.41 in
Product Width
6.37 in
Product Weight
46 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
50/60 Hz, CE Marked
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
67
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
160A
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
208 V, 240 V, 400 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
1 kVA
Weathershield
Indoor-Outdoor
Feature: Ep encapsulated construction with aluminum coil delivers rugged durability while keeping weight manageable. Business Impact: improved vibration resistance, lower thermal stress, and easier handling during installation. Application: ideal for control panels in manufacturing floors and outdoor enclosures where weather and dust are concerns. Feature: 1 kVA, single-phase rating with 50-60 Hz compatibility. Business Impact: supports a wide range of control circuits and reduces the number of transformers in spares inventory. Application: motor starters, PLCs, and lighting ballasts in process lines. Feature: Primary voltages of 208-240-400-480 V and secondary of 120/240 V. Business Impact: broad compatibility across regional power standards, minimizing the need for additional step-down equipment. Application: machine tools and distributed control panels in mixed-voltage environments. Feature: NEMA 3R indoor-outdoor enclosure with a 115 °C rise and 46 lb weight. Business Impact: regulatory compliance and reliable operation in variable environments with straightforward mounting. Application: exterior panels, damp indoor spaces, and retrofit installations. Feature: UL Listed and CE Marked with Weathershield Indoor-Outdoor design. Business Impact: regulatory acceptance and cross-border deployment, reducing procurement risk. Application: global plant rollouts and maintenance programs. Feature: Compact footprint with dimensions 6.52 in (L) × 6.37 in (W) × 13.41 in (H) and aluminum winding. Business Impact: saves panel space and enables flexible layouts in crowded electrical rooms. Application: new installations and panel upgrades in compact automation cabinets.
Get a Quick Quote for a Eaton S65N11S01XCE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S65N11S01XCE?
Enquire Now
FAQs
The S65N11S01XCE is a single-phase, 1 kVA encapsulated transformer with a NEMA 3R enclosure and aluminum windings, designed to fit standard control panels. Its compact 6.52 in depth, 6.37 in width, and 13.41 in height allow easy mounting in crowded electrical spaces. Ensure your panel supports 208-480 V primary and 120/240 V secondary distributions and confirm clearances per local electrical codes.
Key ratings include single-phase operation at 50-60 Hz, primary voltages of 208 V, 240 V, 400 V, or 480 V, secondary voltage 120/240 V, and a 1 kVA VA rating. The device has a 115 °C rise, weighs 46 lb, and uses aluminum coil construction. This combination supports compact, rugged power conversion for control circuits and small motors.
Yes. The transformer uses a NEMA 3R enclosure rated for indoor-outdoor service and a Weathershield designation indicating suitability for exterior panels and damp indoor spaces. With UL Listed and CE Marked certifications, it meets regulatory expectations for outdoor installations in appropriate climates.
The S65N11S01XCE is UL Listed and CE Marked, signaling compliance with essential safety and performance standards for North American and international deployments. These certifications help ensure safe operation in industrial facilities, simplify procurement for multinational projects, and reduce risk during audits and regulatory reviews.
Warranty is 25-000 per Eaton policy, offering one year from installation or eighteen months from shipment, whichever occurs first. Regular maintenance should focus on ensuring proper ventilation, checking enclosure seals in outdoor installations, and verifying wiring connections remain within 160 A rating. This reduces downtime and extends transformer's lifecycle cost efficiency.
