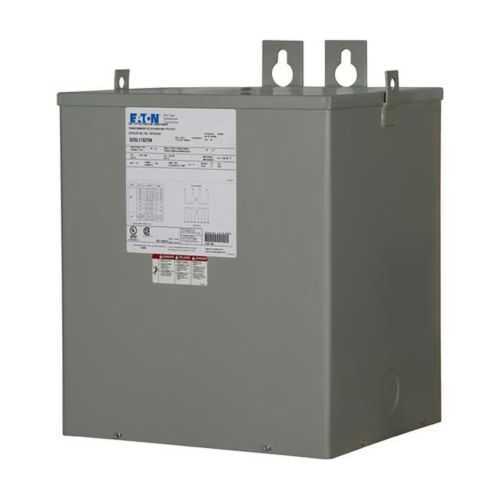

Eaton S65N11S03XCE General Transformer - CE Marked
Part Number: S65N11S03XCE
Quick Summary
Eaton S65N11S03XCE general transformer provides reliable voltage conversion for control panels and industrial circuits. Engineers often struggle with space, heat, and compliance when selecting a compact, rugged transformer for enclosed electrical rooms. This model is CE Marked and designed for indoor-outdoor use, featuring a 115 °C rise to balance performance and safety in demanding environments. The 3 kVA rating and single-phase configuration simplify wiring and enable straightforward integration with 208–480 V primary supplies and 120/240 V secondary outputs. With Eaton’s warranty policy and standardized wiring connections, procurement is streamlined, maintenance is predictable, and downtime is minimized in mission-critical automation and power distribution applications.
Product Information
Extended Description
S65N11S03XCE Eaton: Eaton General purpose encapsulated transformer, EP, aluminum, 177, 50-60 Hz, single-phase, 208 V, 240 V, 400 V, 480 V, 120/240 V, None, 115 °C rise, 3 KVA, indoor-outdoor, 160A03CE
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S65N11S03XCE
UPC
786680112300
Product Length/Depth
9.89 in
Product Height
16 in
Product Width
10.38 in
Product Weight
127 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
Contact Manufacturer
Catalog Notes
CE Marked.
Coil material
Aluminum
Design
EP
Frame
177
Tap size
None
Type
General-purpose encapsulated transformer
Wiring connection
160A03CE
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
208 V, 240 V, 400 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
3 kVA
Weathershield
Indoor-Outdoor
Commercial Distribution, Transformers, Volume 2, Tab 2
Eaton Specification Sheet - S65N11S03XCE
Selling Policy 25-000 - Distribution and Control Products and Services
Feature aluminum coil with EP design offers robust performance while keeping weight manageable for mounting in compact enclosures. This translates into lower shipping costs and easier field handling, reducing installation time in control panels and machine centers. Business impact includes improved total cost of ownership and faster time-to-value for new automation deployments. Application context spans machine tools, conveyors, and distributed control systems where reliable voltage conversion is essential. Feature broad primary and secondary voltage support—208–480 V primary and 120/240 V secondary—coupled with a 50–60 Hz rating. Benefit is universal compatibility, fewer part numbers, and streamlined procurement for OEMs and industrial end users, enabling quicker retrofits and standardized panel wiring.
Get a Quick Quote for a Eaton S65N11S03XCE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S65N11S03XCE?
Enquire Now
FAQs
The transformer has dimensions of 9.89 in L x 10.38 in W x 16 in H and weighs 127 lb, suitable for standard panel spaces. Plan for mounting in rugged enclosures with access to the 208–480 V primary connections and the 120/240 V secondary leads. Use the 160A03CE wiring connection for clean, secure terminations, and allow clearance for heat dissipation given the 115 °C rise rating.
The 3 kVA rating provides ample headroom for most control panel loads and automation circuits, while the 50-60 Hz frequency range aligns with common regional power supplies. The single-phase configuration simplifies wiring, reduces impedance and voltage drop in shorter runs, and supports reliable operation for machines, conveyors, and process equipment requiring stable secondary 120/240 V output.
Yes. Rated for indoor-outdoor use under Eaton's Weathershield specification, the transformer is designed to withstand varied environmental conditions. The aluminum coil and encapsulated EP design contribute to durability, while the 115 °C rise rating ensures thermal resilience under peak loading in exposed or semi-exposed installations.
The catalog notes indicate CE Marked certification, supporting compliance with essential safety requirements in many regions. For additional certifications beyond CE, contact the manufacturer to confirm current registrations and any region-specific approvals relevant to your site requirements.
The Eaton policy provides a one-year warranty from installation or eighteen months from shipment, whichever occurs first. This warranty, along with rugged construction and durable aluminum coil, reduces downtime and maintenance costs, contributing to a lower total cost of ownership for long-term automation projects and power distribution installations.
