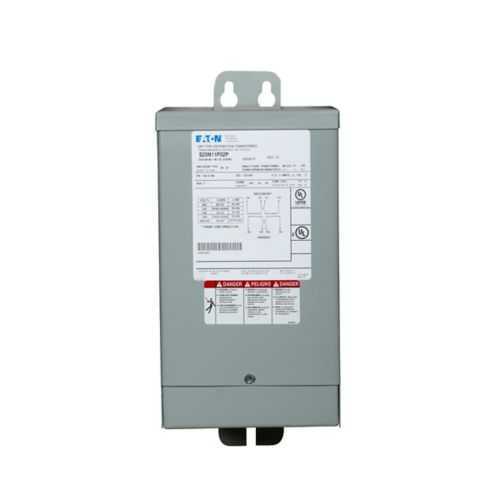

Eaton S84N11E01X General-Purpose Transformer - UL Listed
Part Number: S84N11E01X
Quick Summary
The Eaton S84N11E01X General-Purpose Transformer steps down 380–480 V to 120/240 V for control panels and machines. Facilities often struggle to find compact, durable transformers that perform reliably in mixed indoor-outdoor environments while meeting applicable codes. This unit gains UL Listed certification and a rugged NEMA 3R enclosure, plus electrostatic shielding for EMI control, offering durable service in harsh settings. With 1 kVA capacity and aluminum windings, it delivers efficient, low-loss power for modern automation. The simple, factory-wired configuration reduces installation time, while its indoor-outdoor rating supports retrofit projects and new builds alike, helping maintain uptime and improve electrical reliability.
Product Information
Extended Description
S84N11E01X Eaton: Eaton, general purpose encapsulated transformer, ep, single-phase, pv: 380/440 400/460 415/480v, taps: none, sv: 120/240v, 115°c, 1 kva, al windings, elec. shield, frame: 67, indoor-outdoor.
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S84N11E01X
UPC
786680053559
Product Length/Depth
6.52 in
Product Height
13.41 in
Product Width
6.37 in
Product Weight
43 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
50/60 Hz
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
67
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
590A
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
1 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
Encapsulated construction protects windings and enables reliable operation in dirty, humid or outdoor environments. The epoxy encapsulation along with electrostatic shielding minimizes moisture ingress and EMI, improving safety and performance. This translates to longer service intervals and reduced maintenance for critical control circuits in manufacturing lines. Aluminum coil material reduces weight and corrosion exposure, easing installation and handling in tight spaces. The rugged construction pairs with an indoor-outdoor Weathershield to withstand temperature swings and moisture, enabling safe panel mounting near doors, docks, or outdoor equipment. With a 1 kVA rating and single-phase 50–60 Hz performance, the transformer supports typical control and automation loads without oversizing. Primary voltages span 380–480 V while providing a 120/240 V secondary, which simplifies wiring and stocking for multi-voltage facilities. The NEMA 3R enclosure ensures protection for indoors and outdoors, while UL Listing confirms compliance with common electrical codes. The frame size 67 and a 590A wiring connection support straightforward mounting and integration with standard control panels. A 115 °C rise informs thermal design, helping reliable operation in packed rooms, while the fixed taps and 50/60 Hz catalog notes reduce field engineering. Practical ROI benefits include EMI control from electrostatic shielding and weatherized installation for retrofit projects, improving uptime and safety.
Get a Quick Quote for a Eaton S84N11E01X
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S84N11E01X?
Enquire Now
FAQs
Install the S84N11E01X in a protected, ventilated enclosure using the pre-wired connections specified by Eaton. With a 67 frame and 590A wiring option, align mounting with existing control panels, ensure proper clearance for heat dissipation, and follow UL guidelines for indoor-outdoor installations. No taps are required, which simplifies the wiring process and reduces field modification risk.
The transformer accepts primary voltages of 380, 400, 415, 440, 460, or 480 V and provides a 120/240 V secondary. It operates at 50–60 Hz and is rated for 1 kVA in a single-phase configuration, making it suitable for standard automation and control circuits.
Yes. It features an indoor-outdoor rating and a rugged NEMA 3R enclosure, plus UL Listed certification for outdoor reliability. This combination supports outdoor-mounted panels or exposed installations while maintaining safety and compliance in harsh environments.
The S84N11E01X is UL Listed and electrostatically shielded, which reduces EMI concerns in sensitive equipment. The NEMA 3R enclosure and aluminum windings enhance durability and corrosion resistance, while the 50/60 Hz catalog notes ensure compatibility with regional electrical standards and field installations.
With 1 kVA capacity and robust encapsulated construction, this transformer reduces downtime through reliable operation and fewer field adjustments. Aluminum windings, EMI shielding, and a weather-resistant enclosure lower maintenance needs, and UL listing simplifies regulatory compliance, delivering predictable lifecycle costs for control panels and equipment.
