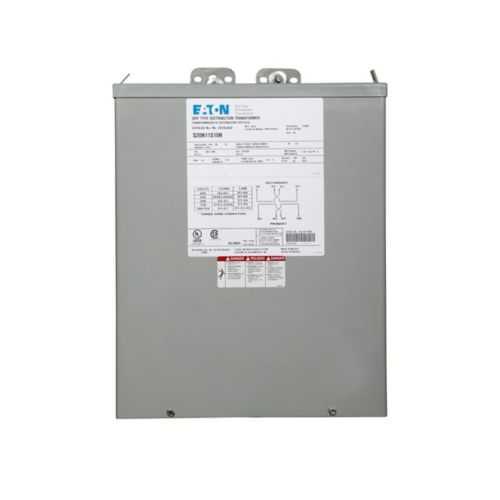

Eaton S84N11E10X General-Purpose Transformer - UL Listed
Part Number: S84N11E10X
Quick Summary
S84N11E10X is a general-purpose encapsulated transformer designed to power control panels and industrial equipment. Engineers frequently wrestle with space constraints, enclosure compatibility, and reliable operation in demanding environments. This model ships with UL Listed certification and a rugged NEMA 3R enclosure, supporting indoor-outdoor installations and safer service. The 10 kVA rating, aluminum windings, and electrostatic shield deliver strong efficiency, reduced stray currents, and easier compliance testing. For panel builders and maintenance teams, the combination of compact framing, simple wiring connection, and robust protection translates into faster installations, lower lifecycle costs, and improved uptime in critical automation applications.
Product Information
Extended Description
S84N11E10X Eaton: Eaton, general purpose encapsulated transformer, ep, single-phase, pv: 380/440 400/460 415/480v, taps: none, sv: 120/240v, 115°c, 10 kva, al windings, elec. shield, frame: 180, indoor-outdoor.
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S84N11E10X
UPC
786680057854
Product Length/Depth
10.52 in
Product Height
19 in
Product Width
13.38 in
Product Weight
202 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
50/60 Hz
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
180
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
590A
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
10 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
Feature: General specifications include single-phase operation and a 10 kVA rating. Business impact: Enables compact, scalable power for mid-size control panels, reducing overdesign and installation time. Application: Suitable for machine controls, panel boards, and automation cabinets across industrial facilities. Feature: Primary voltage range 380–480 V and secondary 120/240 V. Business impact: Provides flexibility to support multiple European and North American supply configurations, simplifying procurement and stocking. Application: Power distribution for conveyors, robotic cells, and automated processes. Feature: Aluminum windings and an electrostatic shield. Business impact: Improve efficiency and reduce EMI, enhancing performance of sensitive automation circuits and simplifying compliance testing. Application: Control panels in noisy manufacturing environments and shielded power supplies. Feature: NEMA 3R enclosure with indoor-outdoor capability. Business impact: Enables outdoor installation and weather protection, reducing separate enclosure requirements and labor costs. Application: Outdoor-equipped panels, sub-panlets in warehouses, and process automation cabinets. Feature: 50/60 Hz catalog notes; UL Listed certification. Business impact: Ensures regulatory compliance and consistent performance across regions, supporting maintenance planning. Application: Global deployments with standard power distribution and service life. Feature: Frame 180 and wiring connection rated at 590A facilitate fitment in standard electrical enclosures and easy interconnects. Business impact: Streamlines installation, reduces field modification, and supports quick commissioning. Application: Retrofit projects and new builds in process lines and packaging machinery.
Get a Quick Quote for a Eaton S84N11E10X
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S84N11E10X?
Enquire Now
FAQs
The S84N11E10X is designed for indoor-outdoor installations due to its NEMA 3R enclosure and UL Listed safety certification. It suits control panels and automation cabinets in industrial facilities, including outdoor substations and harsh manufacturing environments. Its 10 kVA rating and wide primary range support versatile panel designs and scalable power distribution.
Key specifications include single-phase operation, 10 kVA VA rating, primary voltages of 380–480 V, secondary of 120/240 V, frequency range of 50–60 Hz, aluminum windings, electrostatic shield, and indoor-outdoor capability with a NEMA 3R enclosure. The frame size is 180, with wiring connection rated at 590A, contributing to straightforward integration in existing systems.
Yes, the S84N11E10X is UL Listed, indicating compliance with recognized safety standards for electrical equipment. Its NEMA 3R enclosure supports weather-resistant installation, making it suitable for both indoor and outdoor applications. This combination helps streamline procurement, installation, and ongoing maintenance within regulated industrial environments.
The transformer combines a compact footprint with a 10 kVA rating and a frame 180, enabling easy mounting in standard electrical enclosures. Aluminum windings and the electrostatic shield minimize EMI and heat, while the 380–480 V primary and 120/240 V secondary voltages reduce wiring complexity. This leads to quicker commissioning and fewer field modifications in retrofit projects.
The unit’s robust enclosure, UL listing, and shielded design contribute to dependable operation in challenging environments, lowering unplanned downtime. Aluminum windings resist corrosion, and the 50–60 Hz catalog compatibility supports cross-regional deployments. Together, these features reduce troubleshooting time, extend service life, and simplify spare parts planning for multi-site facilities.
