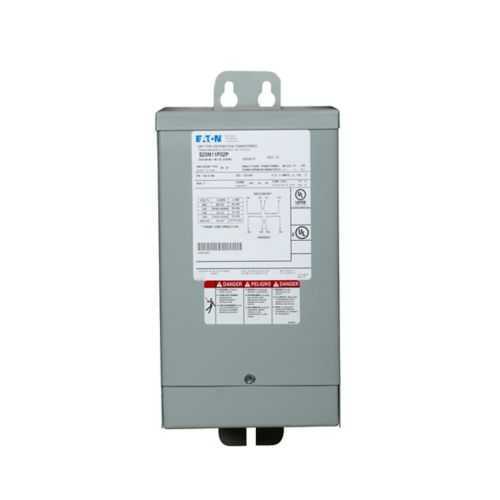

Eaton S84N11E16X Encapsulated Transformer - UL Listed
Part Number: S84N11E16X
Quick Summary
The Eaton S84N11E16X encapsulated transformer provides dependable power for industrial control panels. Engineers often struggle with space constraints and outdoor exposure when locating transformers near feeders. UL Listed safety certification supports reliability and regulatory compliance in industrial settings; the enclosure is rated for indoor-outdoor use and the unit weighs 66 lb with a compact footprint. Designed for 50/60 Hz operation and a 1.5 kVA rating, it offers flexible primary voltages up to 480 V and a 120/240 V secondary, helping standardize power across machines while reducing wiring complexity and inventory needs.
Product Information
Extended Description
S84N11E16X Eaton: Eaton, general purpose encapsulated transformer, ep, single-phase, pv: 380/440 400/460 415/480v, taps: none, sv: 120/240v, 115°c, 1.5 kva, al windings, frame: 176, indoor-outdoor
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S84N11E16X
UPC
786680063008
Product Length/Depth
8 in
Product Height
14.25 in
Product Width
7.69 in
Product Weight
66 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
50/60 Hz
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
176
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
590A
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
1.5 kVA
Weathershield
Indoor-Outdoor
Feature: Compact, rugged encapsulated design with an 8 in length, 14.25 in height, and 7.69 in width footprint plus 66 lb weight. Business Impact: Frees panel space, simplifies mounting, and lowers shipping and handling costs. Application: Ideal for compact control cabinets in manufacturing lines and distributed power installations. Feature: Aluminum windings and a 115 °C rise capability. Business Impact: Durable performance under higher ambient temperatures, improving reliability and reducing overcooling requirements. Application: Environments with limited cooling or elevated heat load from actuators and drives. Feature: Primary voltage range to 380–480 V and 50–60 Hz operation. Business Impact: Flexible sourcing across regional grids without rewiring, enabling faster deployments. Application: Machine tools, automation panels, and distributed power blocks. Feature: Secondary 120/240 V output for common control circuits. Business Impact: Streamlined integration with standard 120/240 V devices, reducing adapter parts and field spares. Application: Control circuits, sensors, and actuators in industrial equipment. Feature: NEMA 3R enclosure supporting indoor-outdoor use with an EP design. Business Impact: Weather resistance and installation versatility lower site constraints and protect critical power infrastructure. Application: Indoor facilities and outdoor enclosures in harsh environments; UL Listed provides regulatory assurance.
Get a Quick Quote for a Eaton S84N11E16X
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S84N11E16X?
Enquire Now
FAQs
The S84N11E16X weighs 66 lb and has an 8 in L x 14.25 in H x 7.69 in W footprint with a frame 176. It is designed for simple panel mounting and can be installed in standard enclosures. Use proper hardware compatible with 176 frame units and ensure clearance for ventilation and wiring connections rated at 590A.
This unit is a single-phase transformer with primary voltage options of 380, 400, 415, 440, 460, or 480 V and a secondary of 120/240 V. It is rated at 1.5 kVA with a 50–60 Hz frequency rating and aluminum windings. The wiring connection is 590A, and the model supports a 115 °C temperature rise.
Yes. The transformer features an indoor-outdoor NEMA 3R enclosure suitable for weather-exposed installations. Its EP design and weather-resistant construction enable reliable operation in both indoor facilities and outdoor environments, aligning with industrial automation needs.
The S84N11E16X is UL Listed, ensuring compliance with safety standards for electrical equipment. Eaton provides a warranty of one year from installation or eighteen months from shipment, whichever occurs first, offering assurance on performance and service.
Typical applications include power distribution for control panels, machines, and automation systems requiring reliable 120/240 V control circuits from higher voltage supplies. The 1.5 kVA rating, aluminum windings, and compact footprint deliver efficiency, reduced space needs, and easier sourcing for industrial automation projects, improving ROI through lower maintenance and simpler installation.
