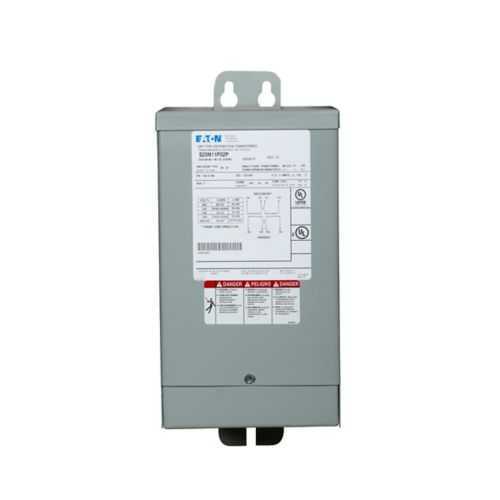

Eaton S84N11E16XCE General-Purpose Transformer - UL Listed
Part Number: S84N11E16XCE
Quick Summary
Eaton General-Purpose Transformer S84N11E16XCE delivers reliable single-phase isolation for control panels. This design addresses the common pain points of mismatched voltages, heat buildup, and enclosure constraints that disrupt uptime and escalate maintenance. It comes UL Listed, CE Marked, and built to a NEMA 3R enclosure for indoor-outdoor use, aligning with both North American and European standards. In practice, this transformer supports robust power management in industrial panels while offering an efficient, compact footprint suitable for panel-mounted installations and process automation.
Product Information
Extended Description
S84N11E16XCE Eaton: Eaton, general purpose encapsulated transformer, ep, single-phase, pv: 380/440 400/460 415/480v, taps: none, sv: 120/240v, 115°c, 1.5 kva, al windings, frame: 176, indoor-outdoor.
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
S84N11E16XCE
UPC
786680049538
Product Length/Depth
8 in
Product Height
14.25 in
Product Width
7.69 in
Product Weight
66 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
50/60 Hz, CE Marked
Coil material
Aluminum
Design
EP
Enclosure
NEMA 3R
Frame
176
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
590A
Frequency rating
50-60 Hz
Phase
Single-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
120/240 V
Temperature rise
115 °C rise
Volt ampere rating
1.5 kVA
Weathershield
Indoor-Outdoor
Feature: 1.5 kVA single-phase rating enables a compact footprint with sufficient headroom for control circuits. Business Impact: Reduces panel space and wiring complexity, lowering installation time and enclosures costs. Application: Ideal for machine controls and control panels in process automation environments. Feature: Aluminum windings enhance thermal performance and corrosion resistance. Business Impact: Improves reliability in variable ambient conditions and reduces maintenance cycles. Application: Indoor-outdoor installations where exposure and heat are concerns. Feature: NEMA 3R enclosure with indoor-outdoor capability. Business Impact: Enables outdoor installation without additional weatherproofing, reducing site prep costs. Application: Outdoor panels, switchgear rooms, and rugged industrial environments. Feature: 50-60 Hz operation with 380–480 V primary and 120/240 V secondary. Business Impact: Broad compatibility with global mains, enabling cross-border deployments and standardized inventories. Application: Global manufacturing lines and mixed-supply facilities. Feature: UL Listed and CE Marked for compliance and faster procurement. Business Impact: Simplifies validation, reduces risk, and accelerates approvals in diverse regulatory regimes. Application: Regulatory-compliant panel builds and vendor-standard transformer inventories.
Get a Quick Quote for a Eaton S84N11E16XCE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton S84N11E16XCE?
Enquire Now
FAQs
The S84N11E16XCE is a single-phase, 1.5 kVA transformer designed for general control-panel use. It supports primary voltages from 380 to 480 V and provides a 120/240 V secondary, making it compatible with most PLCs, relays, and motor controllers. Its dimensions (8 in L, 14.25 in H, 7.69 in W) and 590A wiring connection simplify mounting in standard panel cavities.
Key ratings include a 1.5 kVA volt-ampere rating, single-phase, primary voltages of 380–480 V, and a 120/240 V secondary. It operates at 50–60 Hz with an 115 °C rise and uses aluminum windings. This combination supports reliable power delivery for control circuits while maintaining temperature safety margins.
Yes. It features a NEMA 3R enclosure design and is rated for indoor-outdoor use (Weathershield Indoor-Outdoor). This makes it well-suited for outdoor panels, equipment cabinets, and exposed environments typical in industrial facilities, without requiring additional weatherproof enclosures.
The S84N11E16XCE is UL Listed and CE Marked, aligning with U.S. safety standards and European compliance requirements. This combination reduces regulatory risk, streamlines procurement, and supports cross-border deployments. The enclosure and construction also meet industry expectations for rugged, long-life operation in demanding environments.
With aluminum windings and a robust NEMA 3R enclosure, this transformer offers improved thermal performance and corrosion resistance, reducing maintenance intervals in harsh environments. The 1.5 kVA rating provides efficient power for control circuits, contributing to lower energy waste. A standard 1-year warranty (18 months from shipment) further mitigates lifecycle risk and supports predictable TCO.
